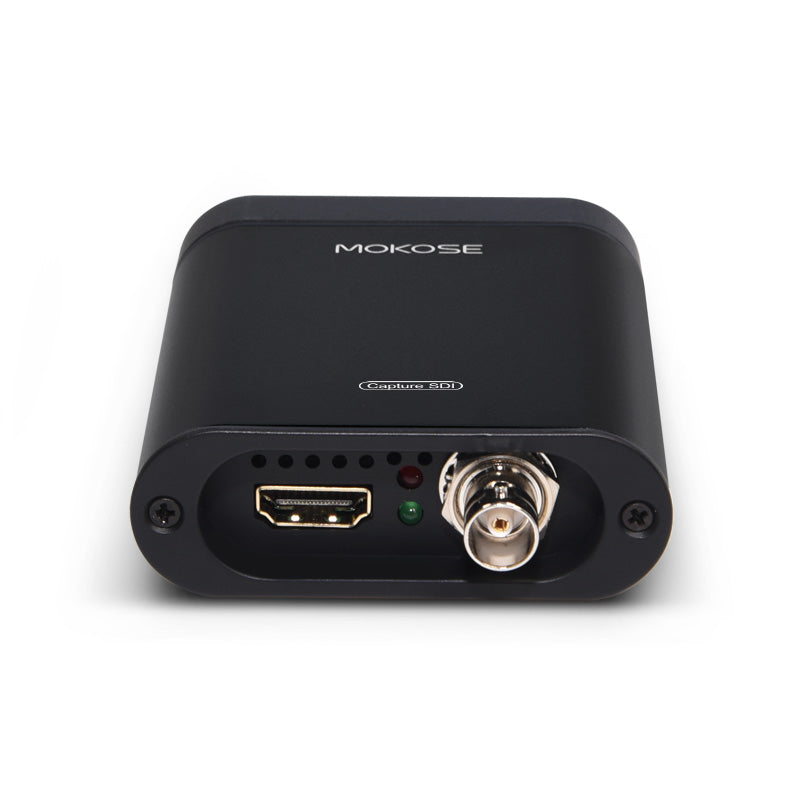

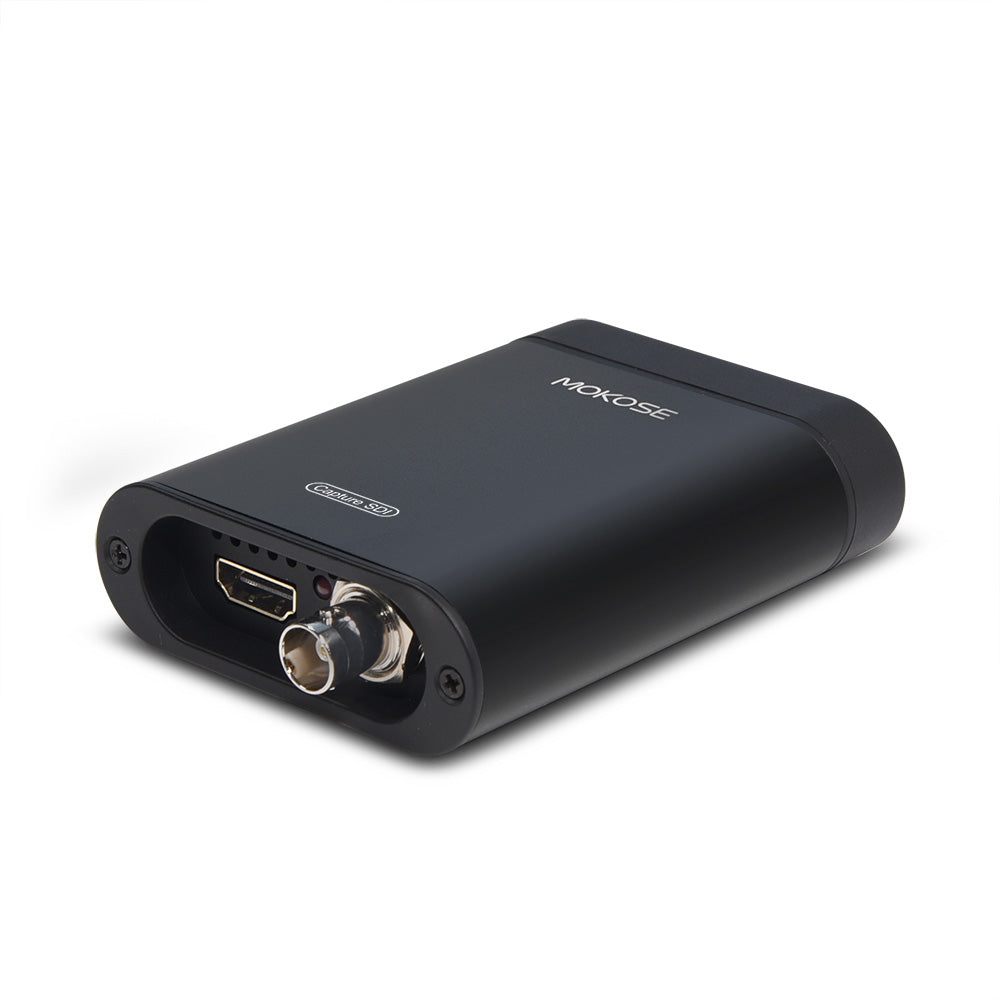

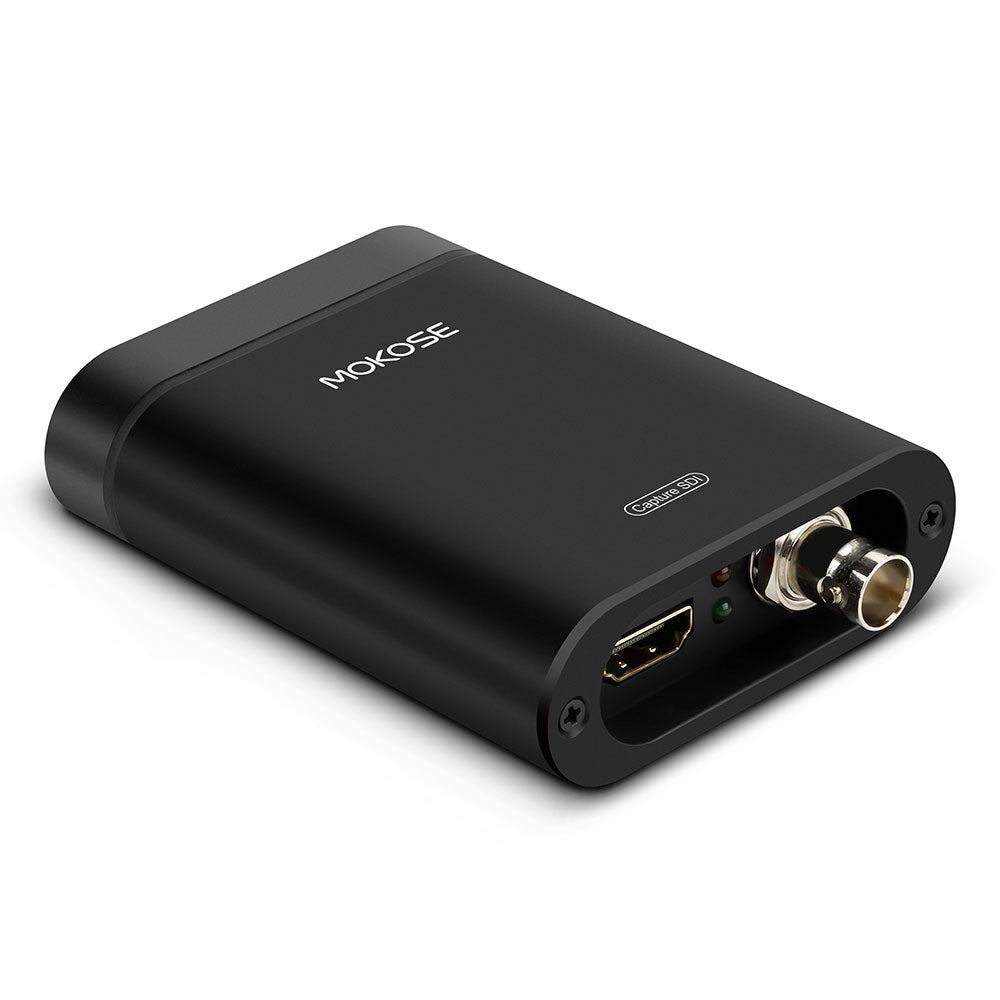

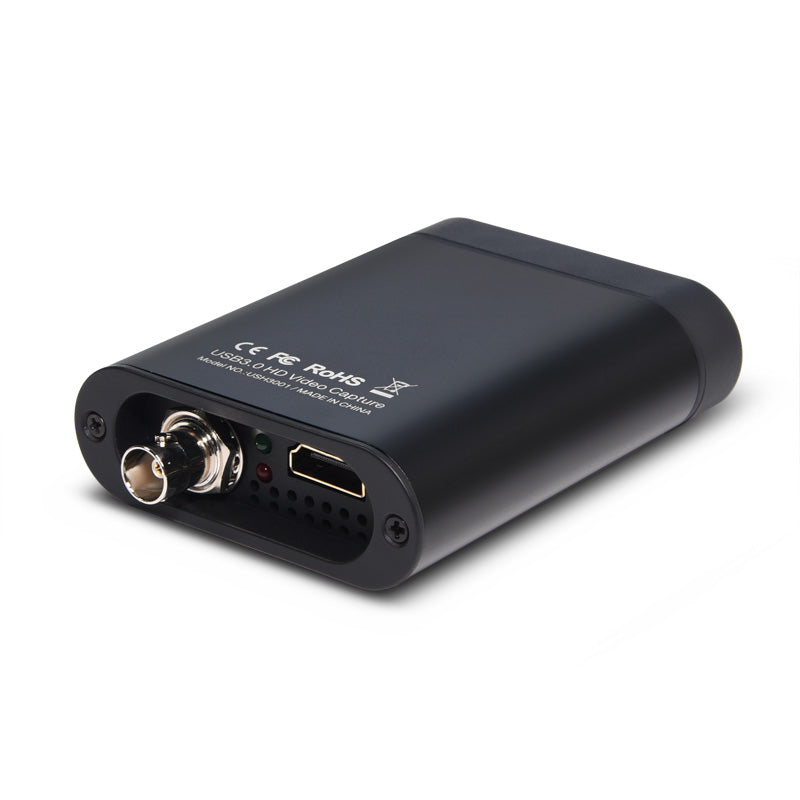

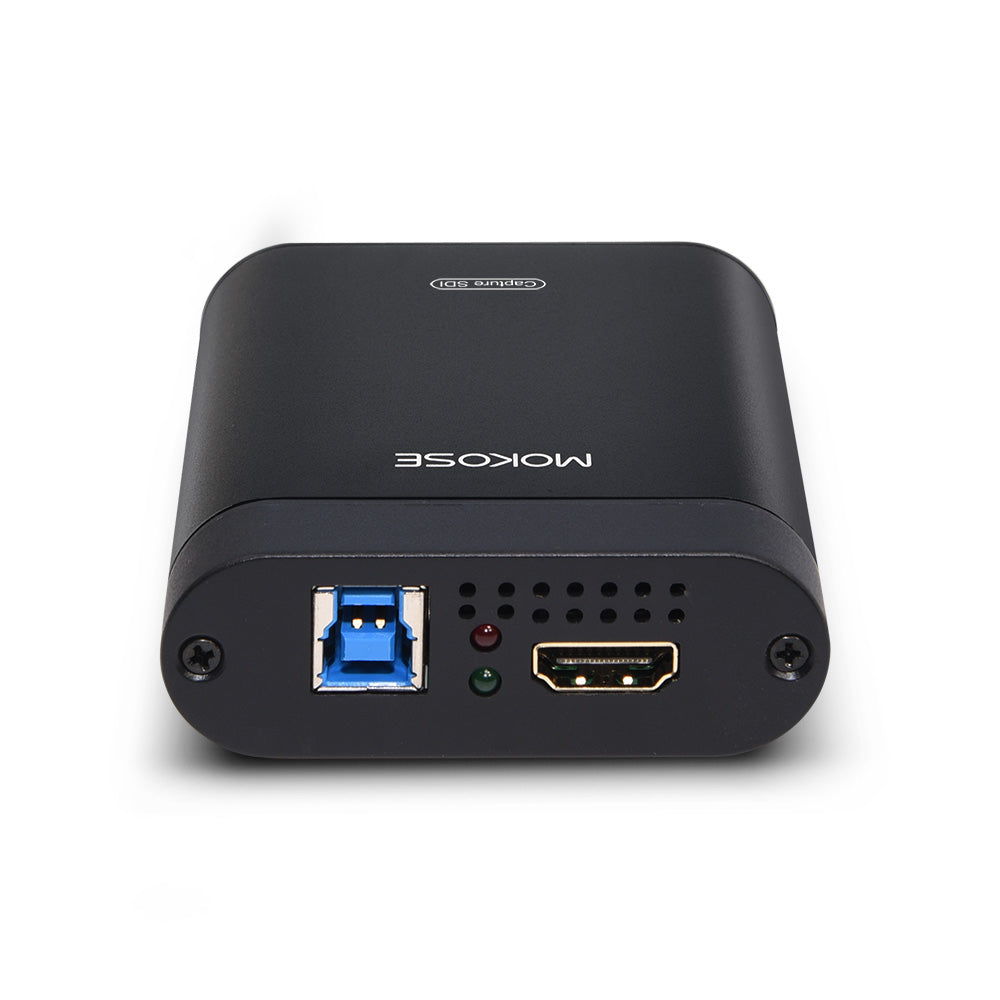

- It is a PRO USB external HDMI video capture grabber card device for graphics capture,live streaming, recording on your laptop, PC. Free Driver, A driver included with system (Windows, Linux, OS X) ensures plug and play compatibility, Capture one single channel HDMI or SDI video signals.
- 1080p/60fps full HD & UAC and UVC ,The UAC is compatible with HDMI audio capture and audio output ,The converter Support HDMI input HDMI output(Loop Thru).
- It compatible with Windows 7,8,10, Linux, OS X (Mac) operating systems. Size: 99.6x70x24mm (L/W/H, mm). Model NO.:USH3001
- Multiple dongles can be used on one PC. You can use 2 dongles set up dual hdmi / SDI capture or more dongles set up multi capture . For the copyright protection, The user shall not use the device to capture the HD output of blue ray player.
- USB3.0, 360MB/s transmit bandwidth compatible with USB 2.0 , 3.0, Low latency game capture adapter for TV,Camera, dslr, Xbox One, Xbox 360, PS4 and Wii U(unencrypted HDMI), Support Live streaming to youtube, facebook, twitch, twitter and etc.

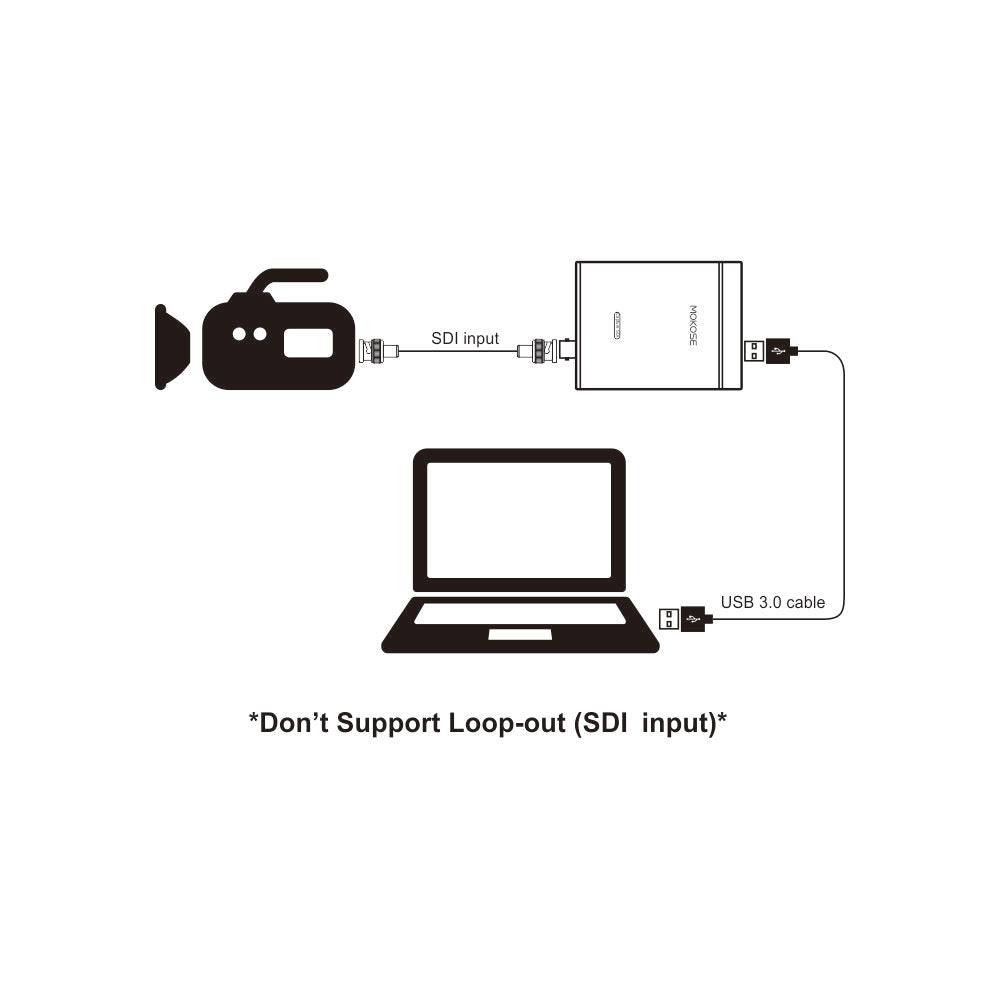

1. It can capture one single channel HD or SDI video signals.
2. The input and output video signal can reach 1080p/60 Hz.
3. It is compatible with UVC video capture and YUV 422 video output.

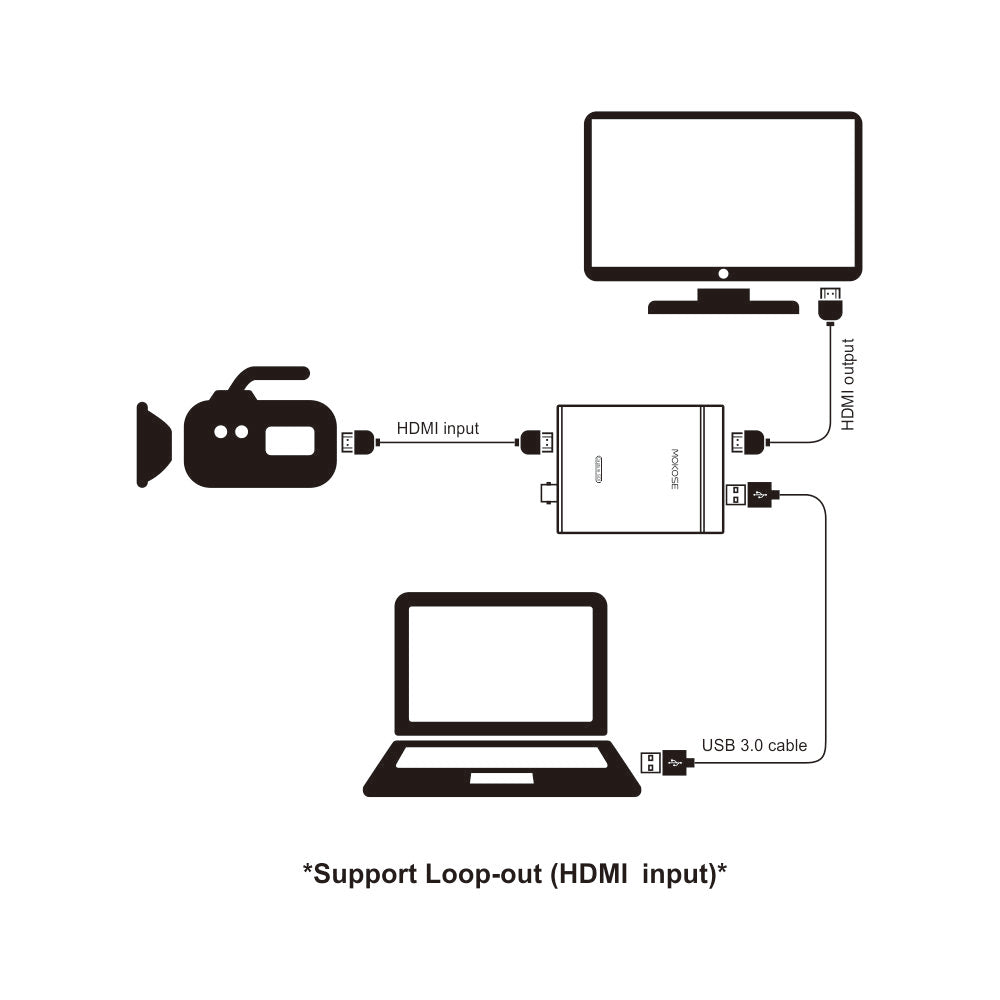

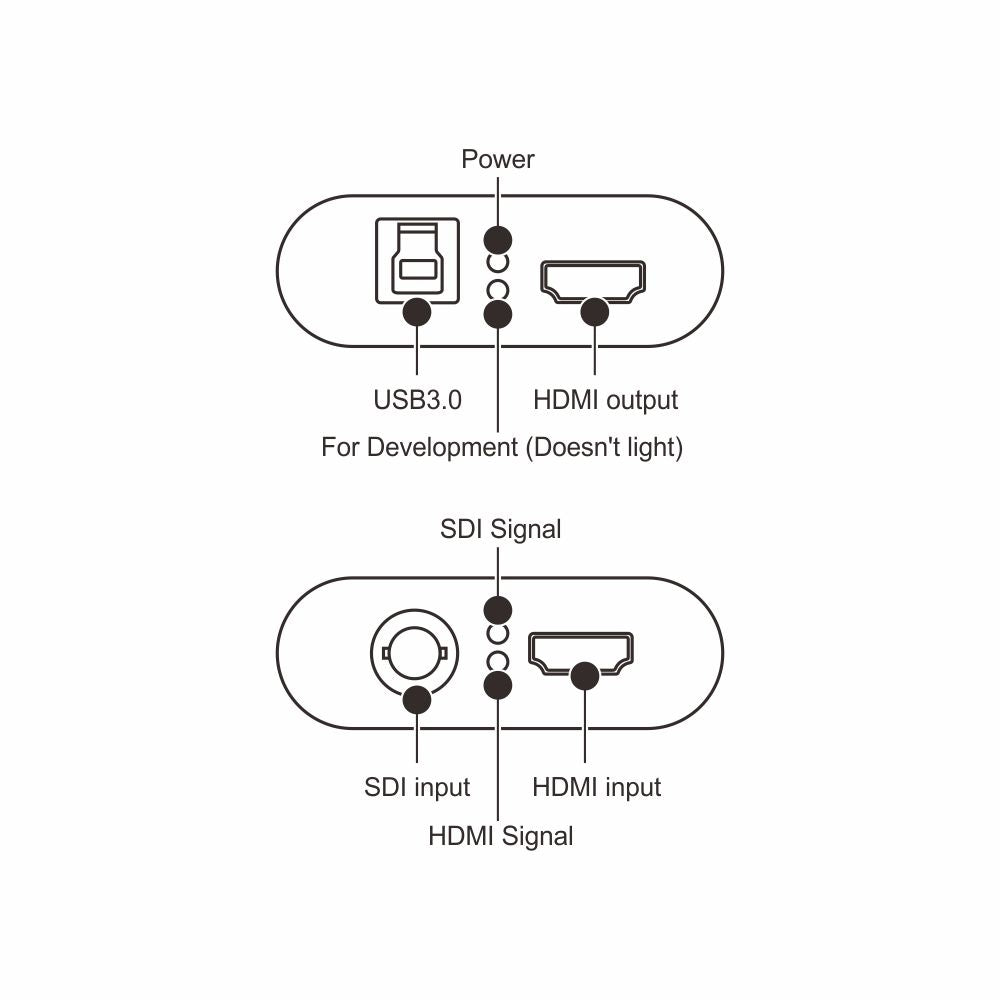

4. The UAC is compatible with HDMI audio capture and audio output, Support HDMI input HDMI output.
5. It doesn’t need to install a driver, and it is truly PnP.
6. It is compatible with Windows 7, 8, 10, Linux, OS X (Mac) operating systems.
7. Size: 99.6x70x24mm (L/W/H, mm).
8. USB3.0, 360MB/s transmit bandwidth compatible with USB 2.0.
9. The process of video and audio is done by the dongle and will requires little CPU power.
10. It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
11. It supports the image adjustment features, like brightness, contrast, hue and saturation.
12. Multiple dongles can be used on one PC.
13. Firmware can be updated through USB port.
14. Auto detect input video format 1920x1080, 1920x960, 1680x1050, 1280x720, 1024x768, 960x540, 850x480,720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360.
You can use any 3rd party software to capture or stream your video source:
Adobe Flash Media Live Encoder (Windows)
OBS Studio (Windows,Linux,OS X) VLC (Windows, Linux)
Potplayer (Windows )
Wirecast (Windows OS X)
Quicktime (OS X) and etc.

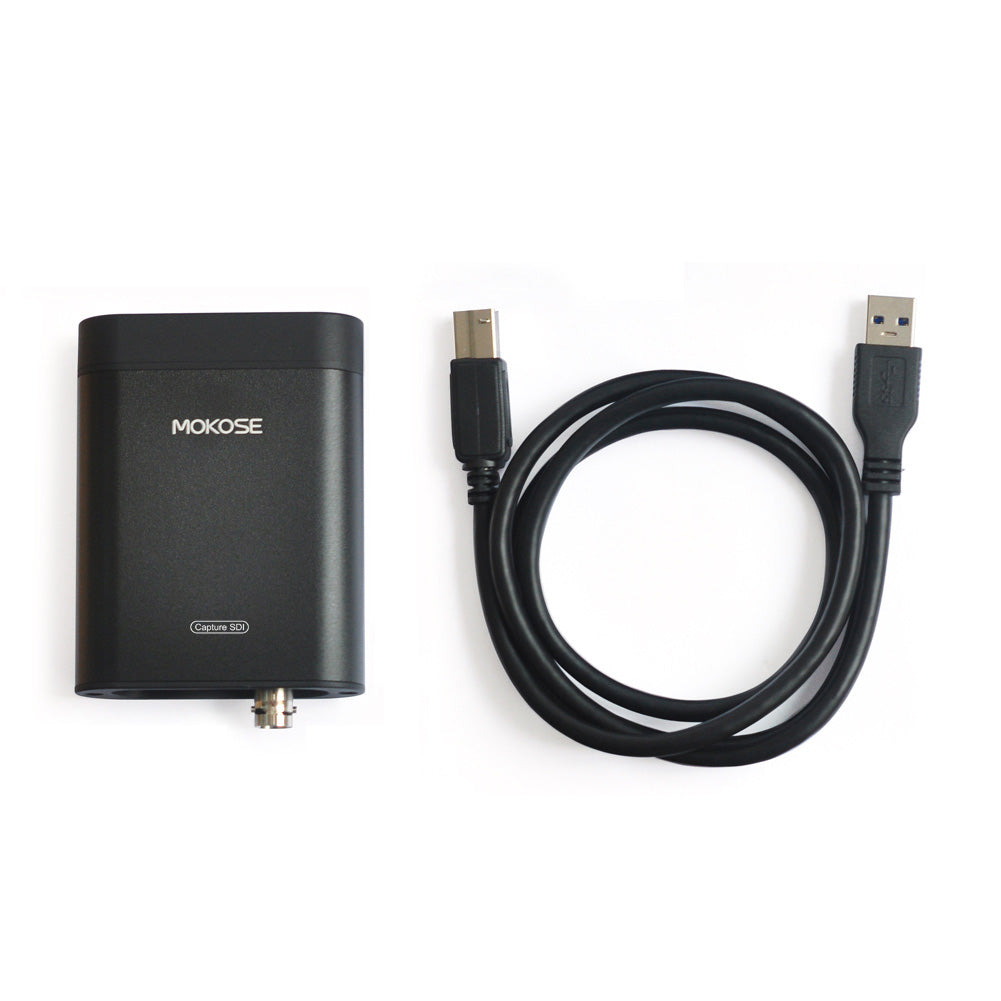

1 x Capture Dongle
1 x USB Cable
1 x User Manual
