Features:
1. Support Connect multiple dongles to one machine
2. Enable the up/down conversion of video resolution, frame rate and audio sampling rate
3. Support brightness, contrast, hue, saturation, and other screen adjustment functions
4. The HDMI / SDI video capture meets UVC standard, support YUV 4:2:2 (YUY2) or RGB 4:4:4 (RGB24) video output
5. The HDMI / SDI video capture meets UAC standard and 48KHz PCM stereo audio output
6. The video processing engine can be updated via firmware without changing the hardware.
7. Automatically detect and de-interlace signals
8. Reliable and Stable: 64MB DDR2 Onboard memory, it can effectively conduct video frame buffer.
Pass through 7x24h continuous high load tests in high and low temperatures (0-50 degrees)
9. Easy to Use: Need to install drivers in Windows, The PCI-E interface can't supporting hot plug.
Compatibility:
1. Compatible with various chipsets (Intel, Renesas, ASMedia, Fresco Logic),
2. Compatible operating systems: Windows (7, 8, 10)
3. Support APIs, such as Windows: DirectShow, DirectSound, Linux: V4L2, ALSA, OS X: QuickTime
4. Support software including Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VLC , Wirecast , OBS，Amcap，Potplayer，vMix，XSplit，Livestream，Skype and etc.
Excellent Video Processing:
1. Support up to 1920x1080P 60FPS (CVT-RB) Video Input
2. Video output support up to 1920x1080P 60FPS in YUY2
3. Video output support up to 1920x1080P 60FPS in RGB24
4. The process of video and audio is done by the dongle and will not occupy CPU.
Connection
Host Interface:PCI-E, 300-350MB/s throughput

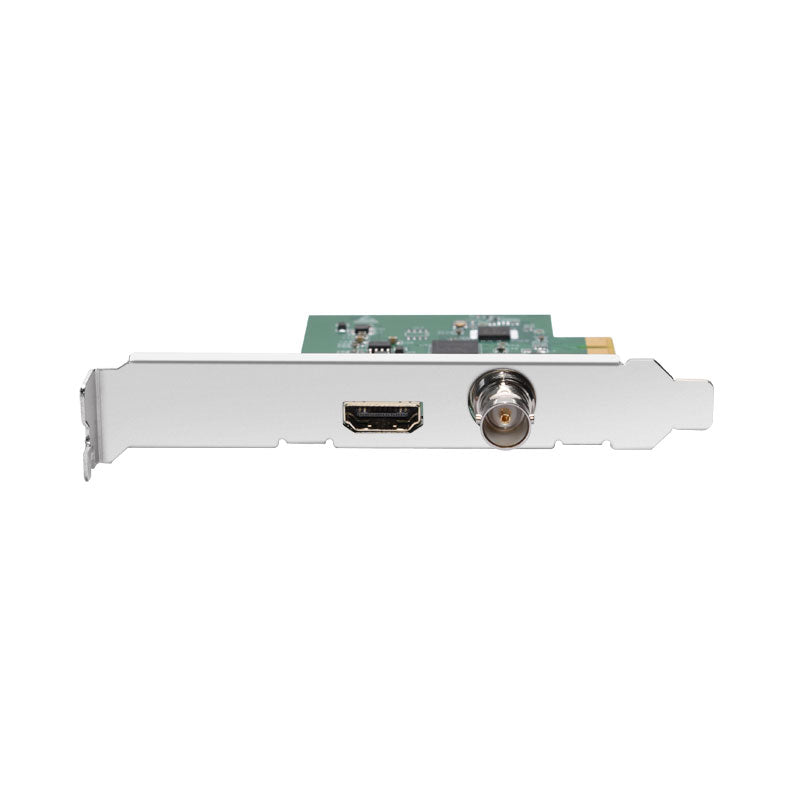

Input Interface:1 HDMI interface/1 SDI interface
Video Input:1080P/60HZ HD HDMI signal or SDI signal
HDMI /SDI Audio Input
Standard
HDMI Input Formats: It meets HDMI 1.4a standard and supports 1080p/60Hz 8-bit, (RGB, YUV) or HD-SDI/3G-SDI
Output Formats:Up to 48KHz, 85db, 24-bit
Video Sampling Rate:HDMI: 165MHz
Audio and Video Capture:It meets the standards of UVC (USB video class) and UAC(USB audio class)
Output Color Space:YUY2, RGB24
Video Processing
Switch of Color Space
Hardware Color Switch
Image Scale
Hardware Scale
Image Adjustment
The image adjustment of brightness, contrast, hue, saturation
|
