Using 1/2.8 CMOS image sensor, SDI 2 MP 1080P output
1080P high definition image quality, effective resolution reaches 1920*1080, no delay, no compression, low loss and real-time transmission
OSD Menu: include D-WDR(Digital-WDR)/ DS-WDR(double scan-WDR) With 2.5mm / 3.6mm / 4.3mm HD No distortion Lens

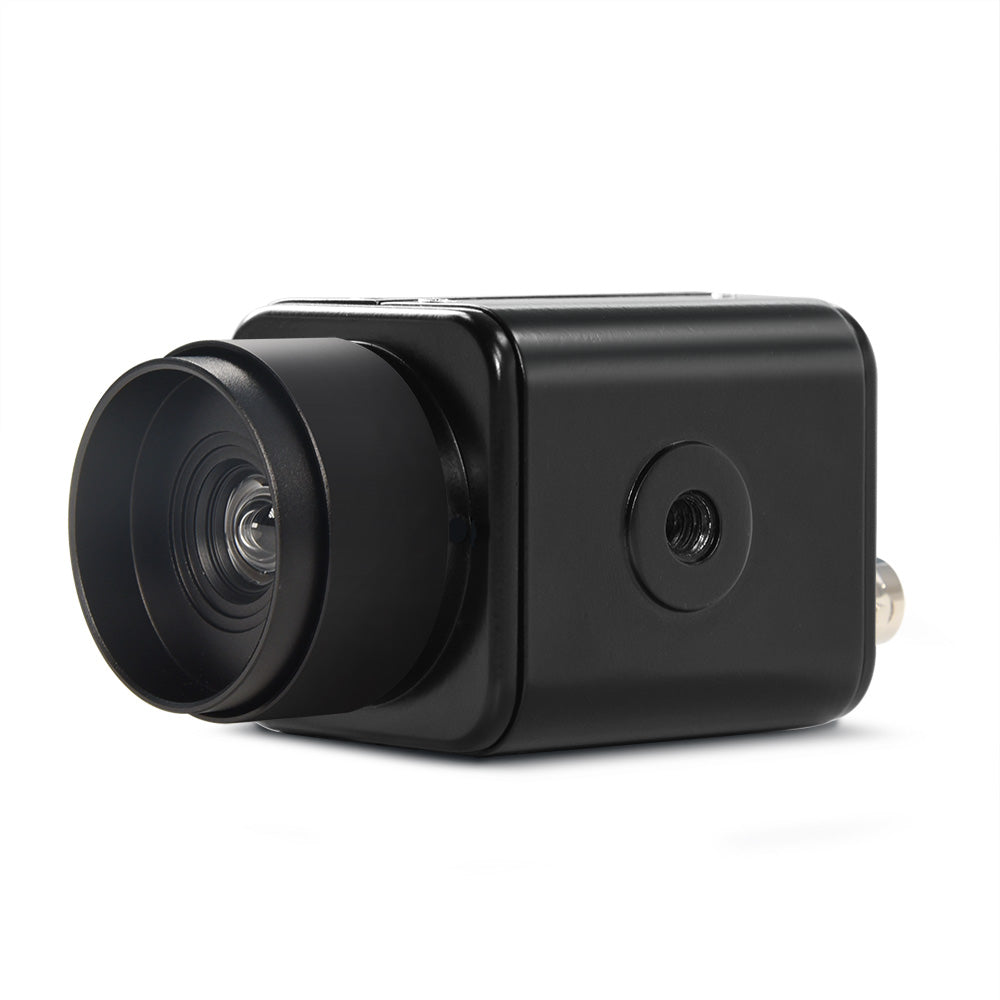

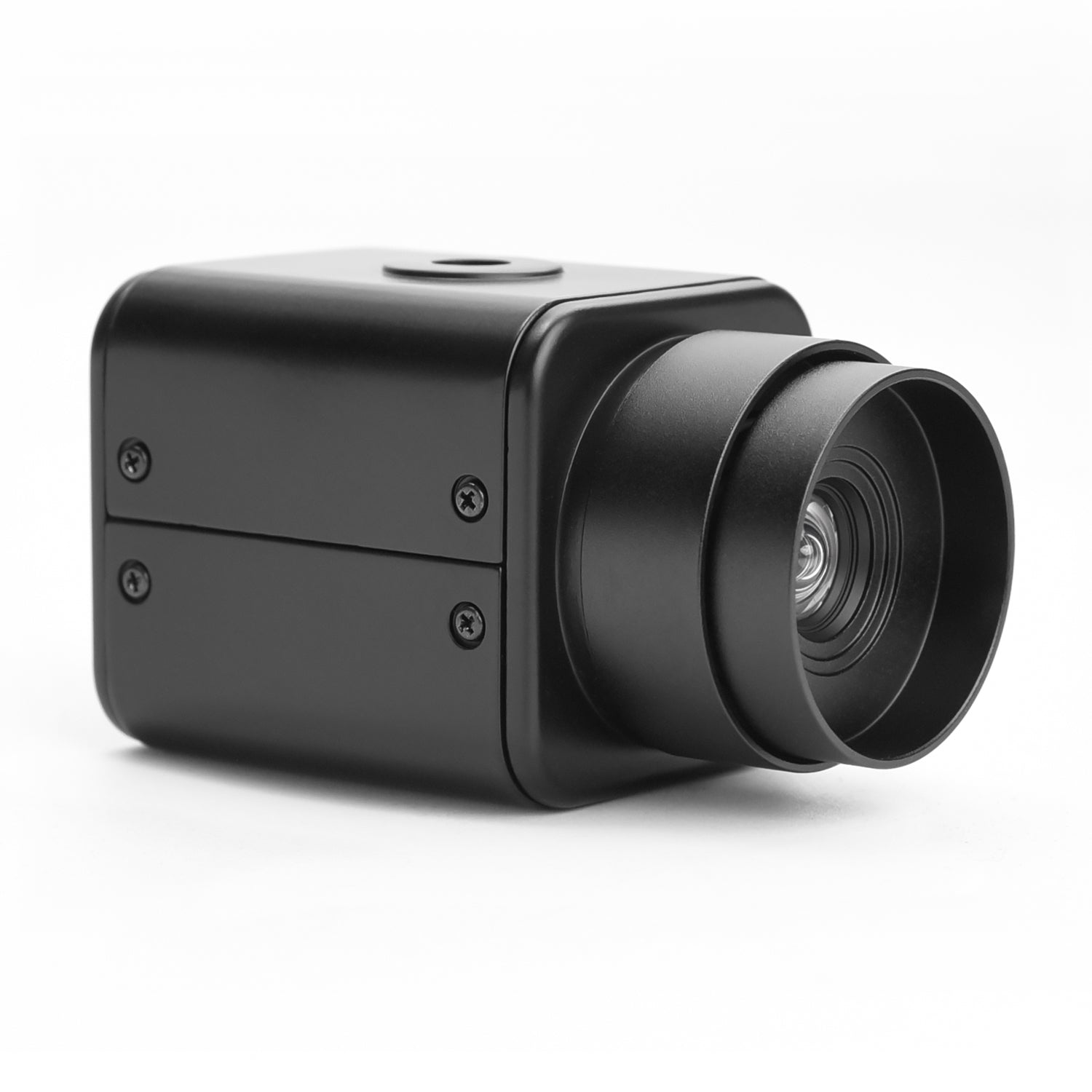

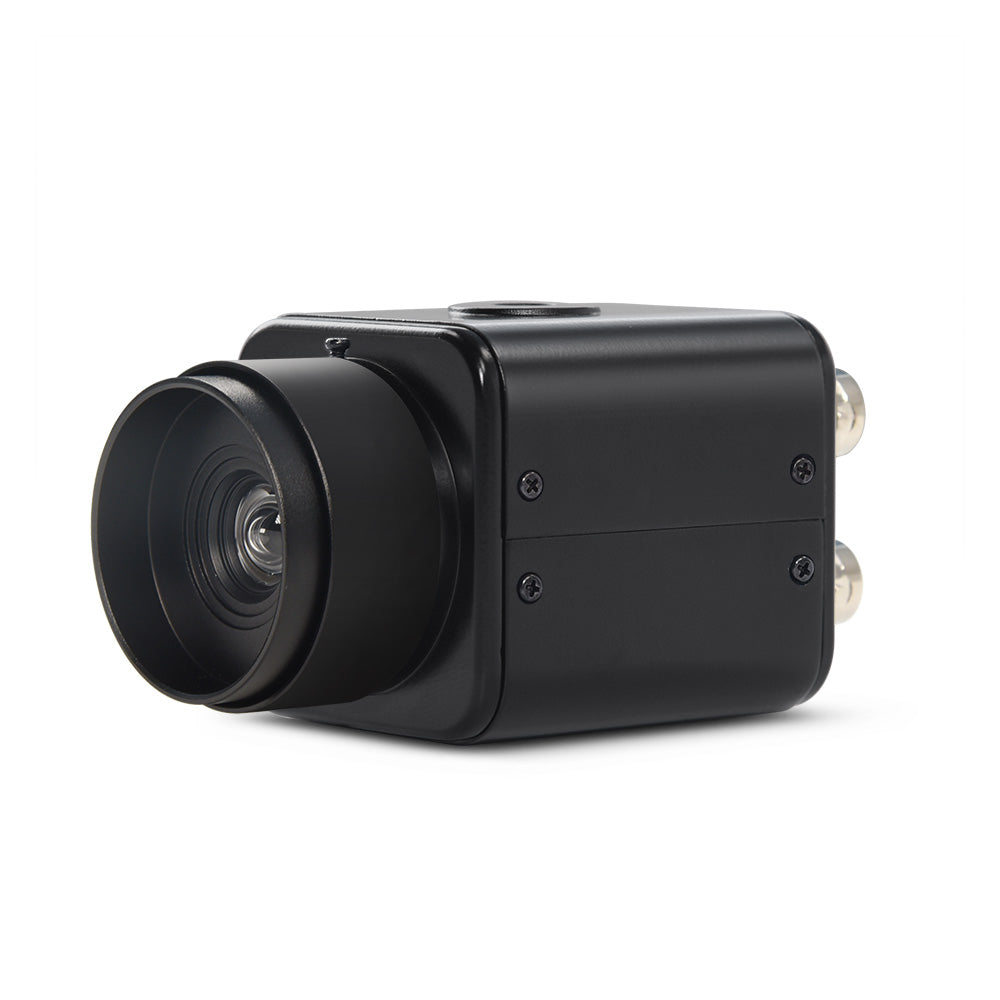

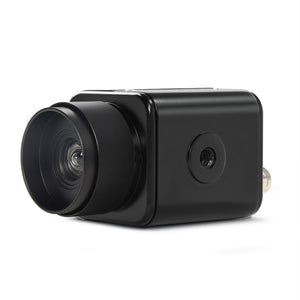

HD-SDI 2 Megapixel 1080P HD Digital CCTV Security Camera without night vision

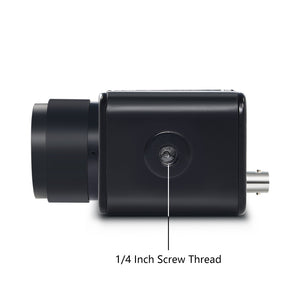

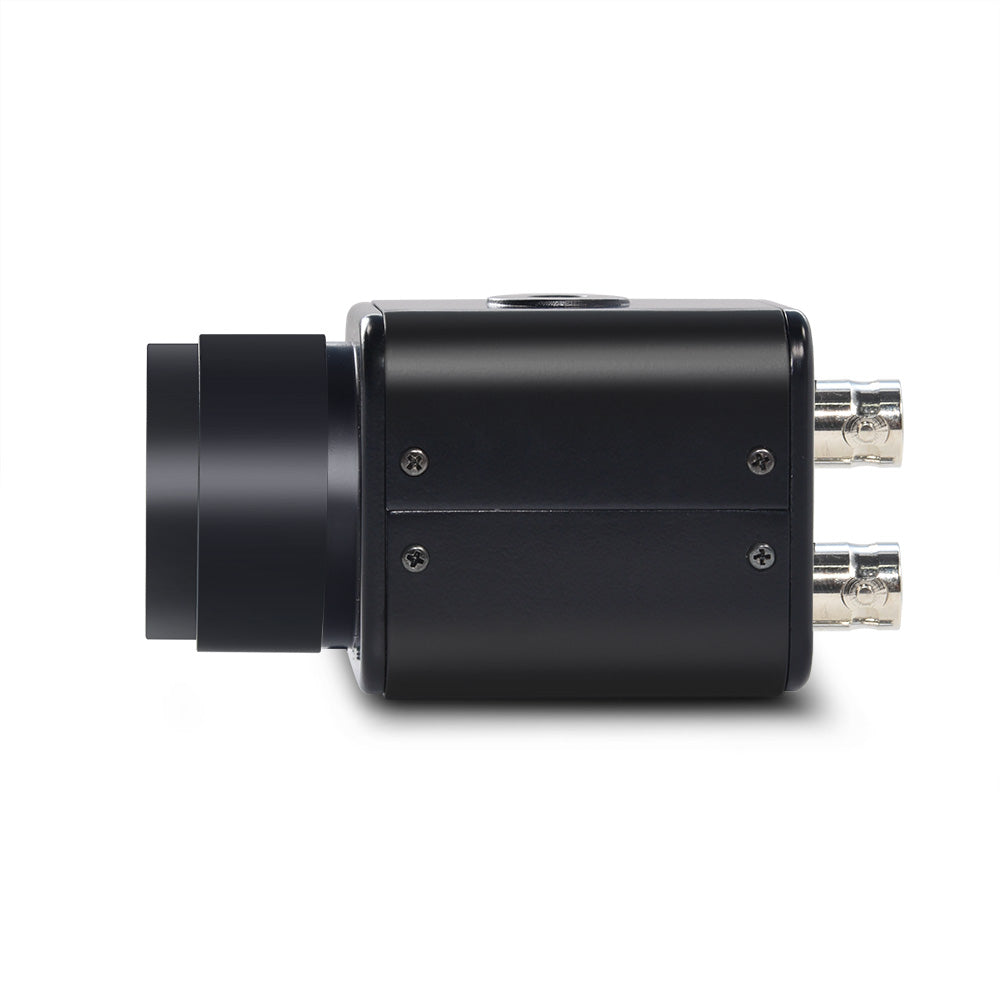

Mini metal shell with double 1/4 Inch Screw Thread
| Camera Specification | |||
|---|---|---|---|

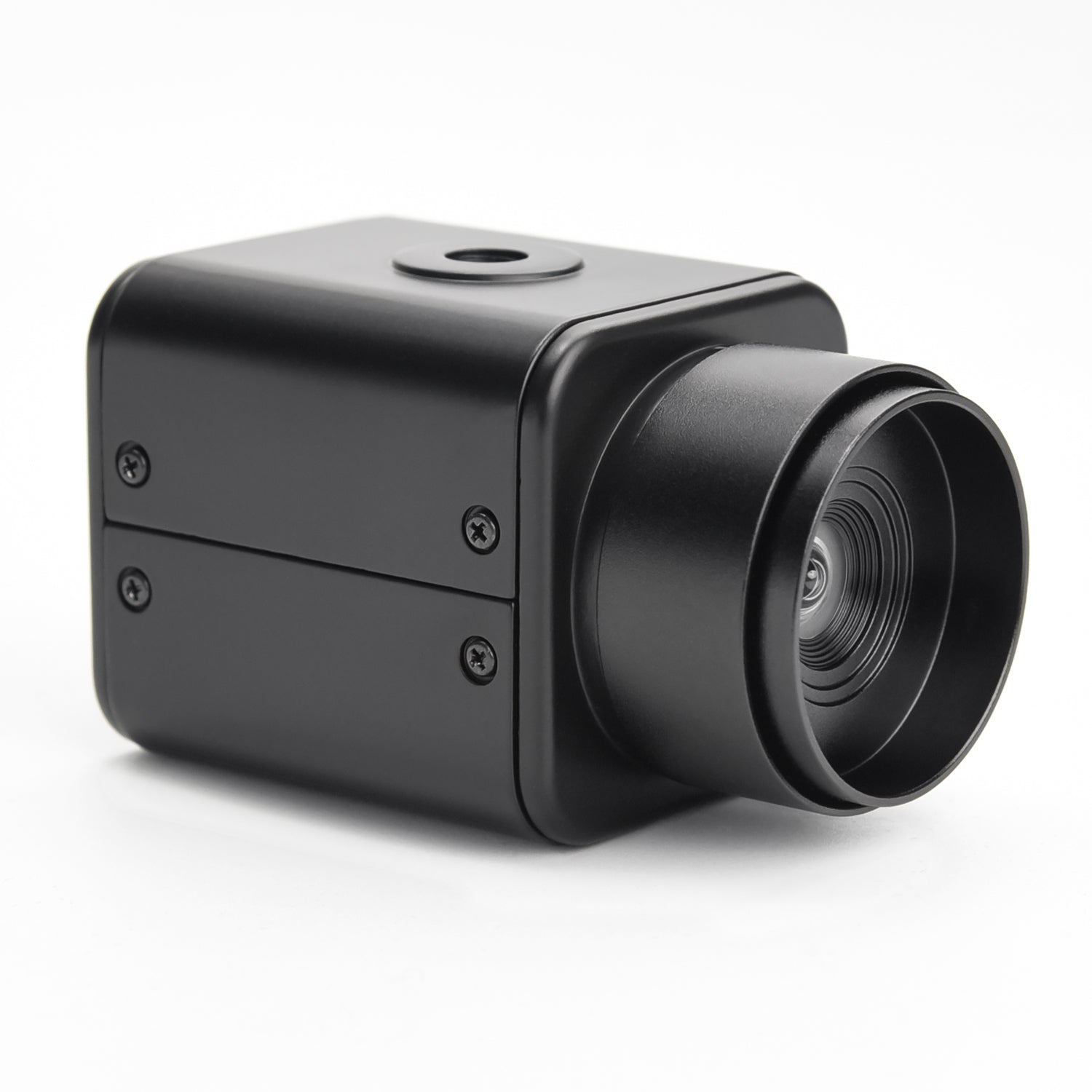

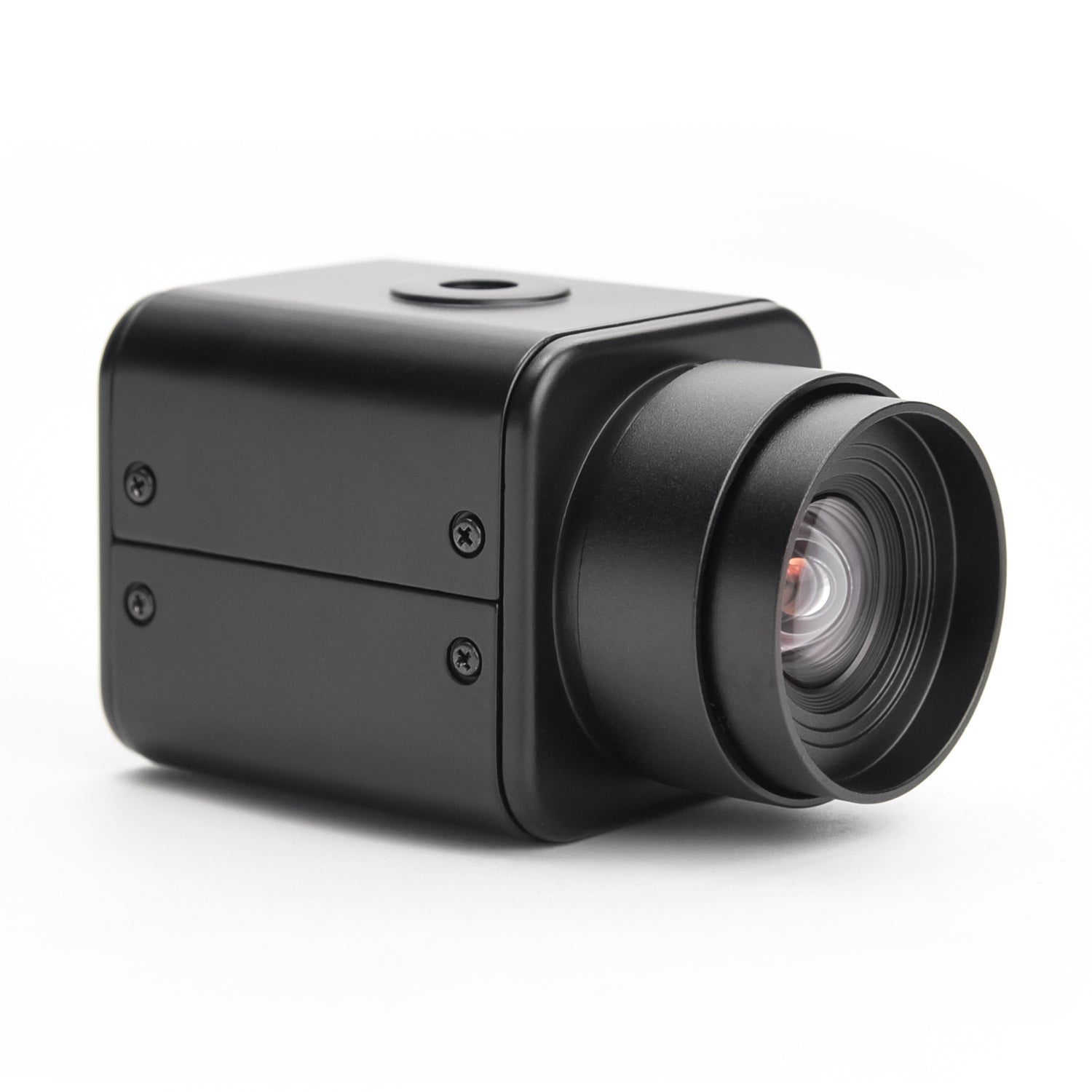

| Lens | 2.5MM | 3.6MM | 4.3MM |

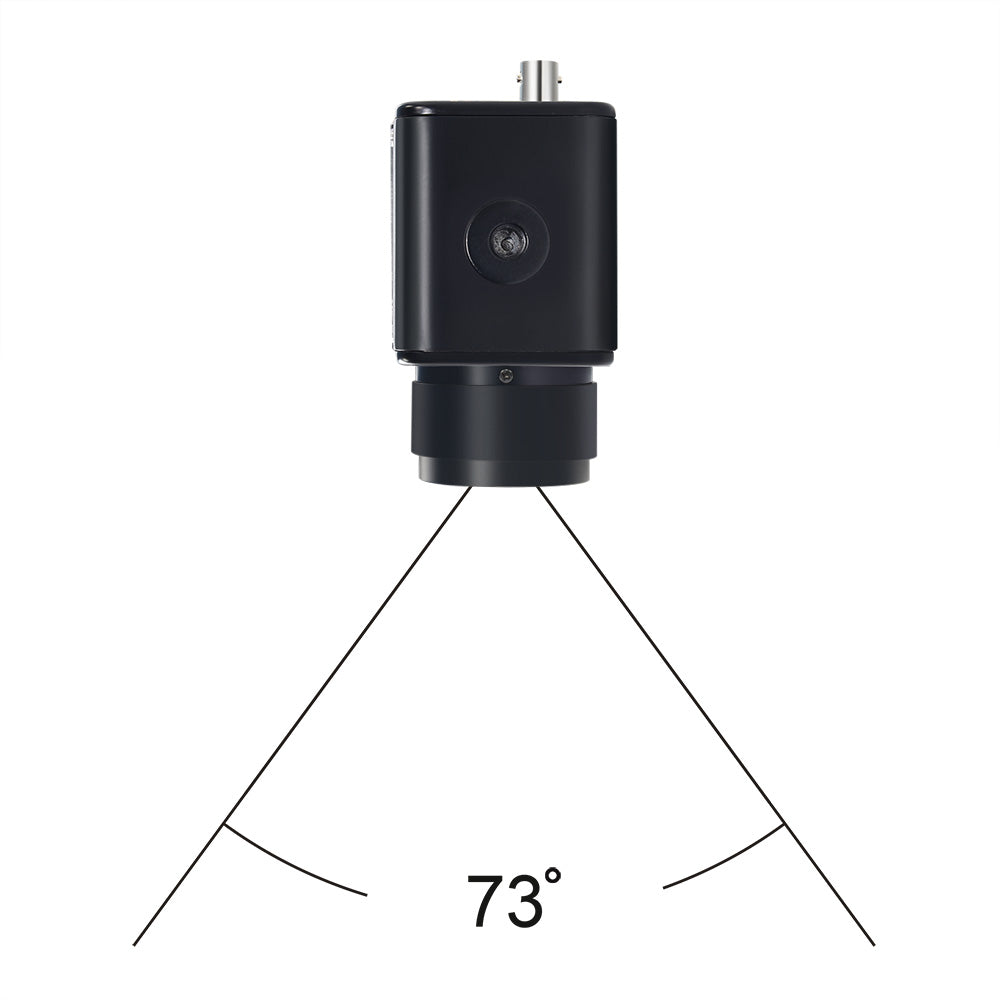

| Angle of view | 87.1° | 73° | 63.9° |
| Size | 73*42*44MM | ||
| Weight | 141g | ||

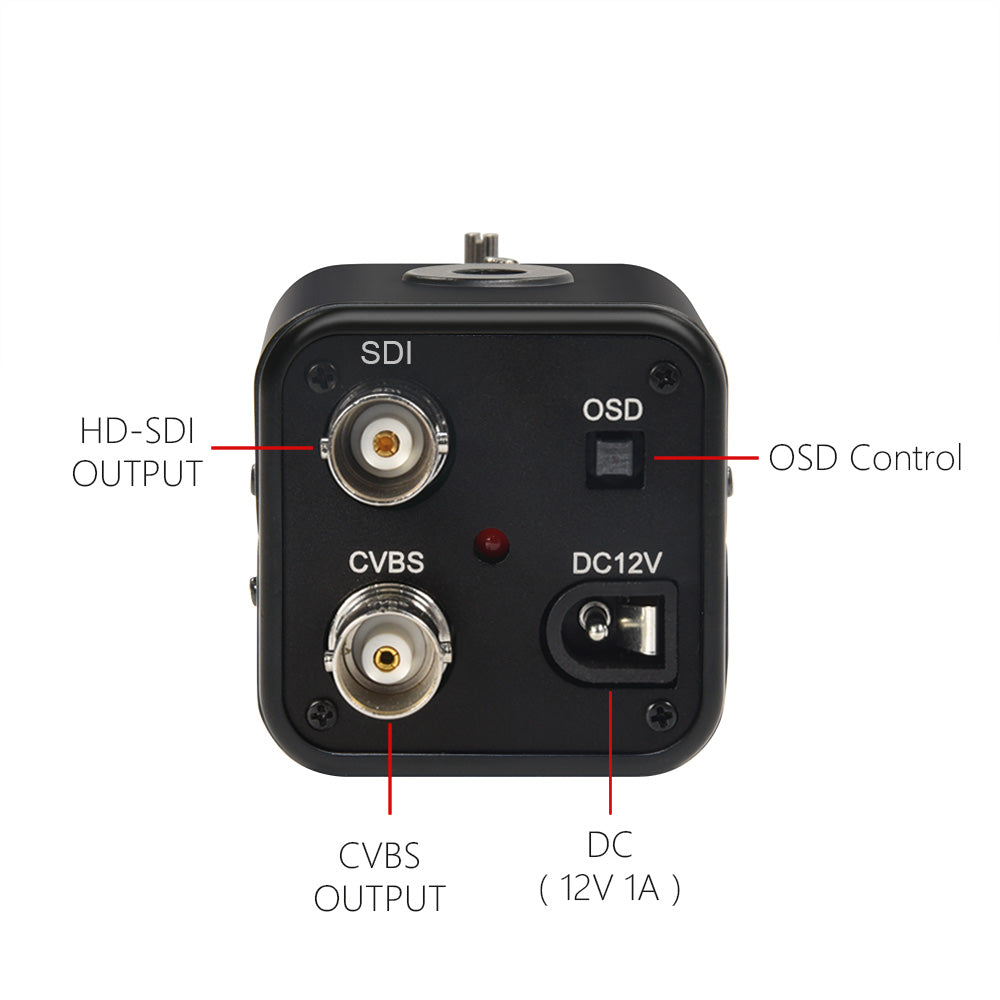

| Interface | HD-SDI | ||
| Sensor Size | 1/2.8" | ||
| Lens Mount | M12 | ||
| Resolution | 1920*1080 | ||
| Standard | PAL / NTSC | ||
| Frame rate | 25FPS(PAL) / 30FPS(NTCS) | ||
| Focus mode | Manual | ||
| WDR / HDR | Auto | ||
| Night vision | without | ||
| Power | 12V 1A | ||
