MOKOSE HDMI live streaming Game Video Capture card USB3.0 HD Dongle 1080P 60FPS Grabber box device with MIC Audio Mixer for PS4S witch Support Windows Linux macOS System U70S
MOKOSE HDMI live streaming Game Video Capture card USB3.0 HD Dongle 1080P 60FPS Grabber box device with MIC Audio Mixer for PS4S witch Support Windows Linux macOS System U70S
Regular price
$155.99 USD
Regular price
$165.99 USD
Sale price
$155.99 USD
Unit price
per

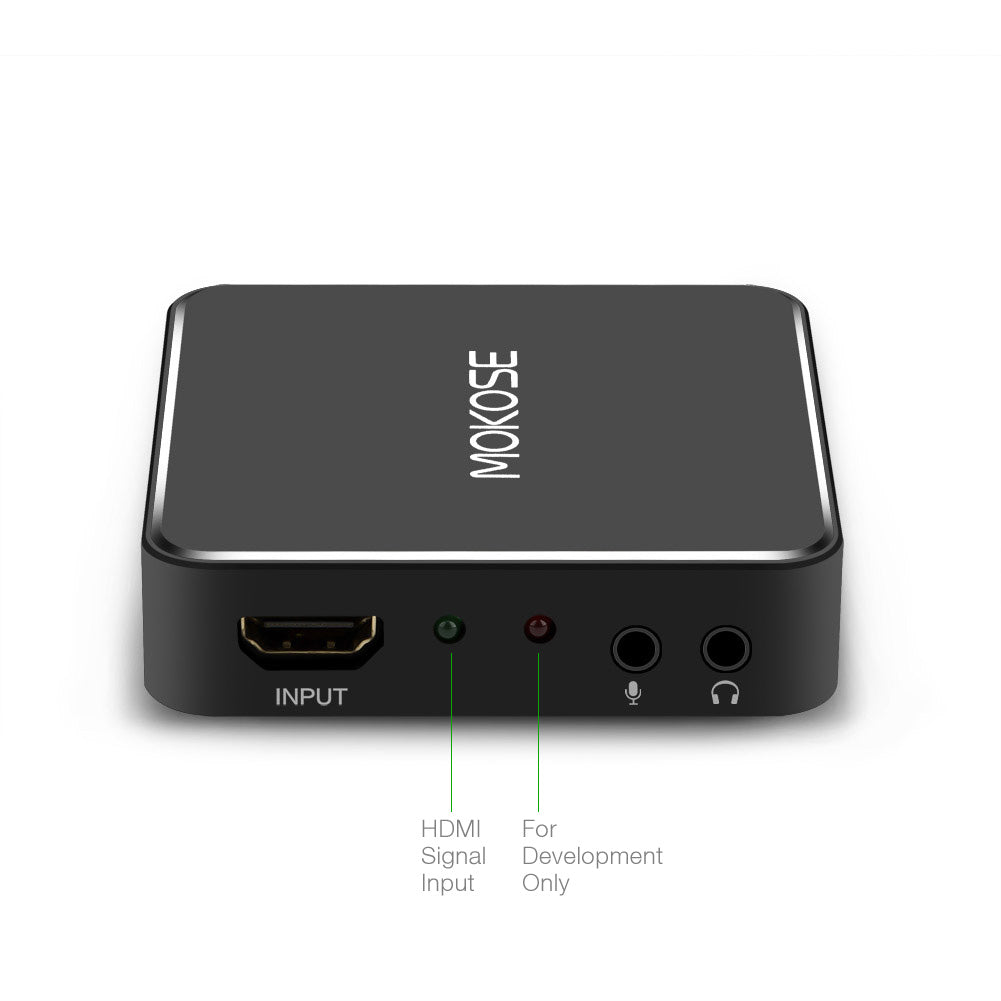

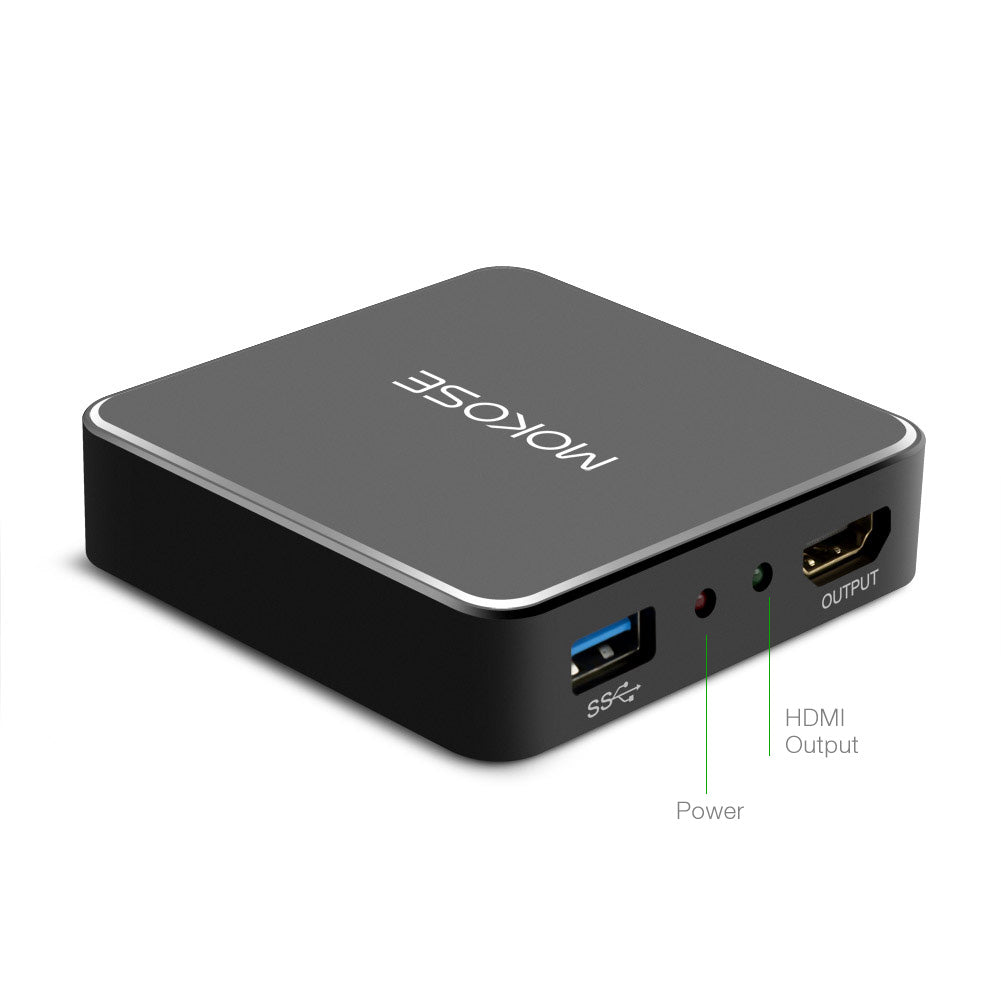

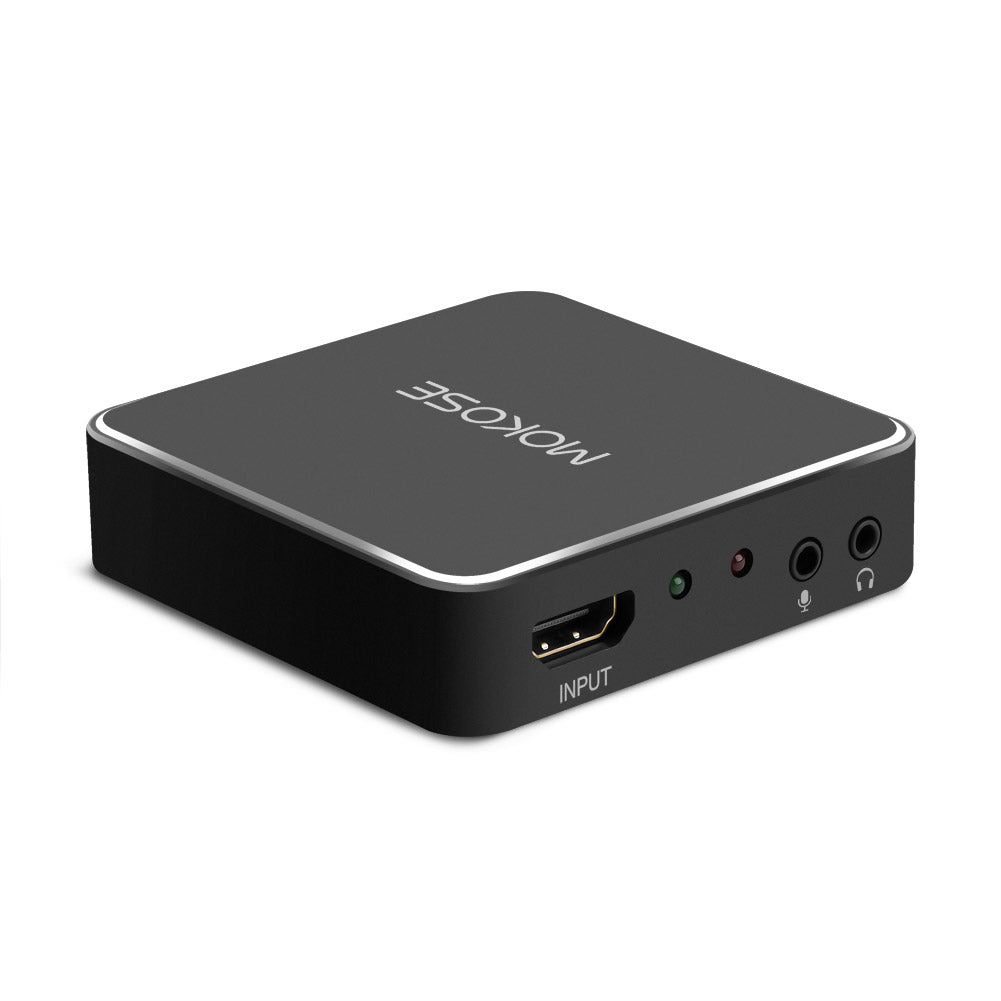

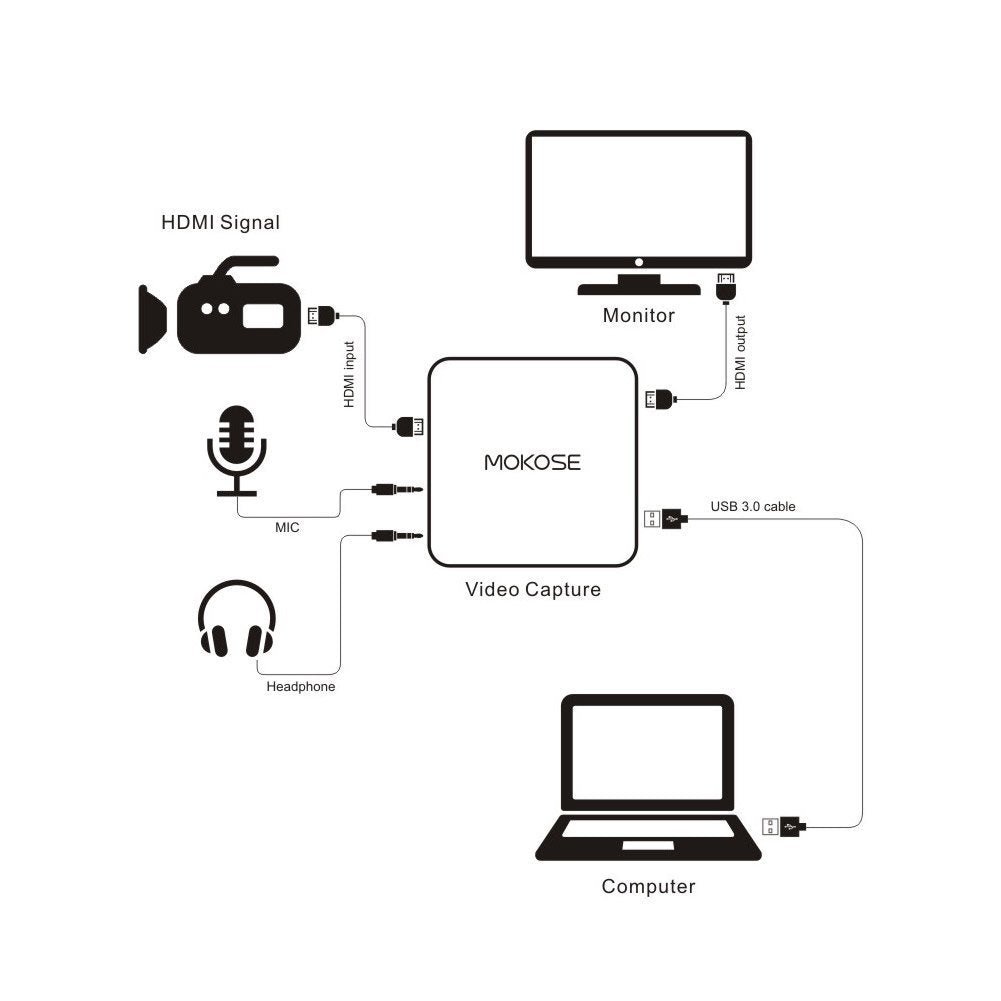

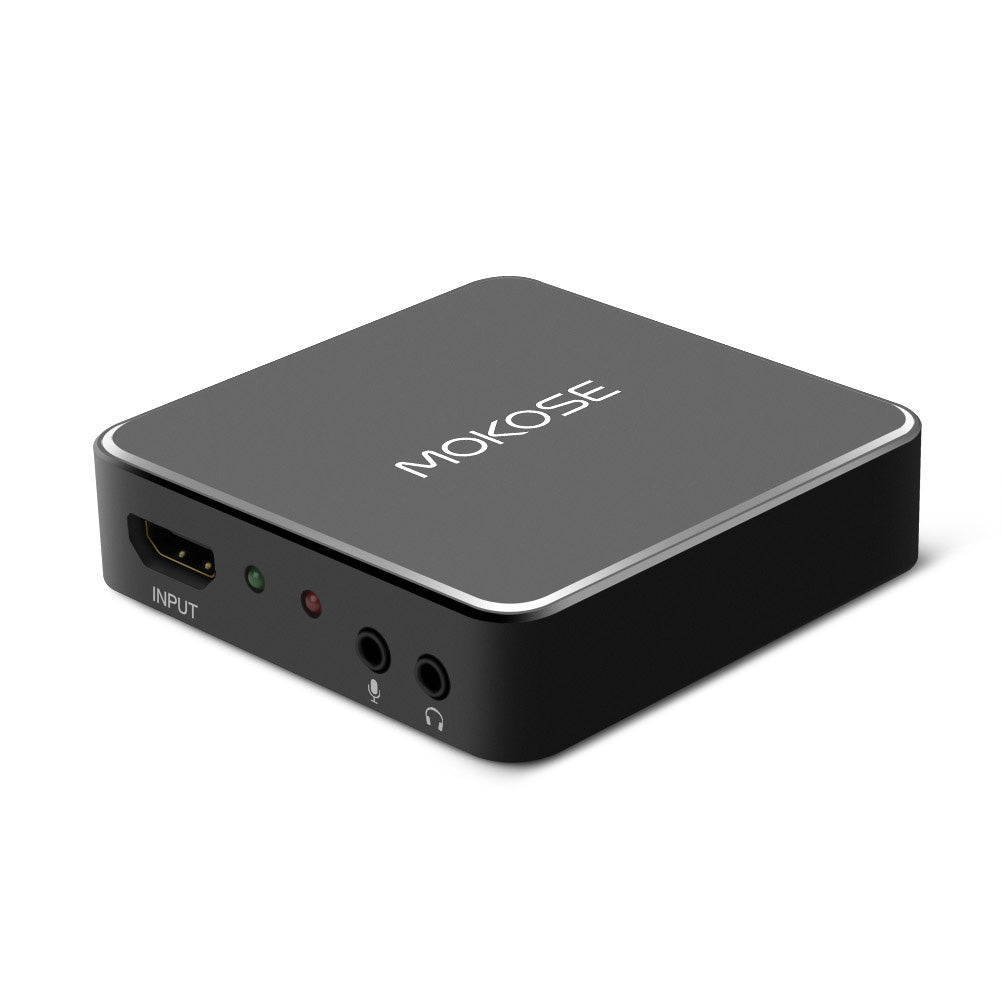

Function of the Interfaces
INPUT : The input interface of HDMI signal. Support up to 1080P 60fps
OUTPUT : The loop through interface. The received HDMI signal will be sent to the other device without being processed.
Headphones : The headphone interface, through which source audio or audio from the computer can be monitored.
MIC : The microphone interface, through which voice can be recorded.
USB : The USB interface, through which the capture device can be connected to the USB 3.0 interface on the computer.

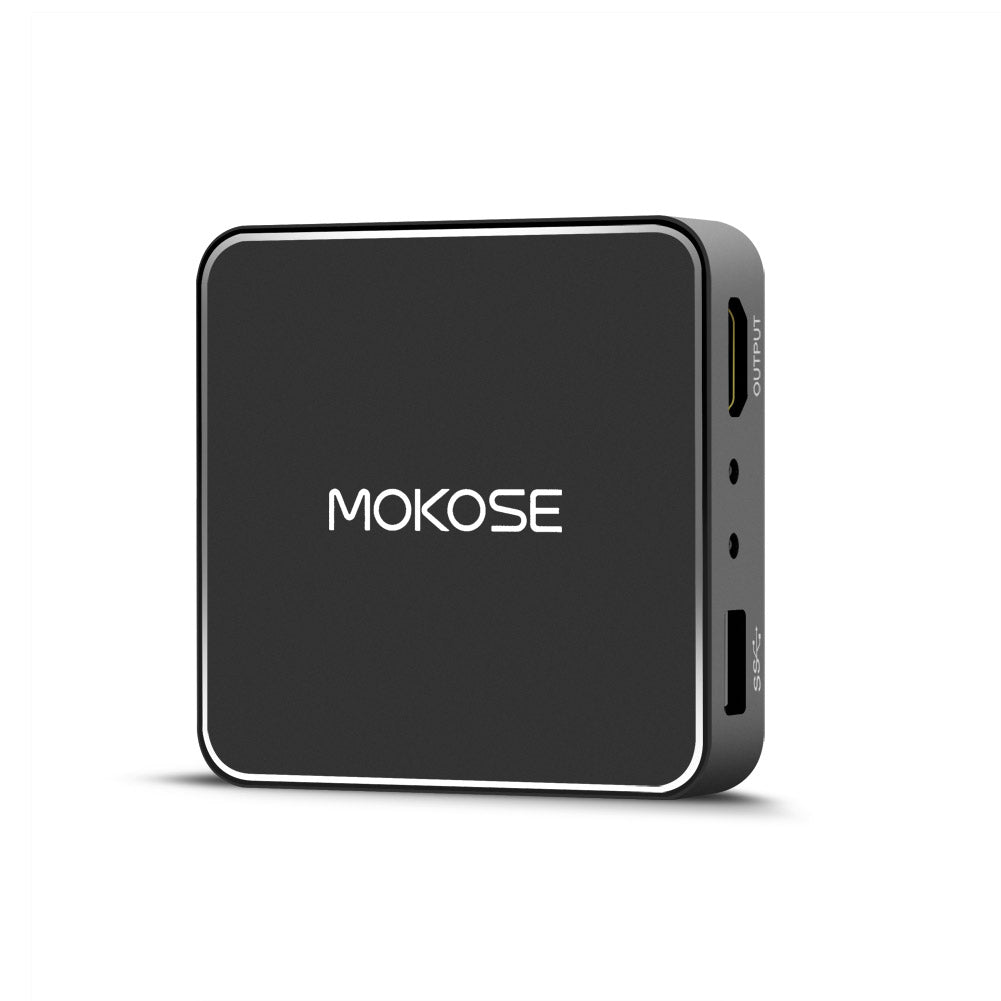

U70S is a HD to USB3.0 High-definition Video Capture Dongle which no need to install the drivers and supports plug and play. It features superior performance, superior compatibility and easy to install & carry. It can capture one single channel HD HD video signals and support the resolution of Input and Output Video Signal up to 1080P at 60Hz. And, it is compatible with UVC video capture and YUV 422 video output. The UAC is compatible with HD audio capture and 48KHz PCM audio output. In additional, it has super compatibility, compatible with Windows, Linux, For Mac macOS and USB 3.0 interface. It will bring you much convenience and fun.
[High-performance Capture Dongle]
Can Capture One single channel HD HD video signals and support the resolution of Input and Output Video Signal up to 1080P at 60Hz with hardware accelerated up-scaling / down-scaling.
In addition, it supports UVC video capture and YUV 422 video output, the UAC is compatible with HD audio capture and 48KHz PCM audio output.
[Unique Design]
The USB 3.0 (300-350MB/s throughput) is compatible with USB 2.0 and can automatically detects input video format and converts it to the specified output size and frame rate, automatically detect the input audio formats and converts it to 48 KHz PCM stereo audio. The process of video and audio is done by the dongle and will not occupy the CPU.
[Superior Compatibility Design]
Compatible with multiple USB 3.0 Chipset (for Intel, Renesas, for ASMedia, for Fresco Logic) and USB 3.0 Interface which passed PCIe For Gen 1.1x1 expansion, also compatible with Windows (7, 8, 8.1), Linux (Kernel Version and above) and macOS).
[Widely Use]
Supports multiple standard development port, including DirectShow (Windows), DirectSound(Windows),V4L2 (Linux), ALSA (Linux),QuickTime(macOS). Supports software compatibility: Windows Media Encoder (Windows); for Adobe Flash Media Live Encoder (Windows, macOS); Real Producer Plus (Windows); VLC (Windows, macOS, Linux); QuickTime Broadcaster (macOS); QuickTime Player (macOS); Wirecast (Windows,macOS); Potplayer(Windows), etc.
[Simple Installation and Use]
Comes with a compact portable size; No need to install the drivers and supports plug and play (it is truly PnP). Stable and reliable, it will bring you much convenience and fun.
Specifications:
Model: U70S
Product Type: HDMI to USB3.0 Video Capture Dongle
Audio and video capture standards of UVC and UAC
Interface: HD 1.4 Input (HDCP1.4), compatible with DVI 1.0; USB3.0 (300-350Mbps) Output.
HD Input Resolution Supported: 480i, 480p, 576i, 576p, 720p/50, 720p/60, 1080i/50, 1080i/60, 1080p24/25/30/50/60.
HD Output Resolution Supported: 640 * 480; 720 * 480; 720 * 576; 768 * 576; 800 * 600; 1024 * 768; 1280 * 720; 1280 * 800; 1280 * 960; 1280 * 1024; 1368 * 768; 1440 * 900; 1600 * 1200; 1680 * 1050; 1920 * 1080; 1920 * 1200; 640 * 360; 856 * 480; 960 * 540; 1024 * 576.
Color Space: RGB / YCBCR 4:2:2 / YCBCR 4:4:4
Audio Input Supported: LPCM 32~192KHz; Audio Output Supported: LPCM 48KHz.
Frame Rate: 25/29.97/30/50/59.94/60 fps
Power consumption: < 2.5W
Color: Black
Main Item Size: 78 * 78 * 19.6MM
Main Item Weight: 135g
Package Size: 134 * 130 *50MM
Package List:
1 * HD to USB3.0 Video Capture Dongle
1 * USB3.0 Cable
1 * English User manual
