Using 1/2.8 CMOS image sensor, 3G / HD SDI digital signal and CVBS analog signal output
Multiple resolutions output, Support 1080@60/50/30/25P, 1080@60/50i, 720@60/50/30/25P，It can better compatibility with switcher or other device
1080P high definition image quality, effective resolution reaches 1920*1080, no delay, no compression, low loss and real-time transmission
Ultra-wide dynamic capabilities in a very strong light, can see the features of the image contrast light in a small range, and super wide dynamic , and the highest can reach 60fps.
The noise reduction is a technologies of between frames, realizing the 3 D image denoising. Make the images more pure and fine details! And closer to the actual effect of the human eye can see.
Camera Specification
*MODEL: SHD60

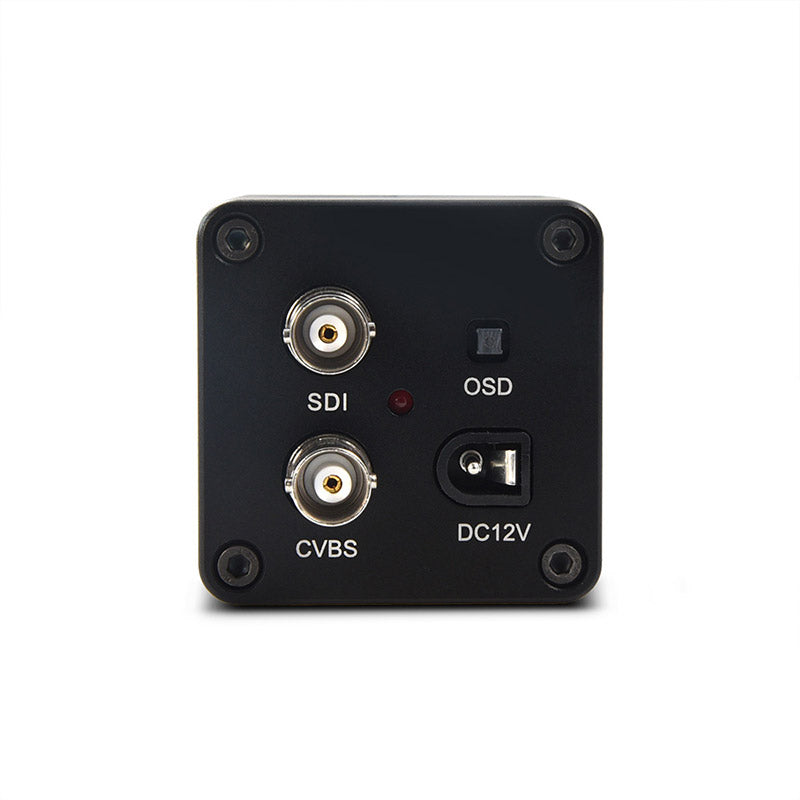

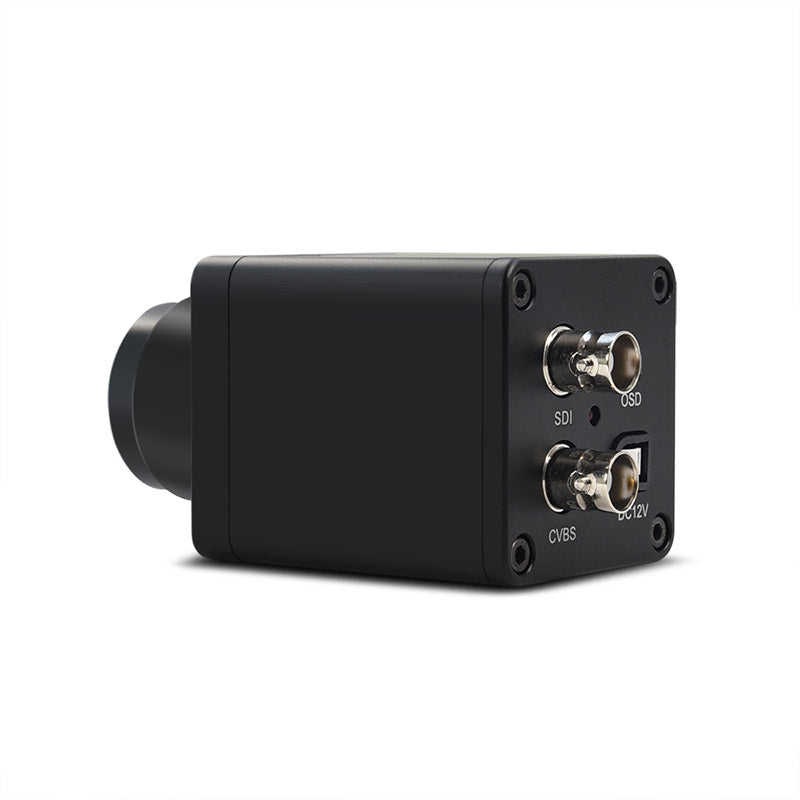

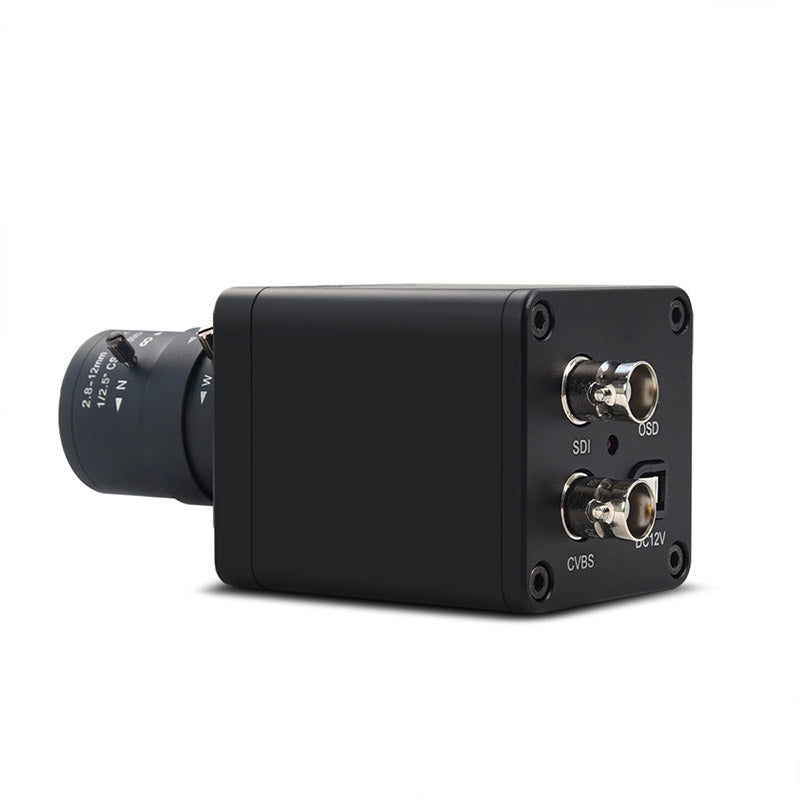

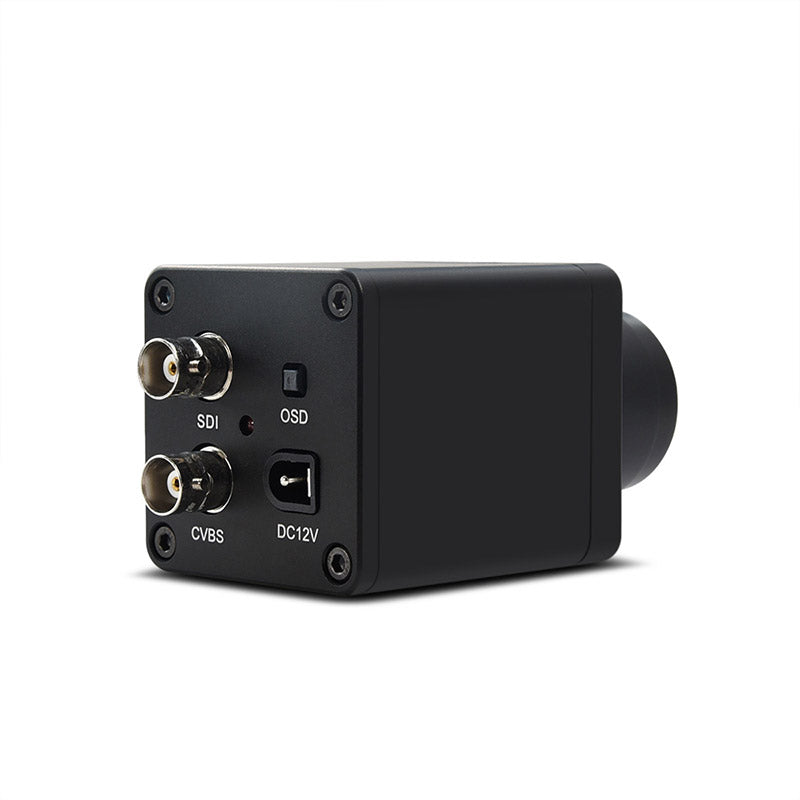

*Output：SDI and CVBS can output same time
*Solution: 1/2.8'' CMOS Sensor
* Effective Pixels: 1920(H)*1080(V)
* Resolution : 1080@60/50/30/25P, 1080@60/50i, 720@60/50/30/25P

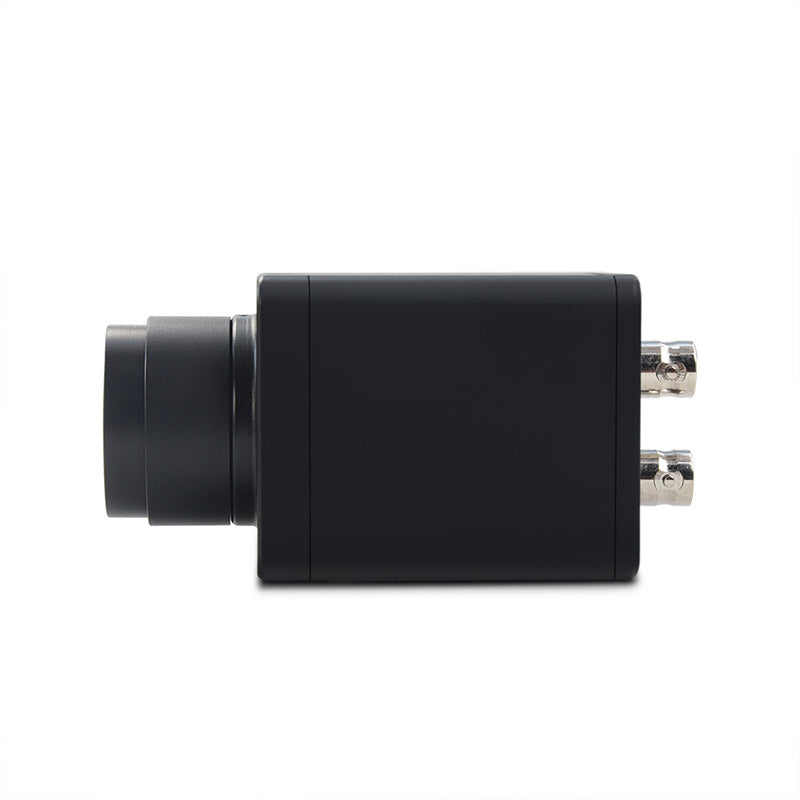

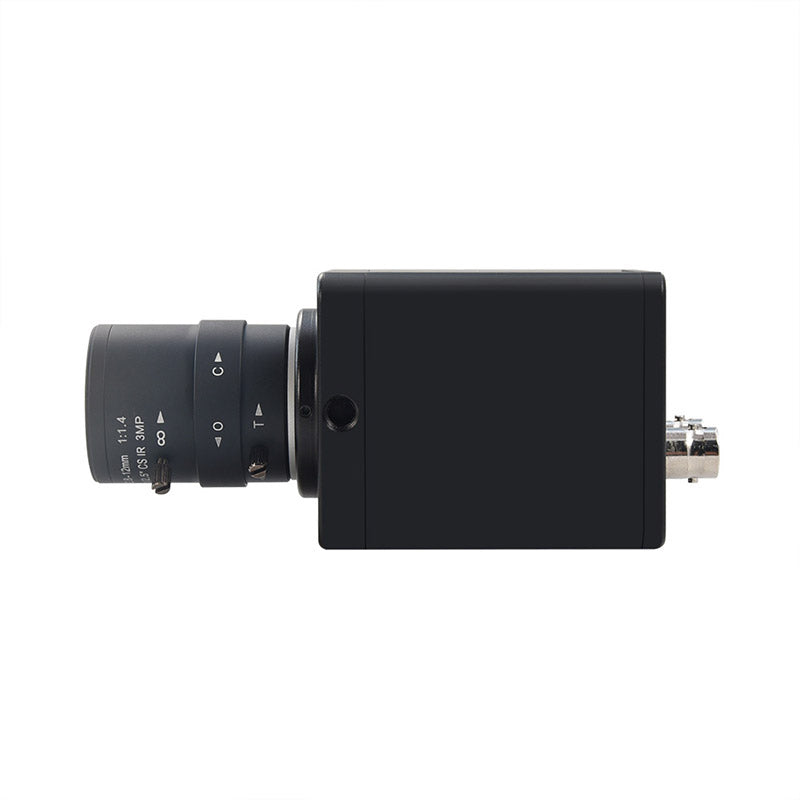

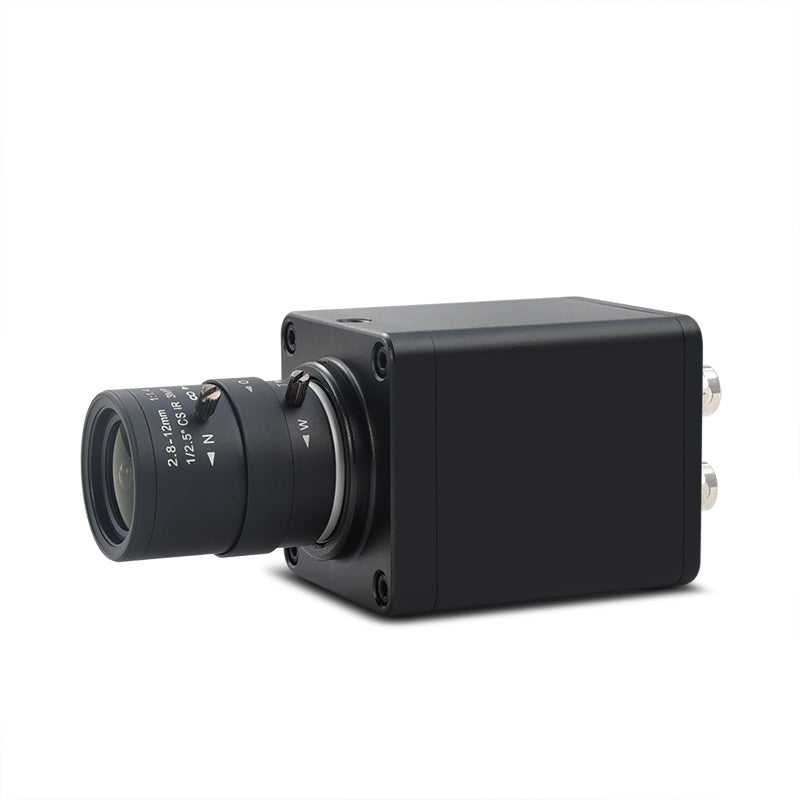

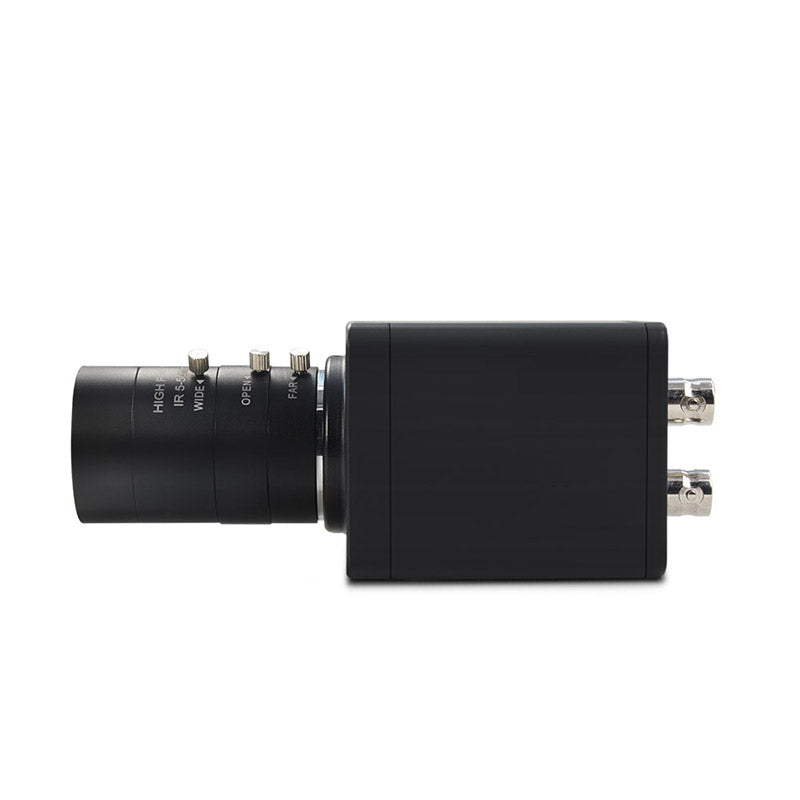

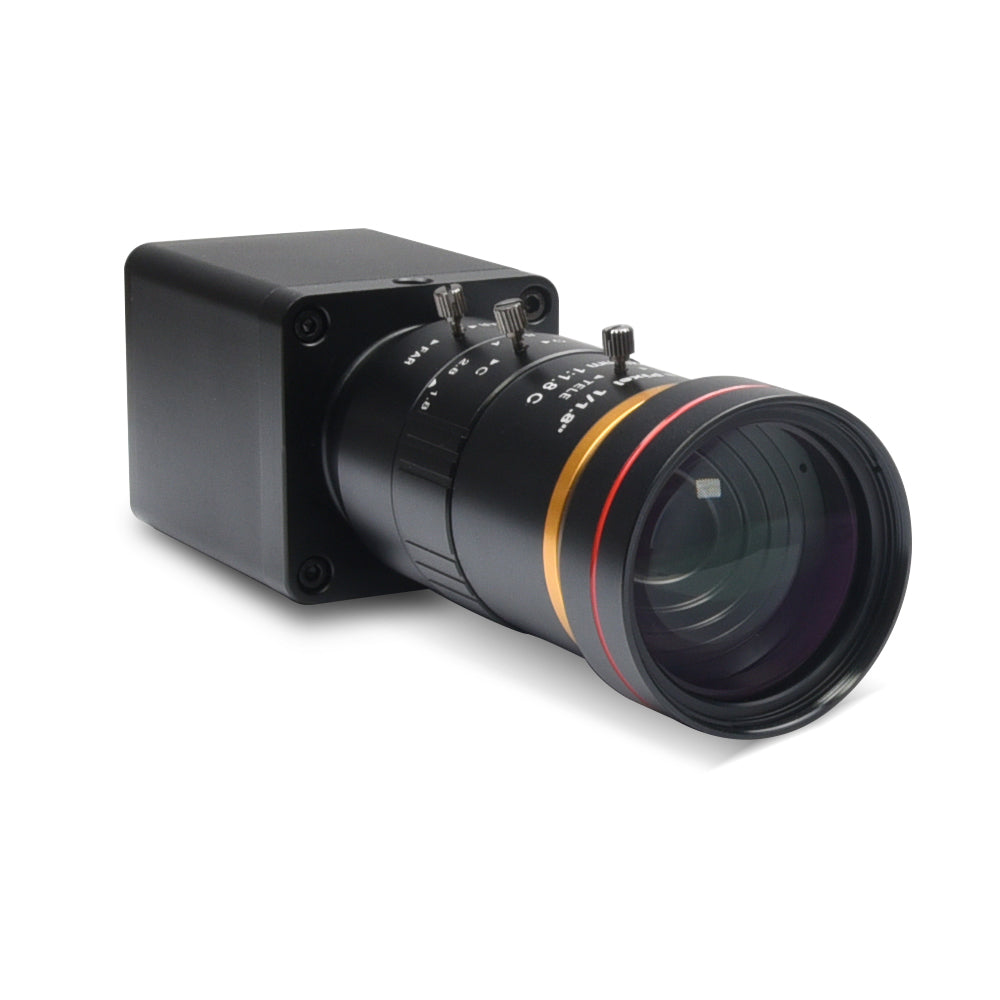

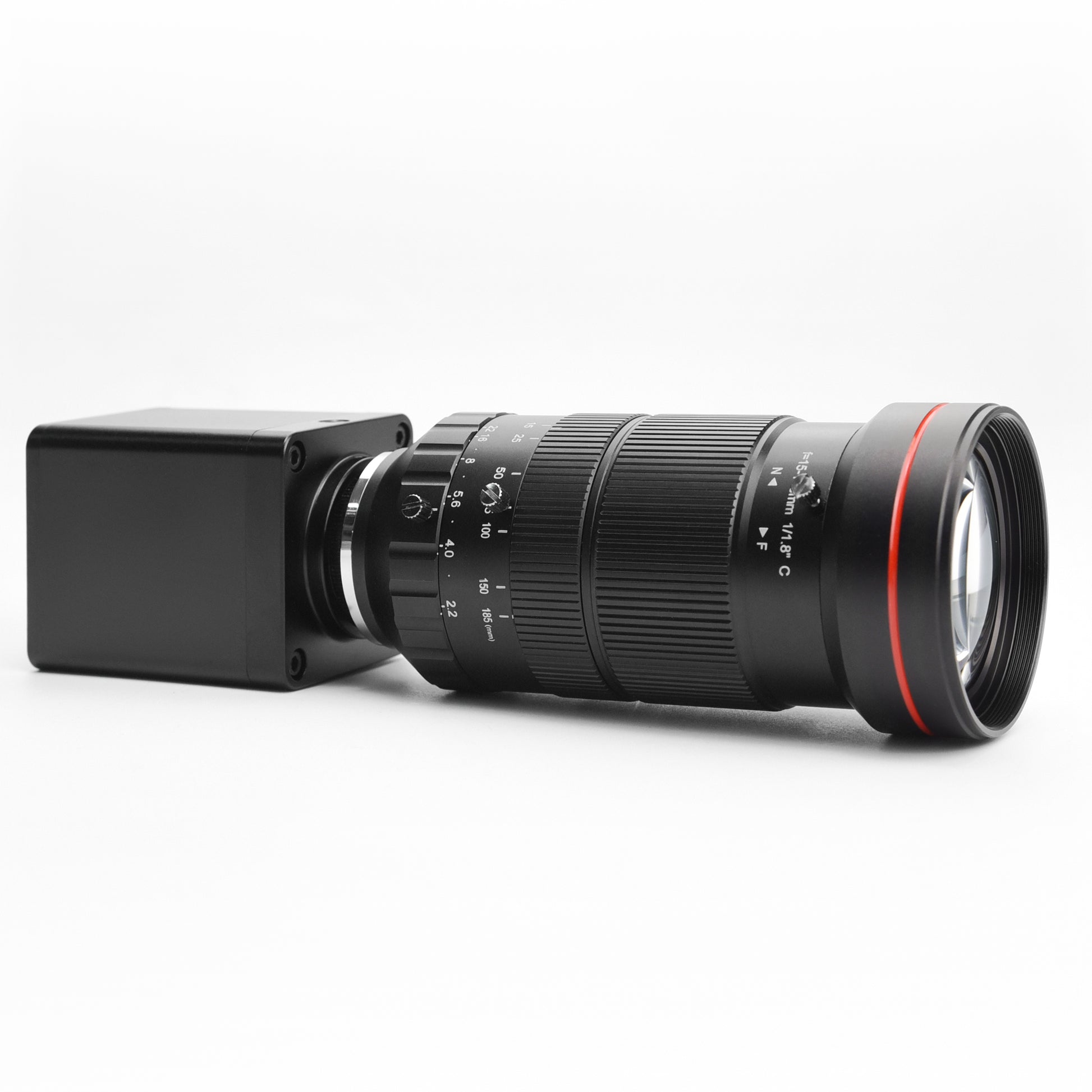

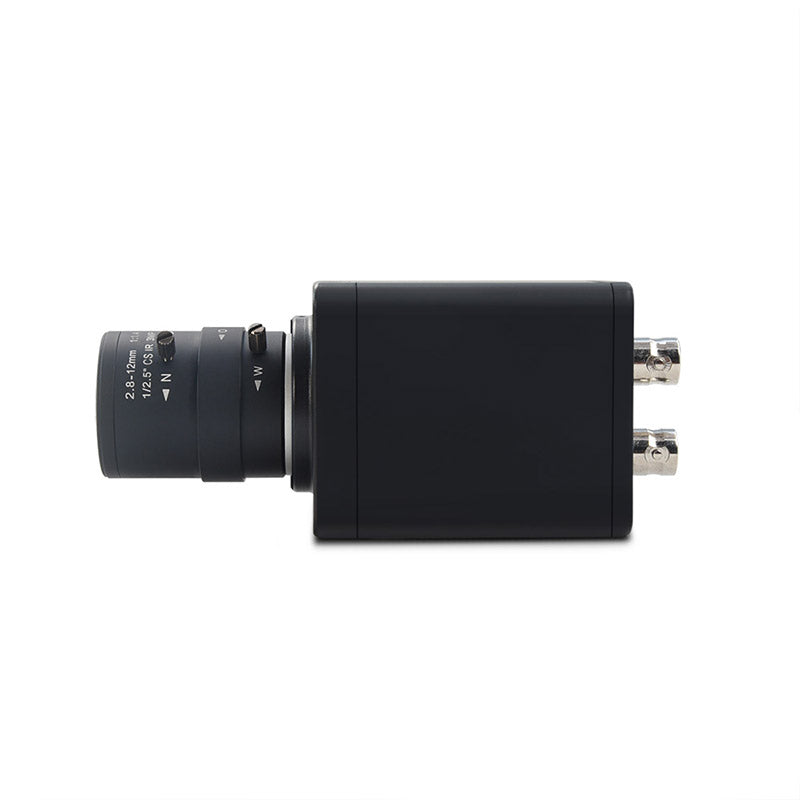

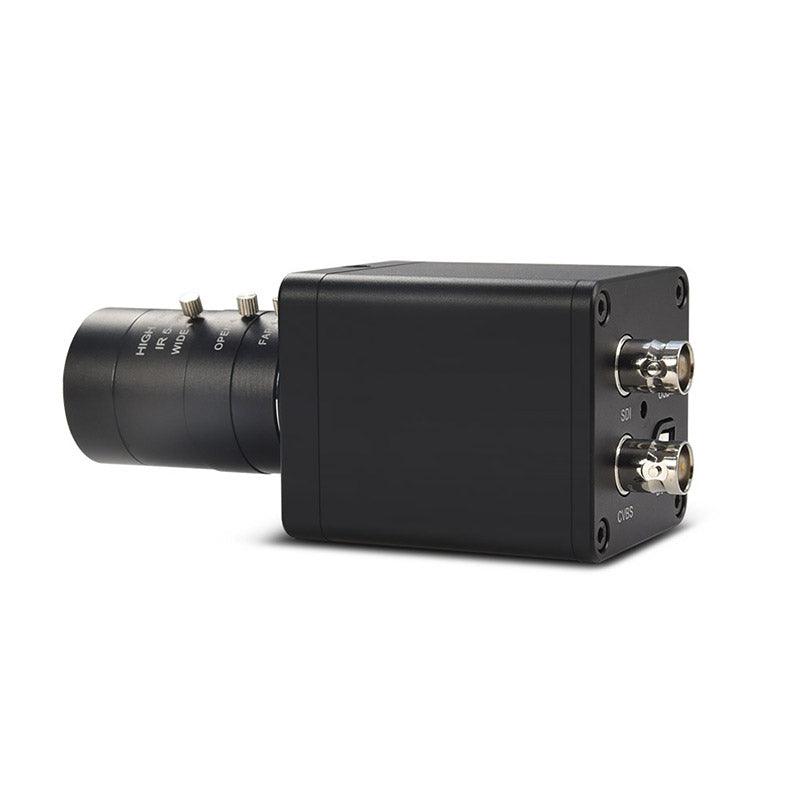

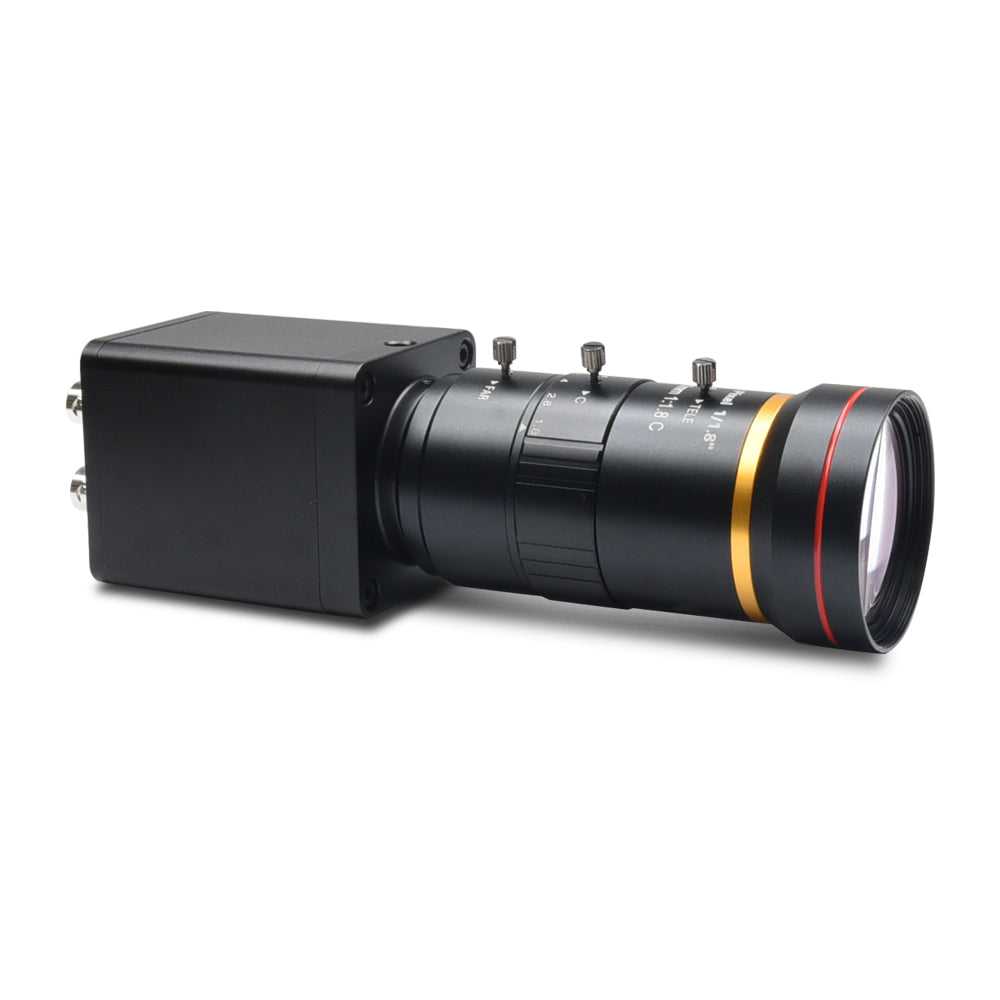

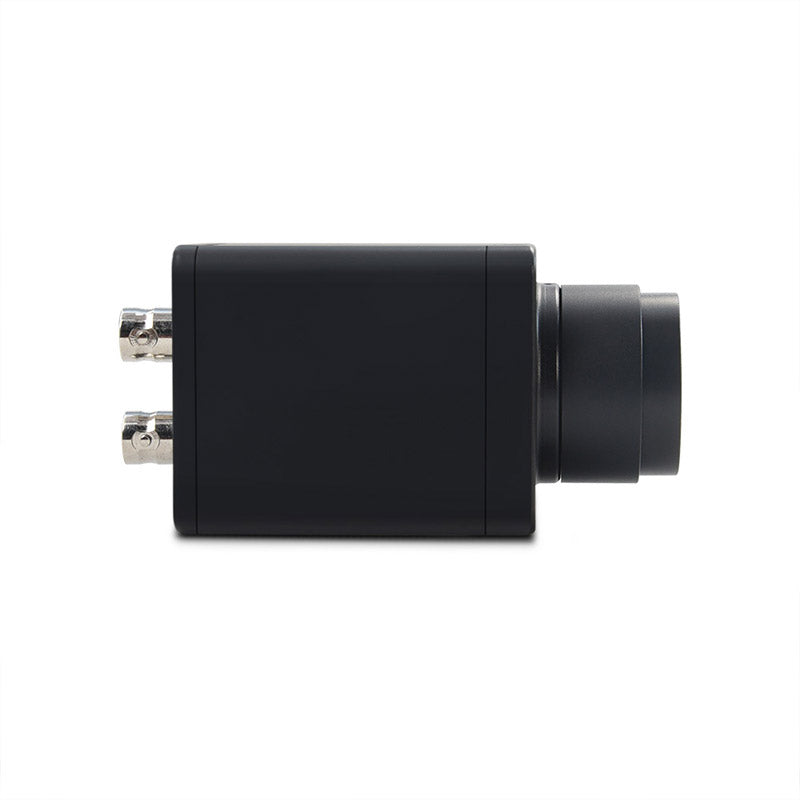

* Lens: 3.2MM(No distortion) / 2.8-12MM / 5-50MM manual Lens
* Field of View: 77°(3.2MM) / 42°~110°(2.5-12MM) / 8°~48°(5-50MM)
* Backlight Compensation: Auto
* White Balance: Auto Tracking White Balance
*DAY/NIGHT function: Without
* Working Temperature: -10°C~50°C
