HD Video Quality - Can record 4K/30fps video( HDMI Mode ),Supports time lapse and take burst photos, Build-in with 1/2.3" 12MP raw image Sony IMX377 Exmor R CMOS image sensor. The latest firmware can be upgraded through TF card, The new firmware makes the product work more stable and get better images.
Support 3840*2160P/30/25/24fps HDMI®/™ output，Support 1080P60/50/30/25fps, 1080i60/50, 720P60fps HDMI®/™ output，Connect to a HDMI monitor capture video show on screen for teaching, or Connect to a HDMI video capture card for small activity Live Streaming.

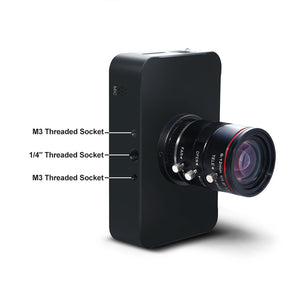

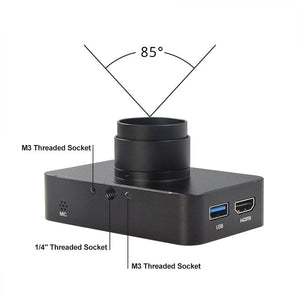

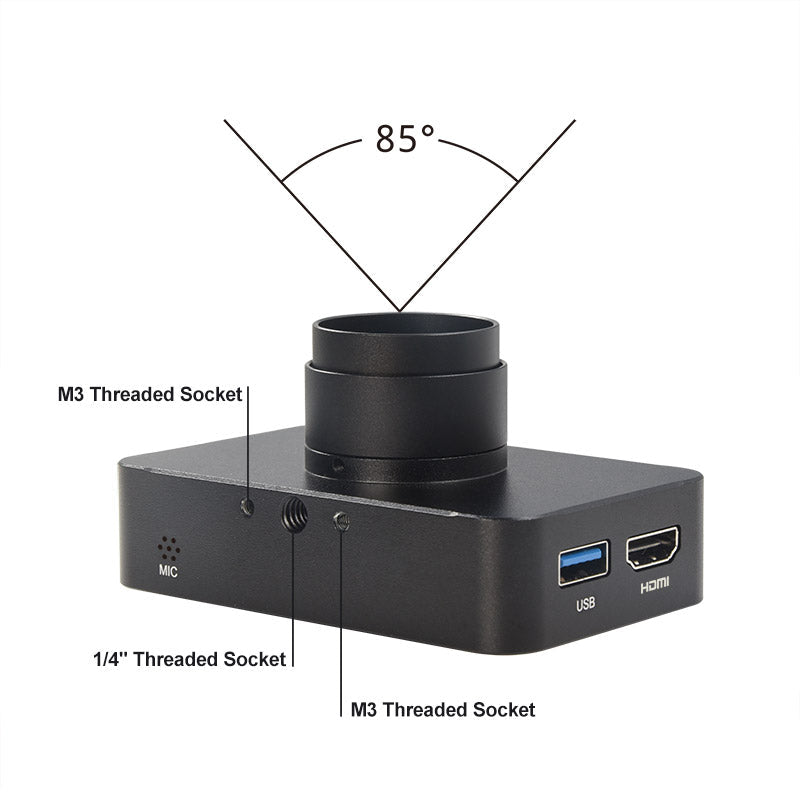

Solid aluminum shell material ,With 3 Meters USB cable. Double 1/4 Inch Screw Thread placement easier for multi-angels placement needs for monitors, laptop, desktop, desk and even other flat surfaces.
Playback-Support photos and videos playback thru HDMI®/™ output to Monitor with Audio.
Time Lapse Video recording, Support settings 0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2minutes, 5minutes, 30minutes, 1hour.

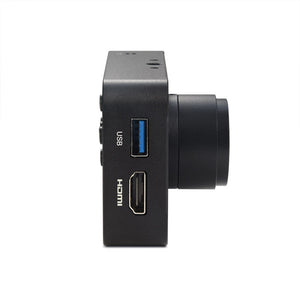

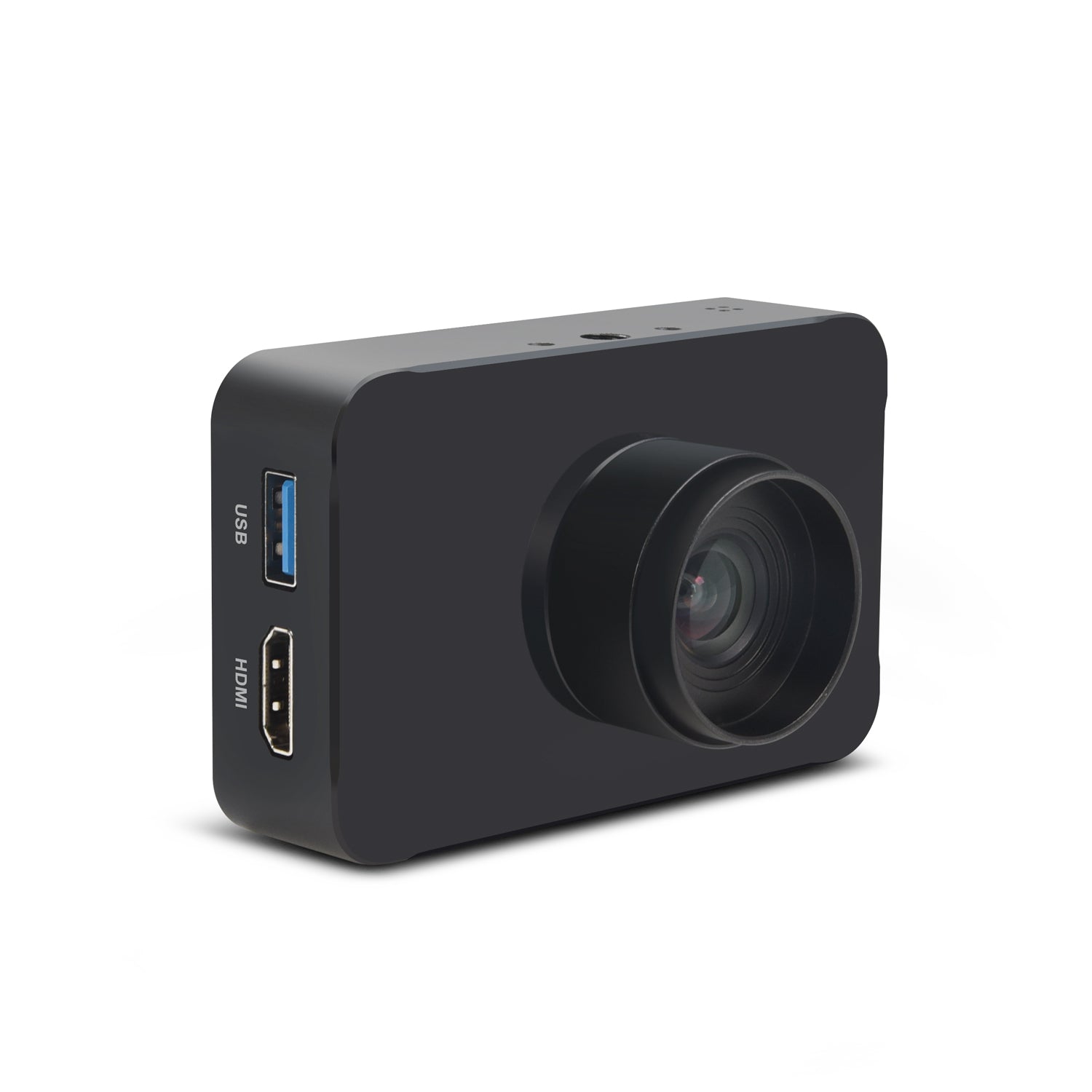

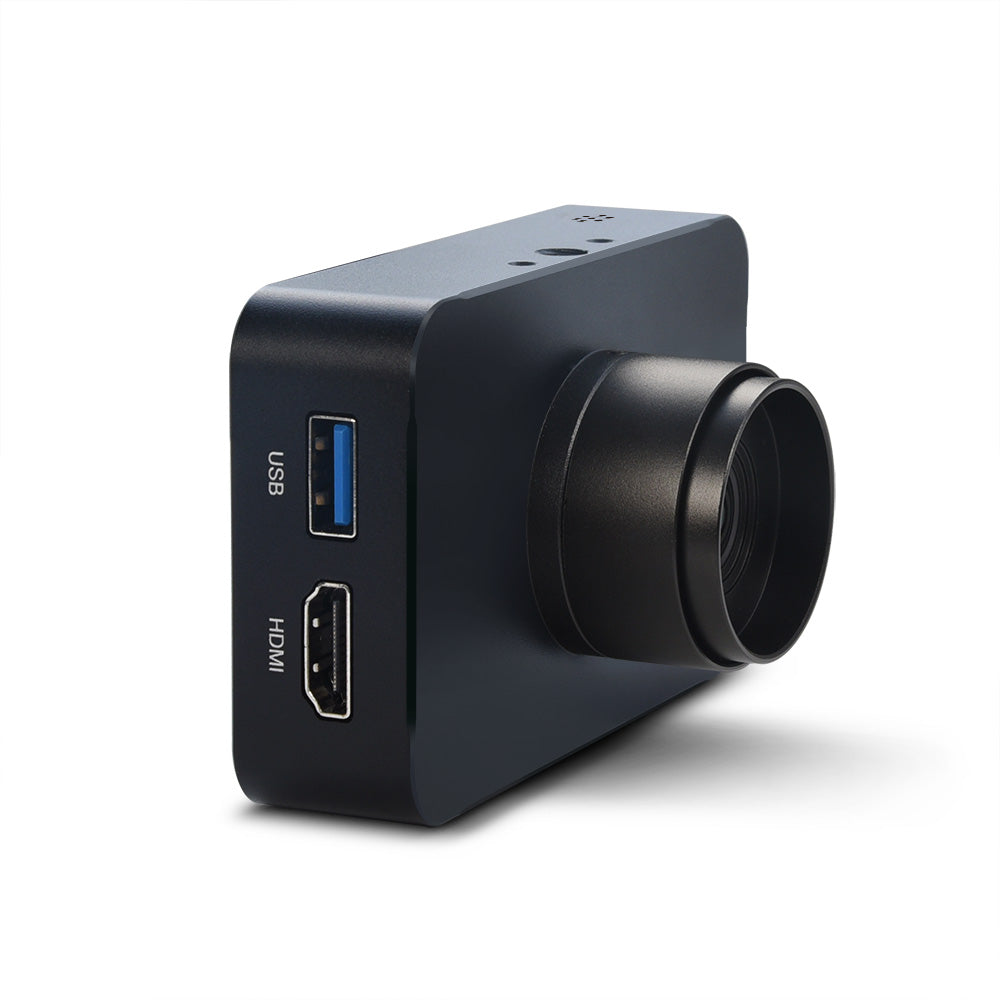

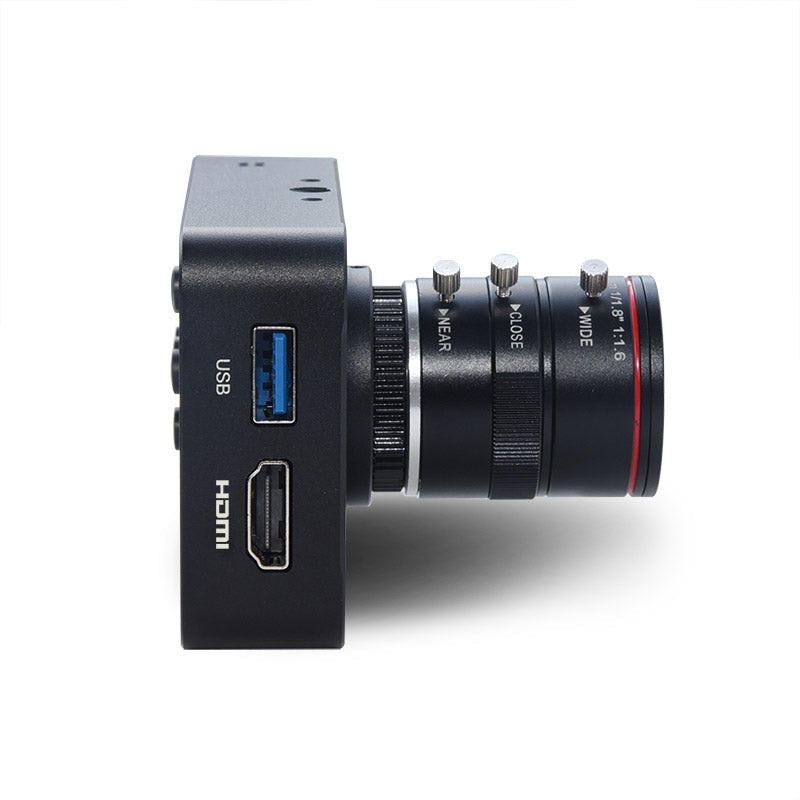

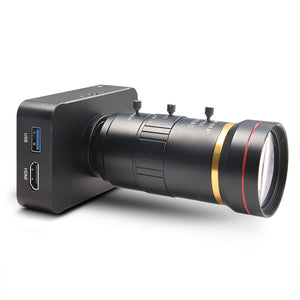

HDMI®/™ and USB double output.
| Camera Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
Model |
C100 |
|||||||
Sensor |
Sony IMX377 Exmor R CMOS 1/2.3” |
|||||||
Resolution |
12MP |
|||||||
Pixel Size |
1.55µm × 1.55µm |
|||||||
Record video resolution |
3840*2160@30FPS 、2560*1440@30FPS、1920*1080@60FPS、1920*1080@30FPS、1280*720@60FPS |
|||||||
Video Format |
MP4 |
|||||||
HDMI®/™ output |
2160P30/25/24fps, 1080P60/50/30/25fps, 1080i60/50fps, 720P60/50fps |
|||||||
USB output |
1920*1080@30FPS ，1280X720@30fps ，640X480@30fps |
|||||||
USB standard |
UVC / UAC |
|||||||
Support system |
Windows / OS X / Linux |
|||||||
Format |
YUV (HDMI®/™) , MJPEG (USB) |
|||||||
Audio |
Record video / Video Playback / USB Mode with Audio ，HDMI®/™ Real-time output without Audio |
|||||||
Audio off |
Support |
|||||||
Digital Zoom |
Support |
|||||||

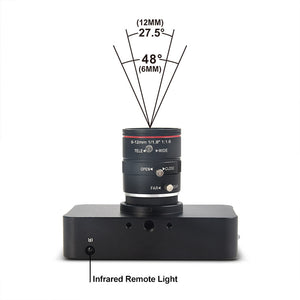

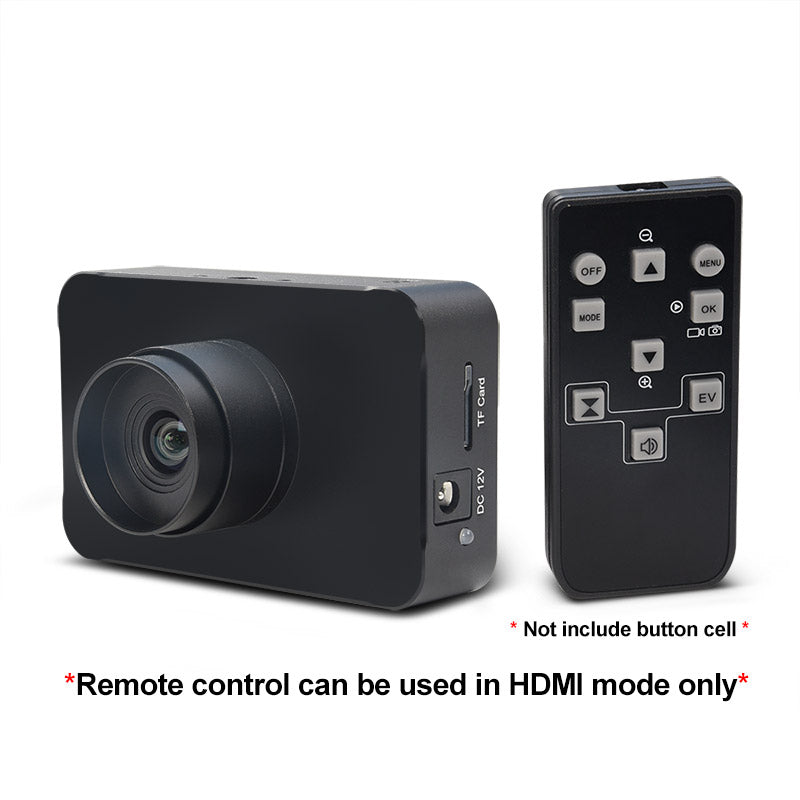

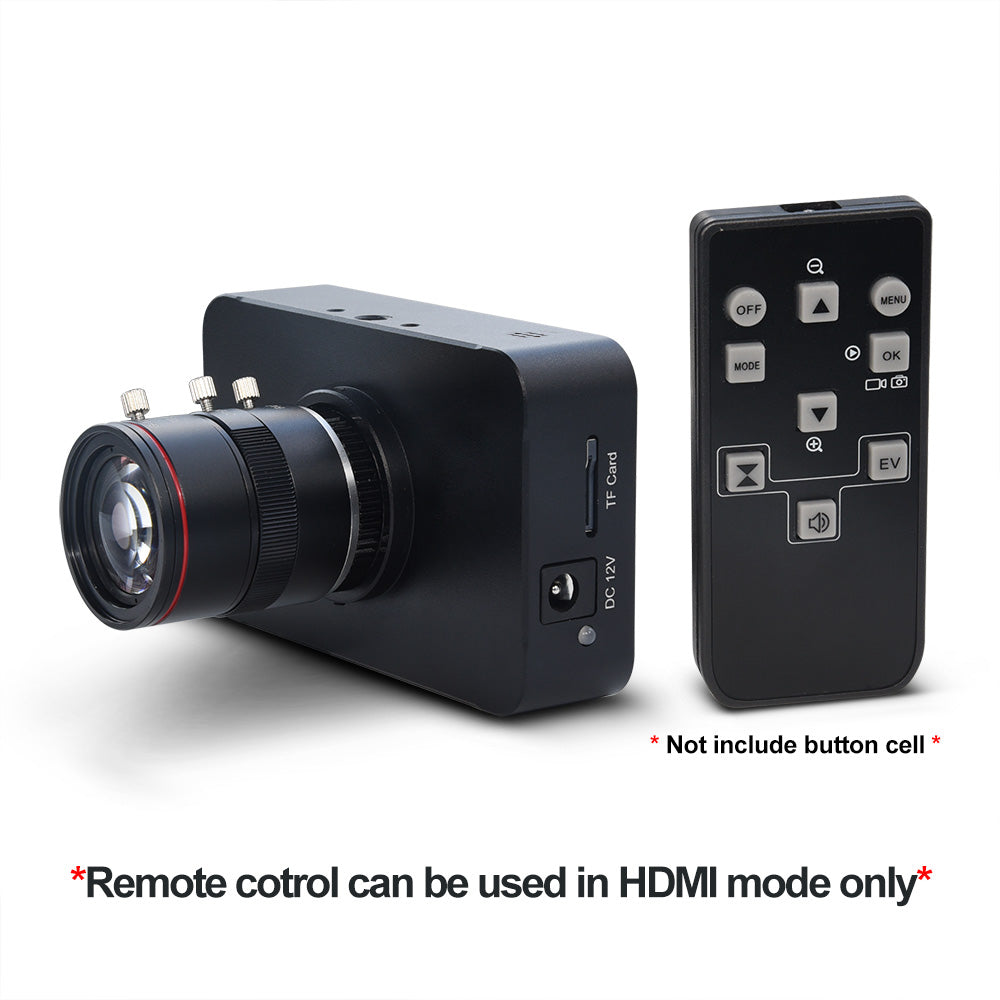

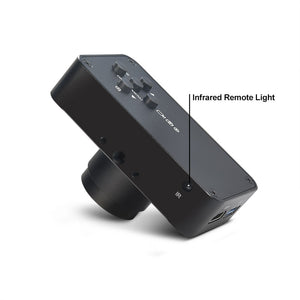

Remote control |
Support |
|||||||
Control distance |
About 5 Meters |
|||||||
Power on |
Auto Power On when plug ac adapter，Presscamera middle button power on when Power off |
|||||||
Power off |
Long press camera middle button power off， Remote control Power off |
|||||||

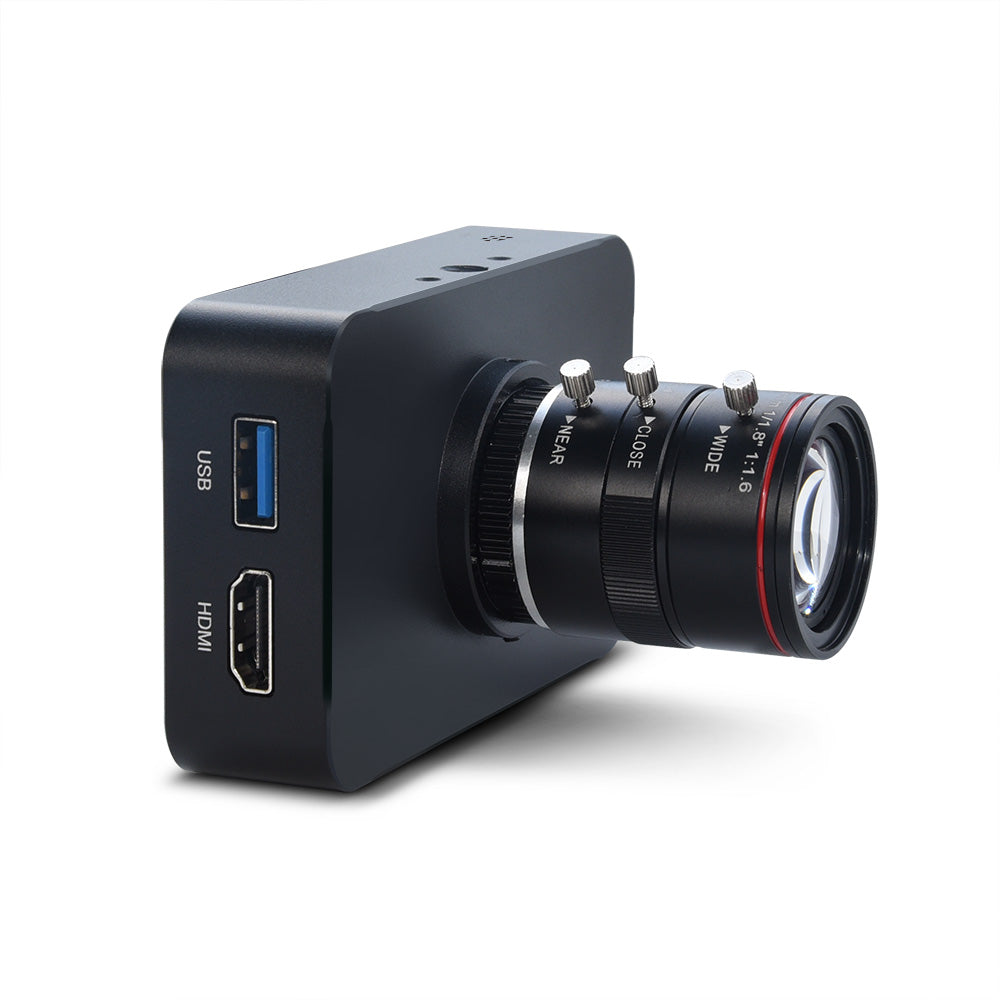

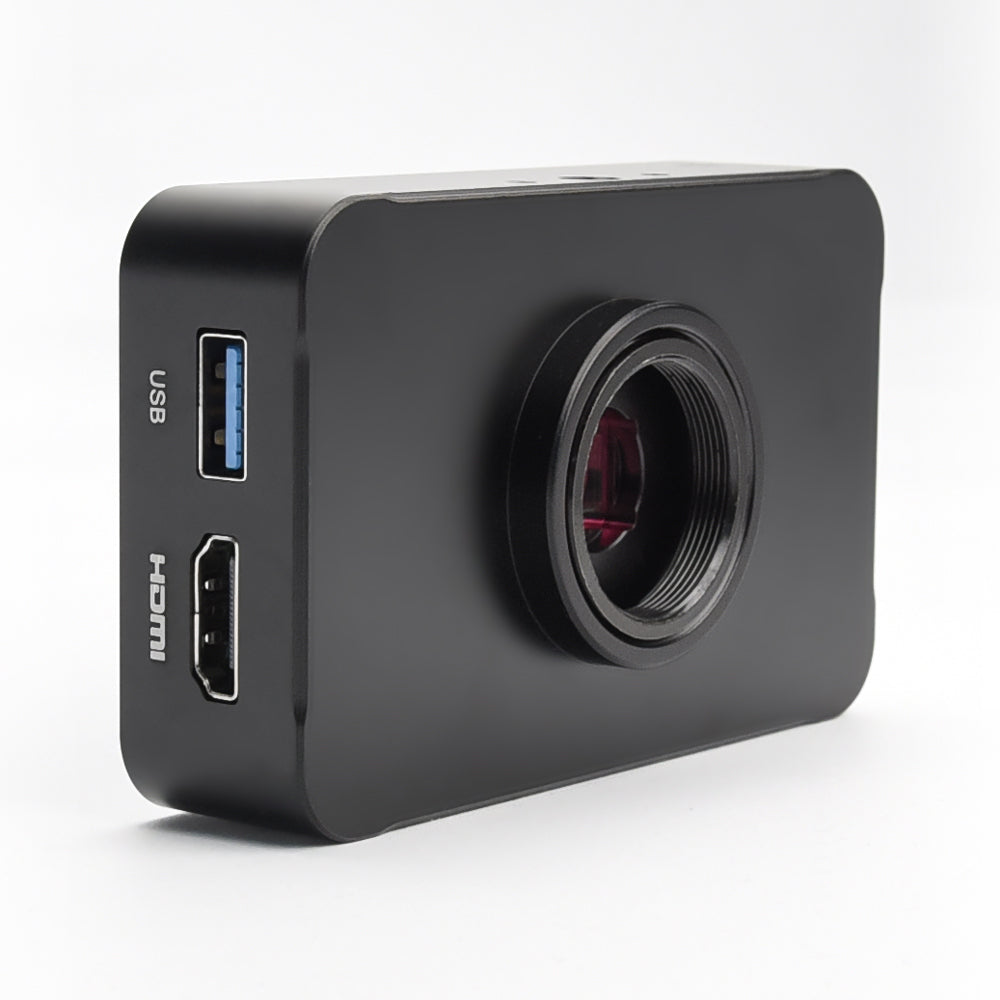

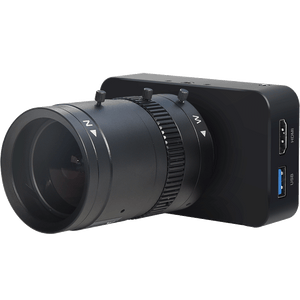

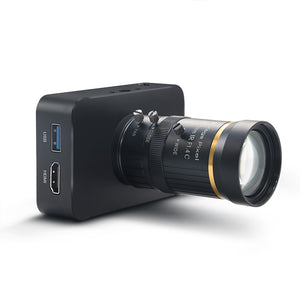

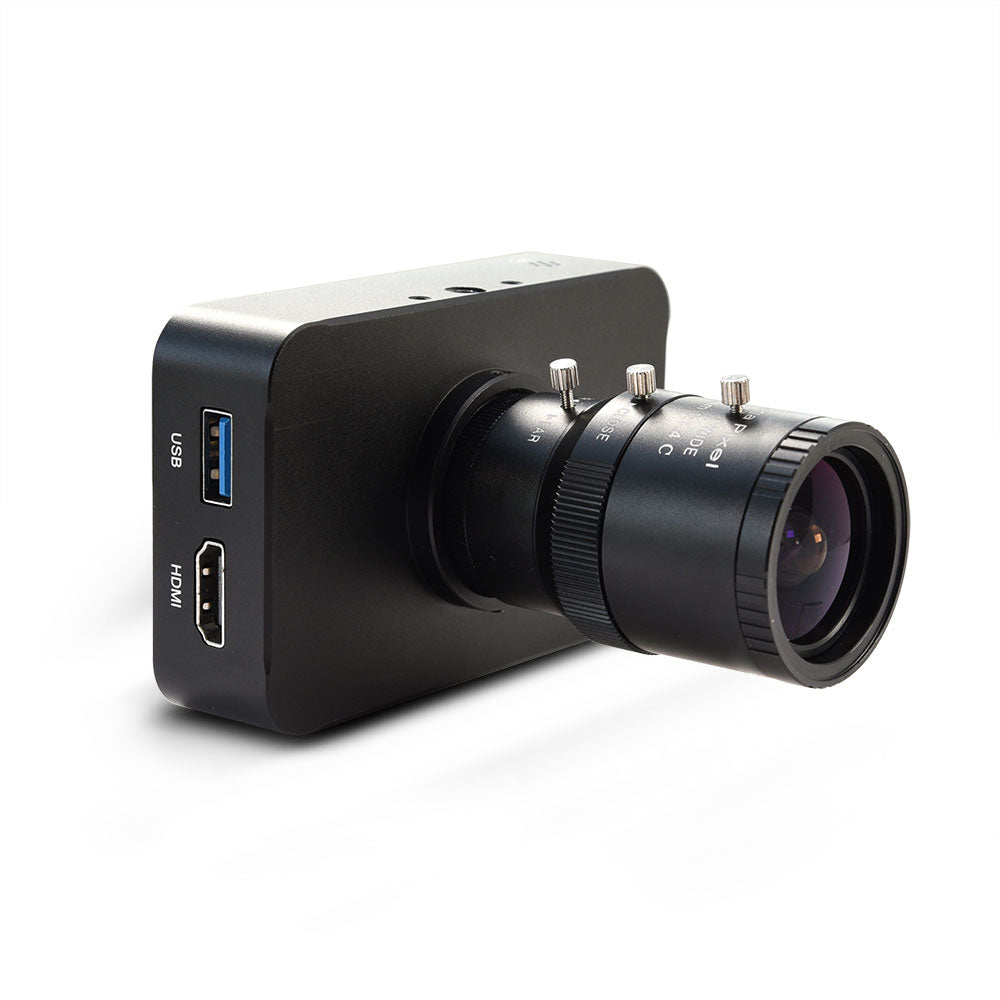

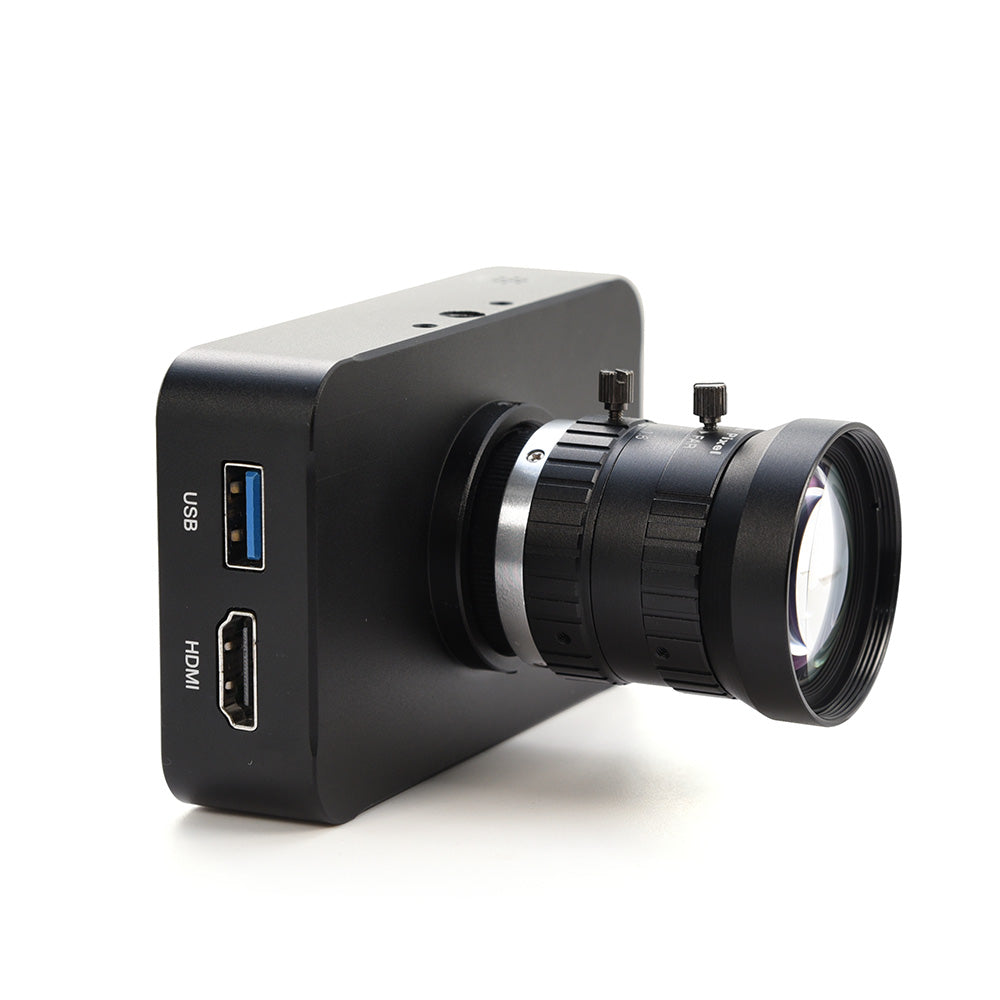

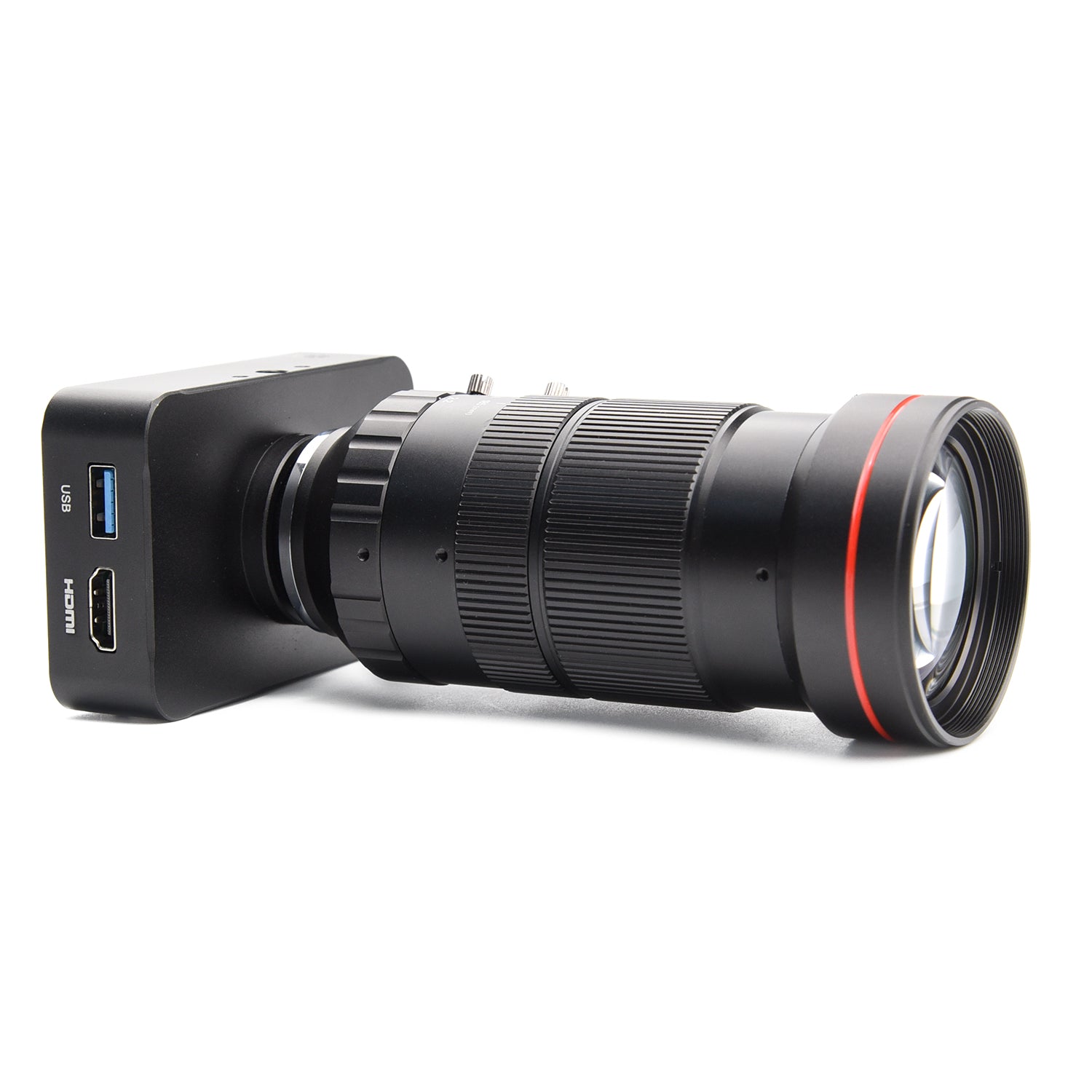

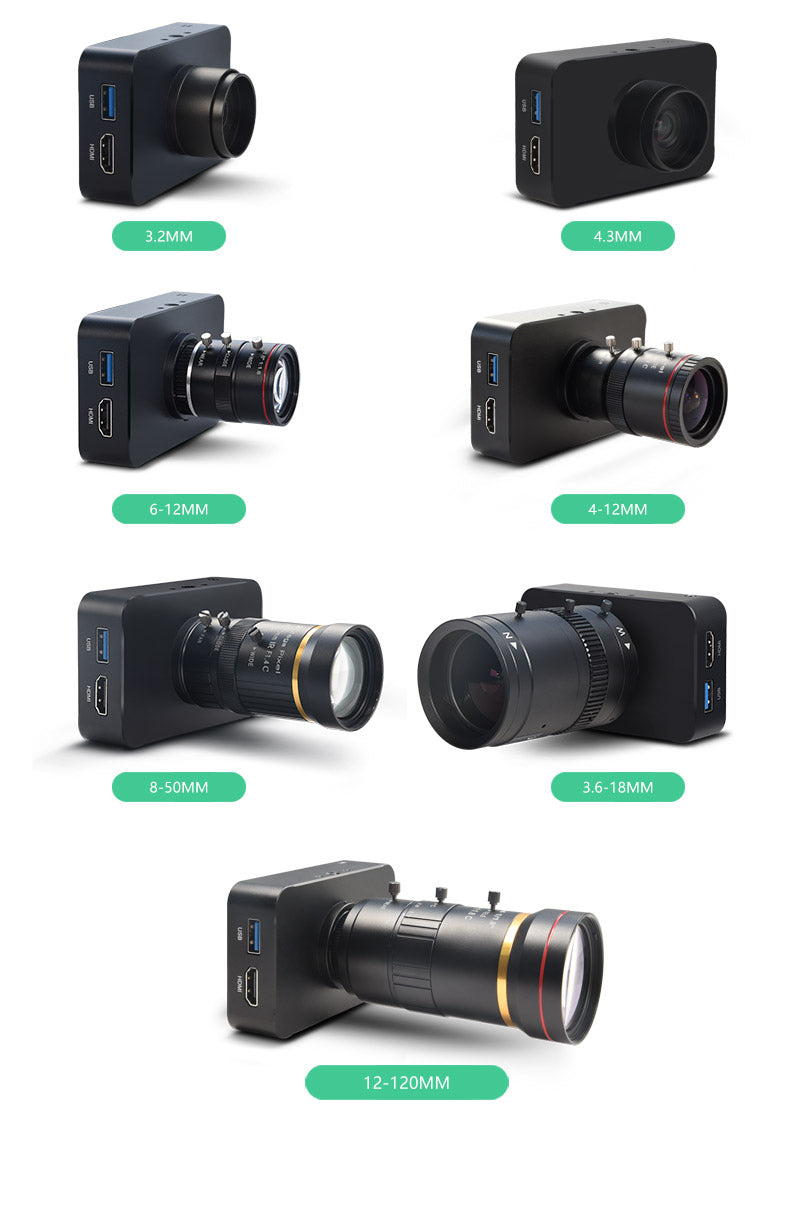

Lens |
C/CS Mount |
|||||||
Exposure |
Auto |
|||||||
EV（HDMI®/™ mode） |
Support 12 Level manual Settings |
|||||||
White balance |
Auto / Manual |
|||||||
Storage |
Support 256GB(Max) TF card |
|||||||
Frame Rate |
3840*2160@30FPS（14280MB/H）,2560*1440@30FPS（13209MB/H）、1920*1080@60FPS（7752MB/H）、1920*1080@30FPS（4050MB/H）、1280*720@60FPS（3432MB/H） |
|||||||

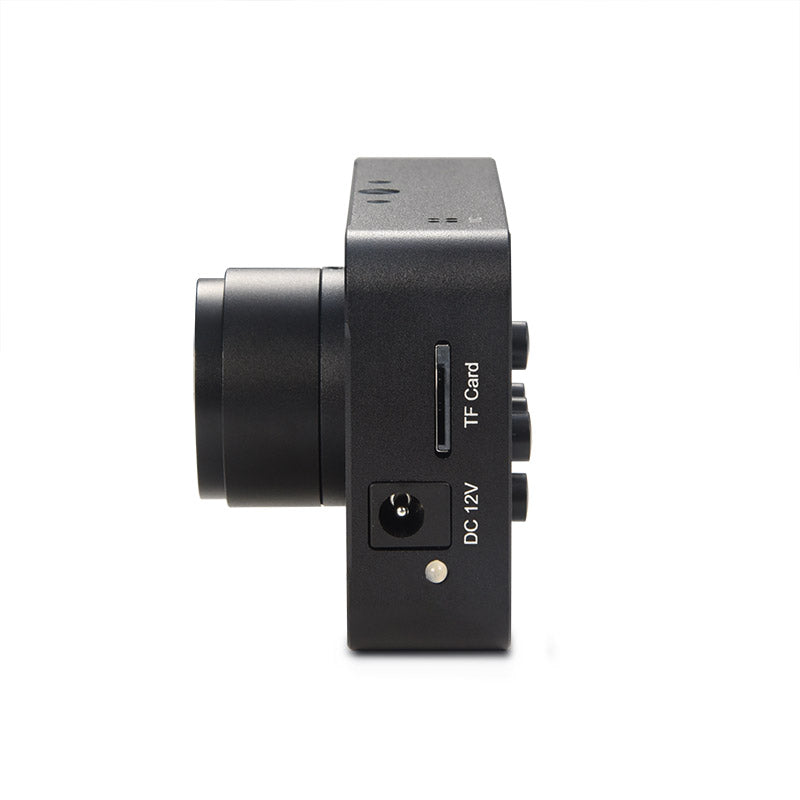

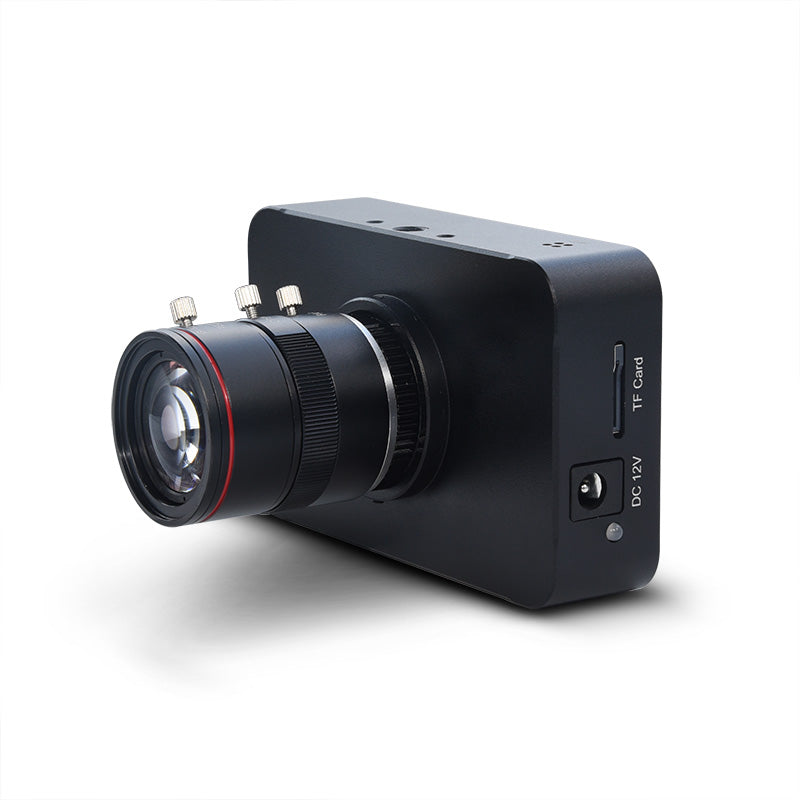

Power mode（HDMI®/™） |
DC 12V , 5V 2A thru USB interface（Such as Power bank） |
|||||||
Power mode（USB） |
USB power |
|||||||
Loop recording |
3 / 5 / 10 mins each documentLoop recording and OFF (10 mins each document) |
|||||||
screen orientation change |
Support screen rotation 180 degrees |
|||||||
Time Lapse |
0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2minutes, 5minutes, 30minutes, 1hour |
|||||||
Housing |
Metal |
|||||||
Operating temperature |
-10-85℃ |
|||||||

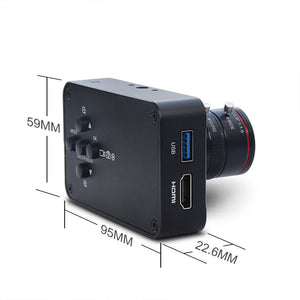

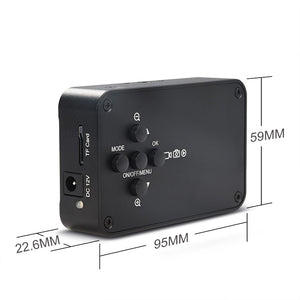

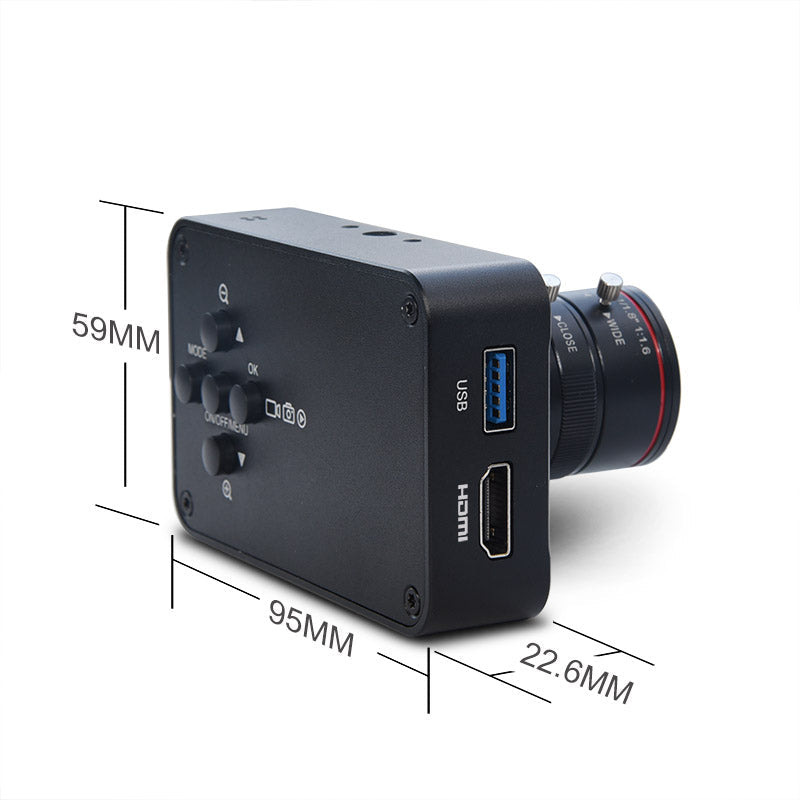

Product Size（Without lens） |
95*59*27.2MM |
|||||||
Product Weight（Without lens） |
146g |
|||||||
Package size |
15.2*13.3*9.5CM |
|||||||
