HD Video Quality - Can record 4K/30fps video ( HDMI Mode )， Build-in with 1/2.3" 12MP raw image Sony IMX377 Exmor R CMOS image sensor.
Support 3840*2160P/30/25/24fps HDMI output，Support 1080P60/50/30/25fps, 1080i60/50, 720P60fps HDMI output，Connect to a HDMI monitor capture video show on screen for teaching, or Connect to a HDMI video capture card for small activity Live Streaming.

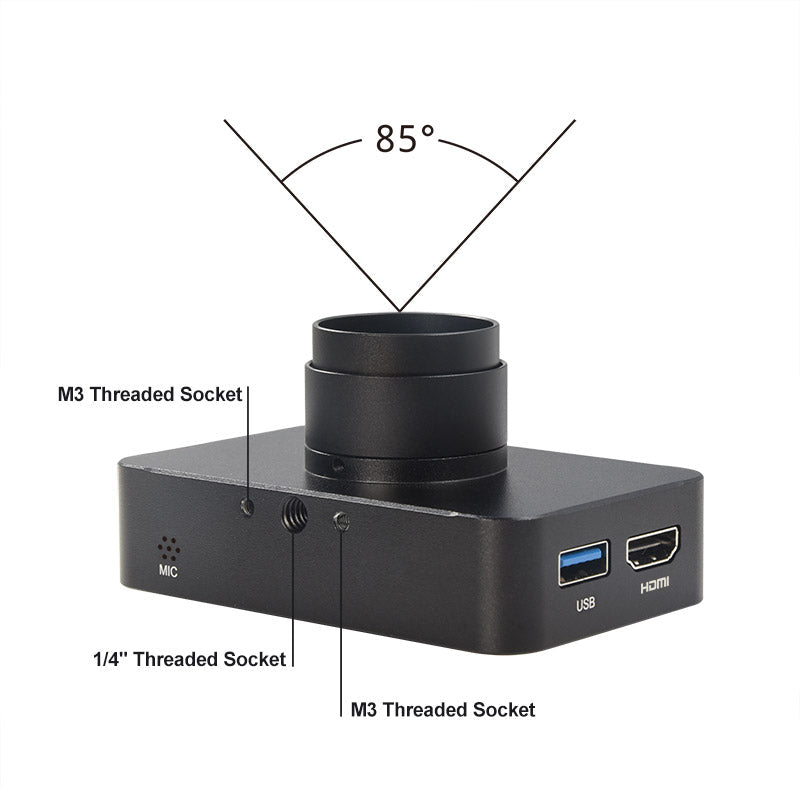

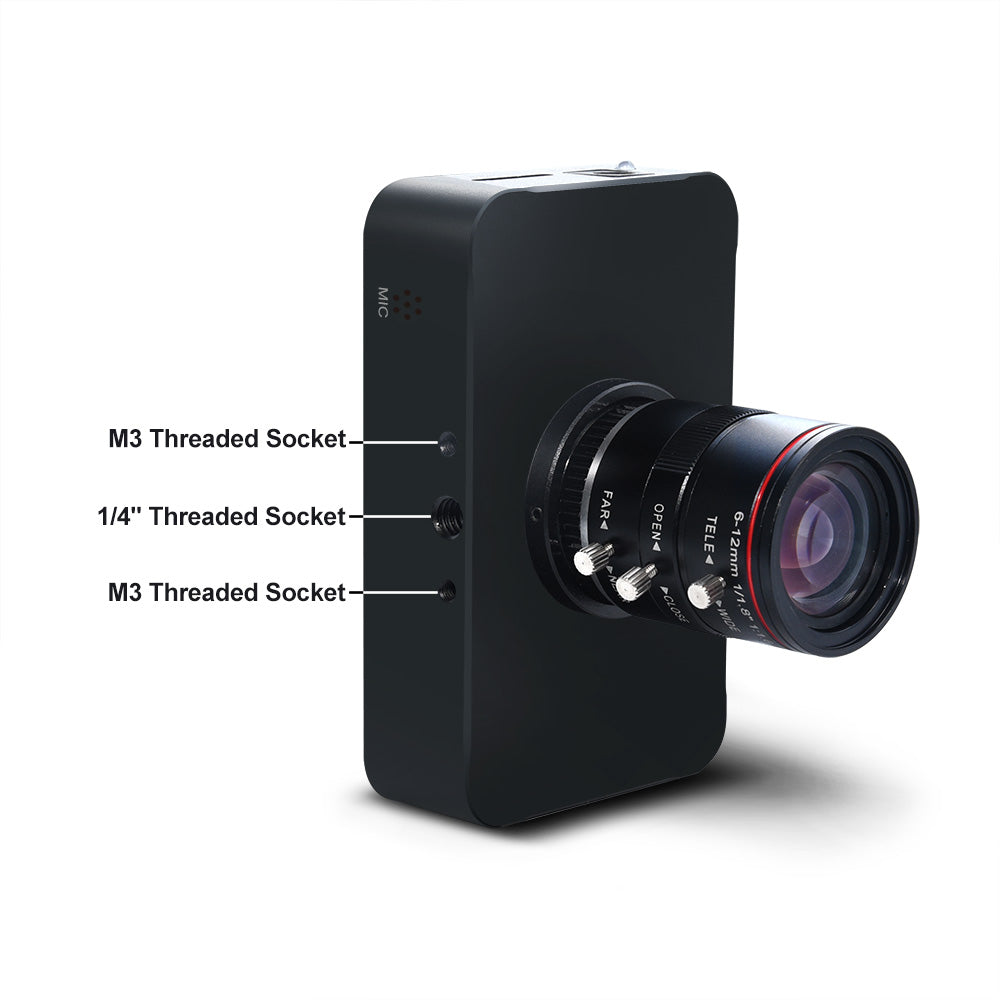

Solid aluminum shell material ,With 3 Meters USB cable. Double 1/4 Inch Screw Thread placement easier for multi-angels placement needs for monitors, laptop, desktop, desk and even other flat surfaces.
Playback-Support photos and videos playback thru HDMI output to Monitor with Audio.
Time Lapse Video recording, Support settings 0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2minutes, 5minutes, 30minutes, 1hour.

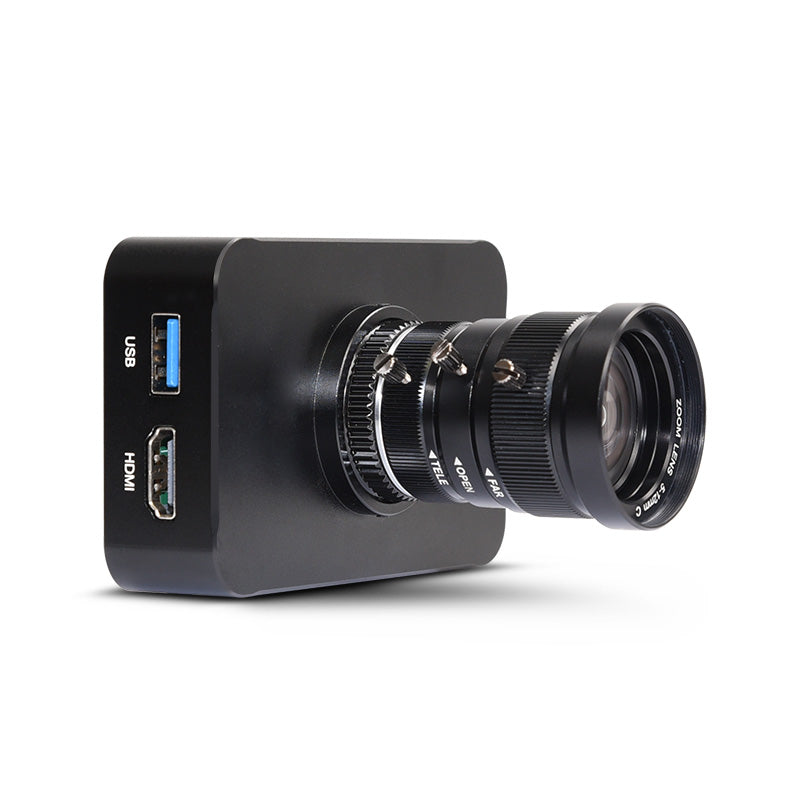

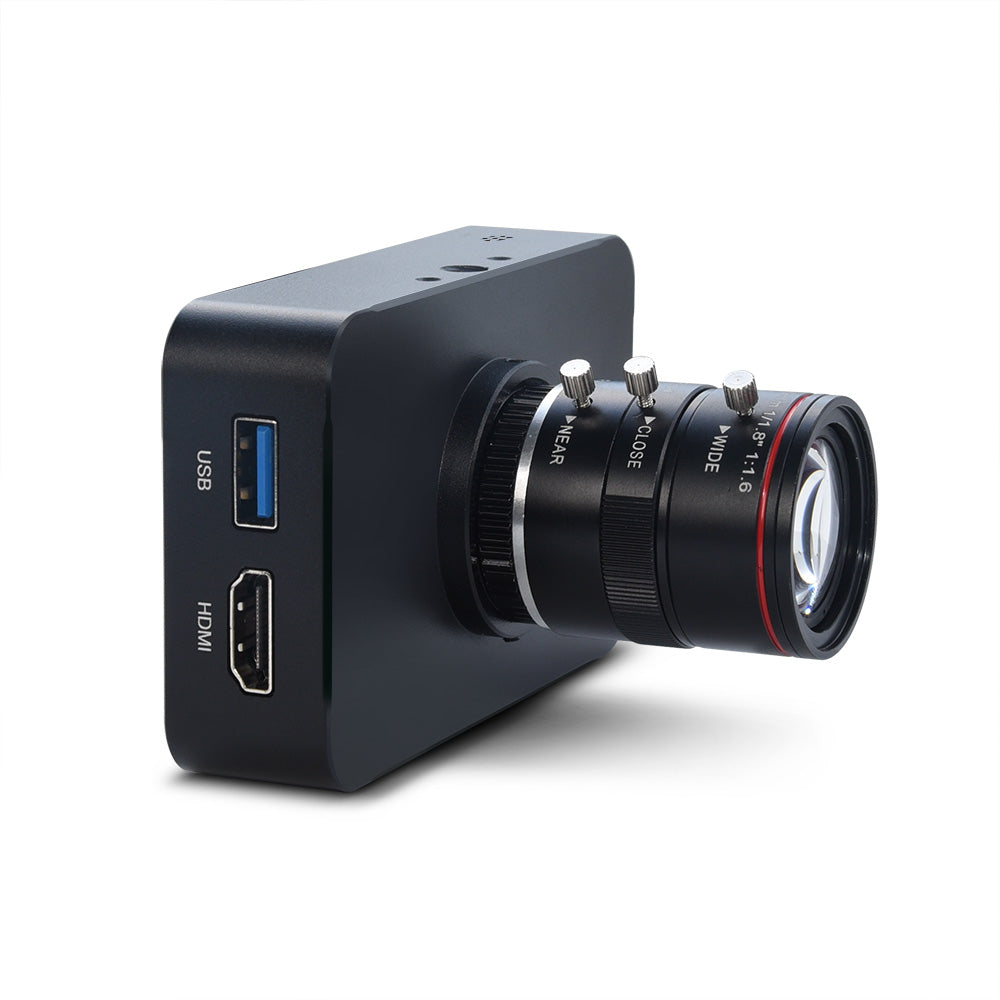

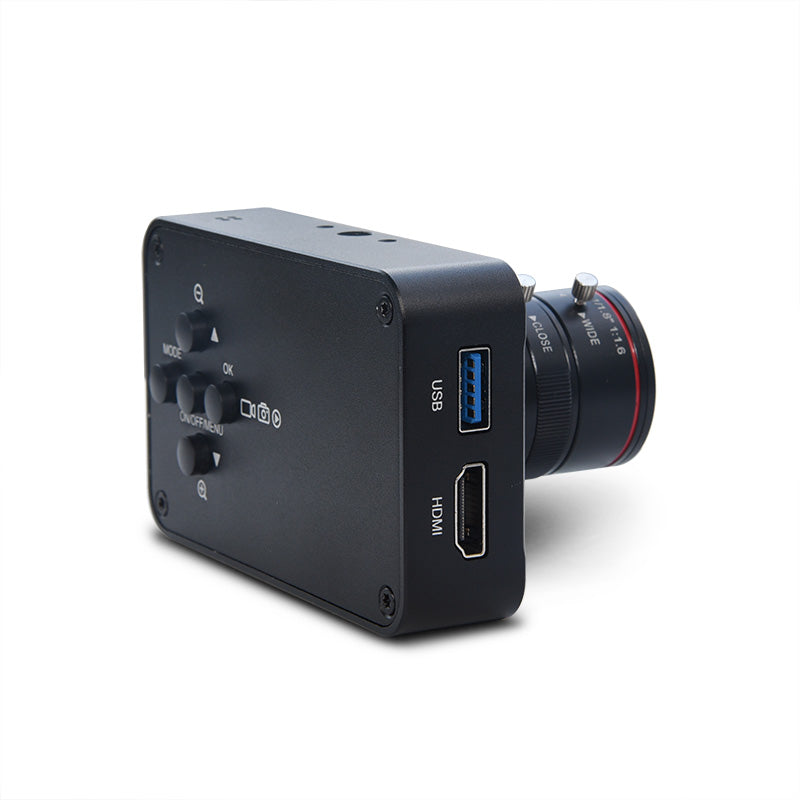

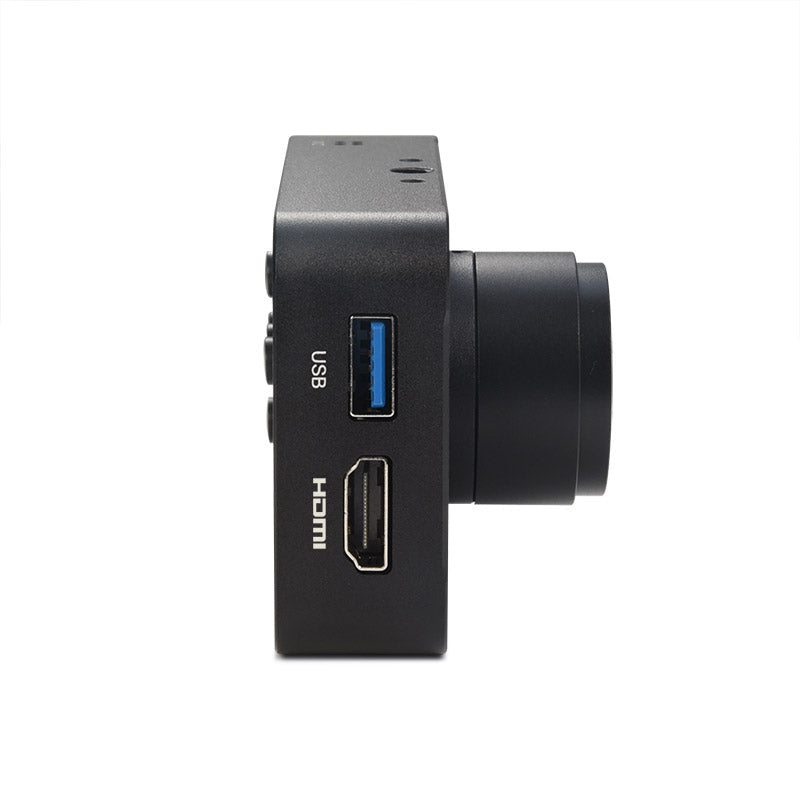

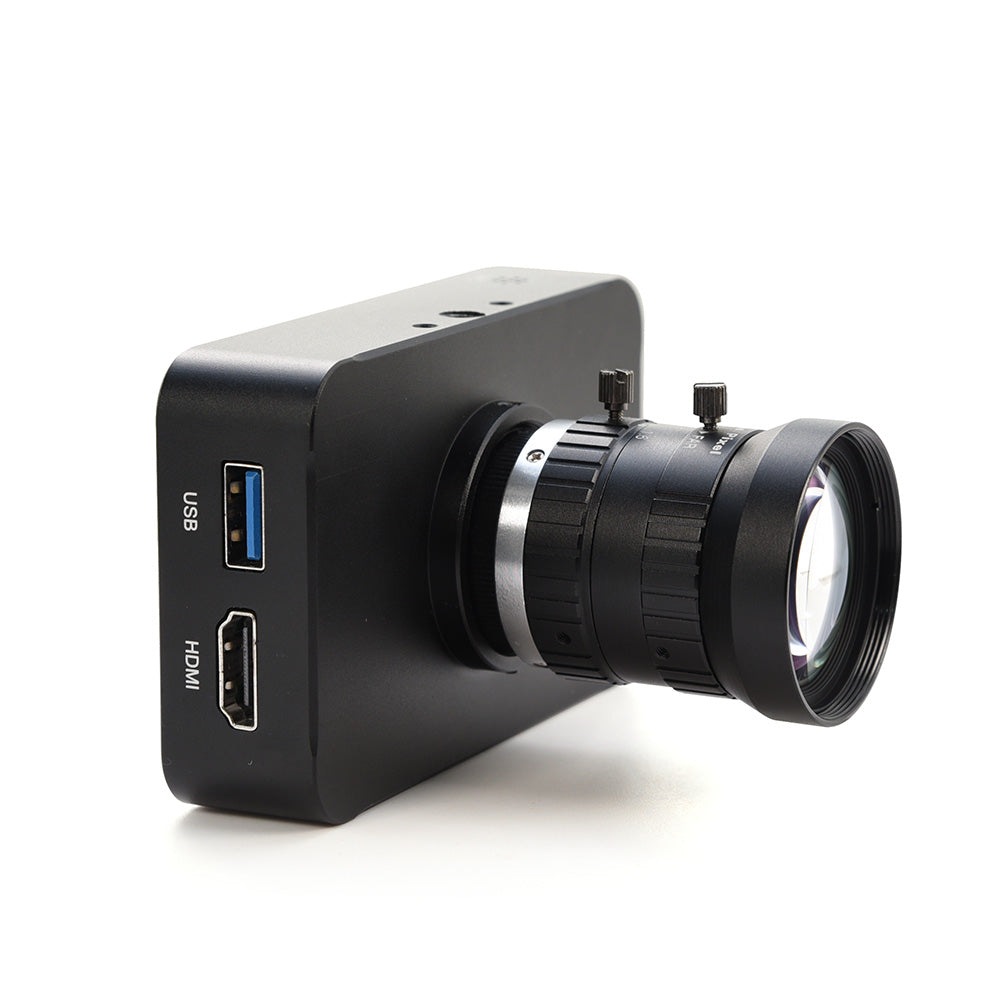

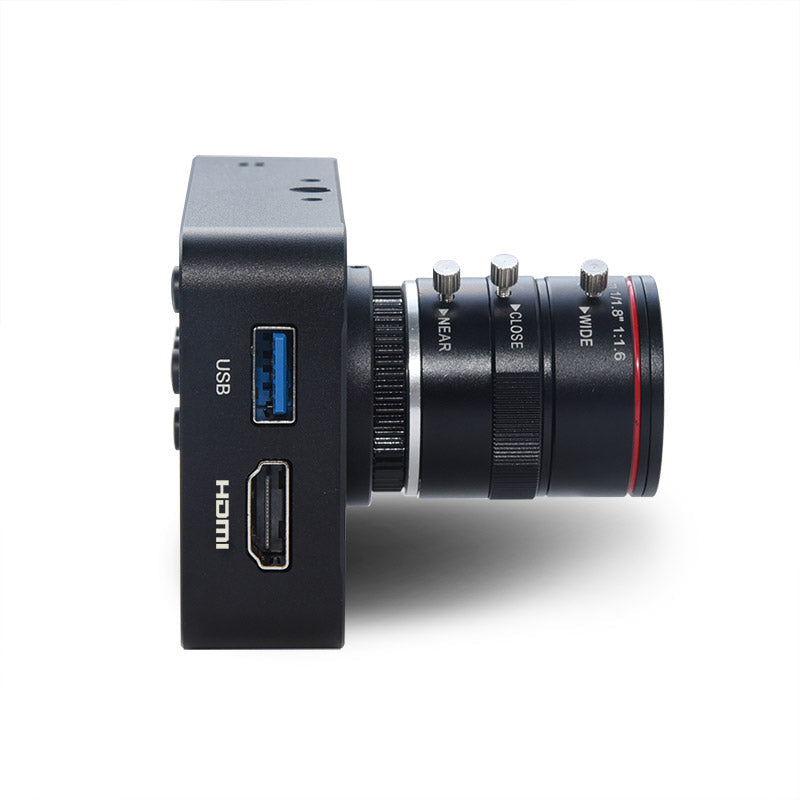

HDMI and USB double output.
| Camera Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | C100 | |||||||
| Sensor | Sony IMX377 Exmor R CMOS 1/2.3” | |||||||
| Resolution | 12MP | |||||||
| Pixel Size | 1.55µm × 1.55µm | |||||||
| Record video resolution | 3840*2160@30FPS 、2560*1440@30FPS、 1920*1080@60FPS、1920*1080@30FPS、1280*720@60FPS |
|||||||
| Video Format | MP4 | |||||||
| HDMI output | 2160P30/25/24fps, 1080P60/50/30/25fps, 1080i60/50fps, 720P60/50fps | |||||||
| USB output | 1920*1080@30FPS ，1280X720@30fps ，640X480@30fps | |||||||
| USB standard | UVC / UAC | |||||||
| Support system | Windows / OS X / Linux | |||||||
| Format | YUV (HDMI) , MJPEG (USB) | |||||||
| Audio | Record video / Video Playback / USB Mode with Audio ， HDMI Real-time output without Audio |
|||||||
| Audio off | Support | |||||||
| Digital Zoom | Support | |||||||

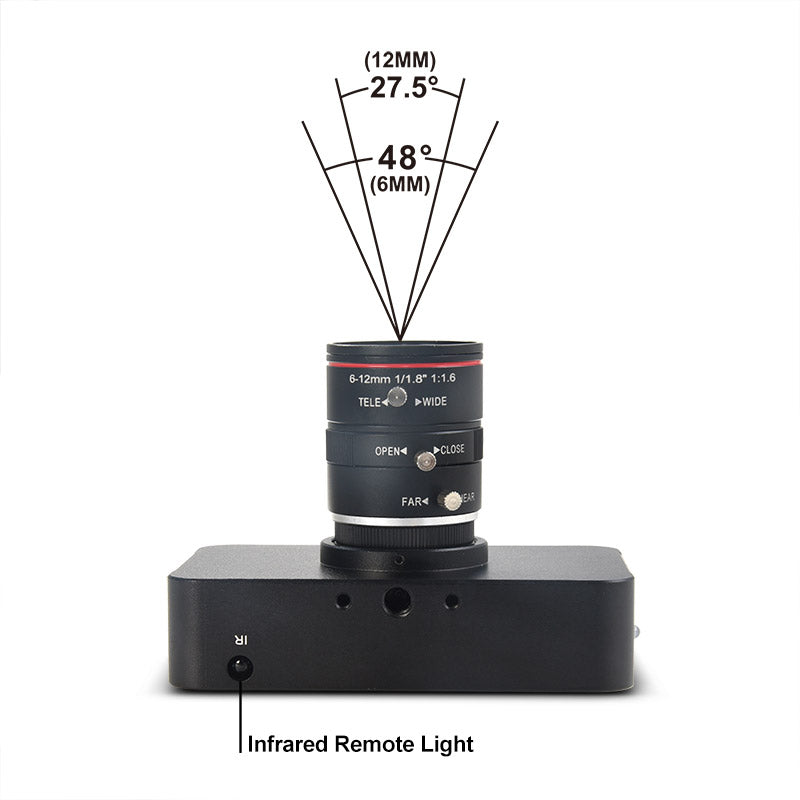

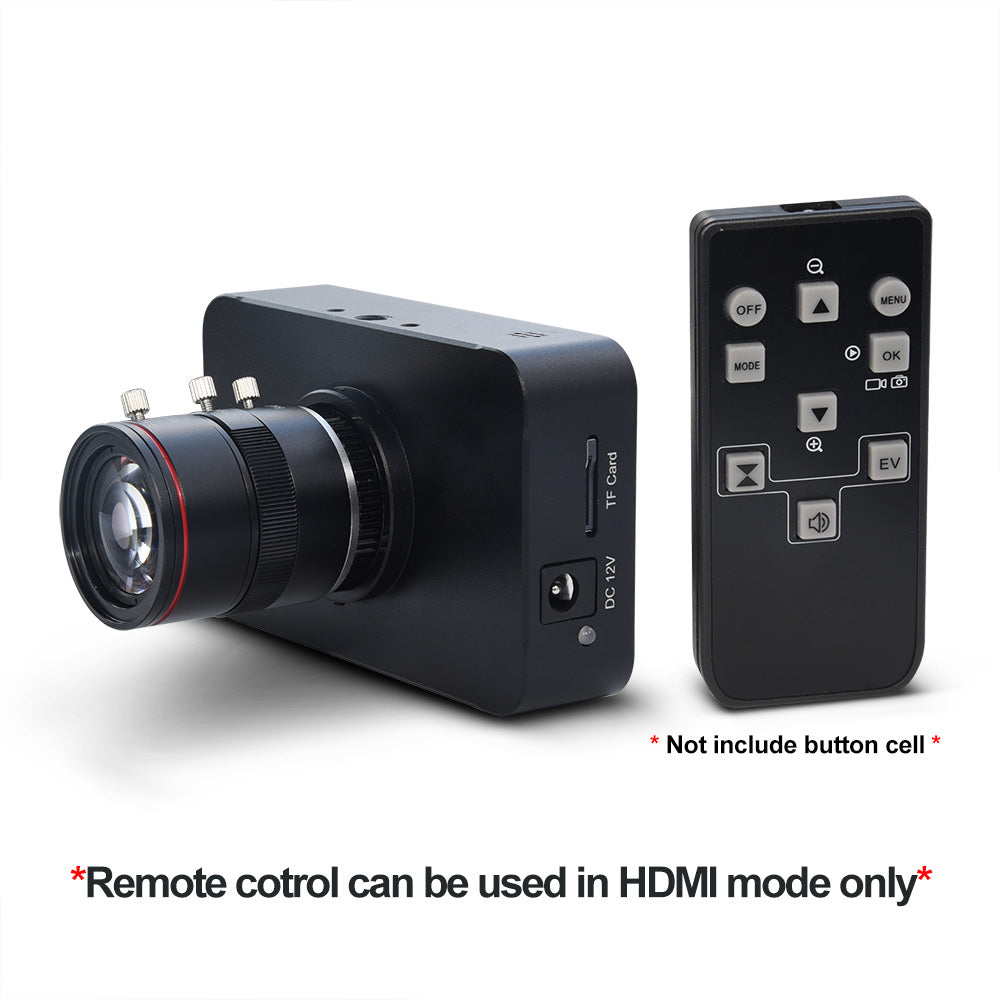

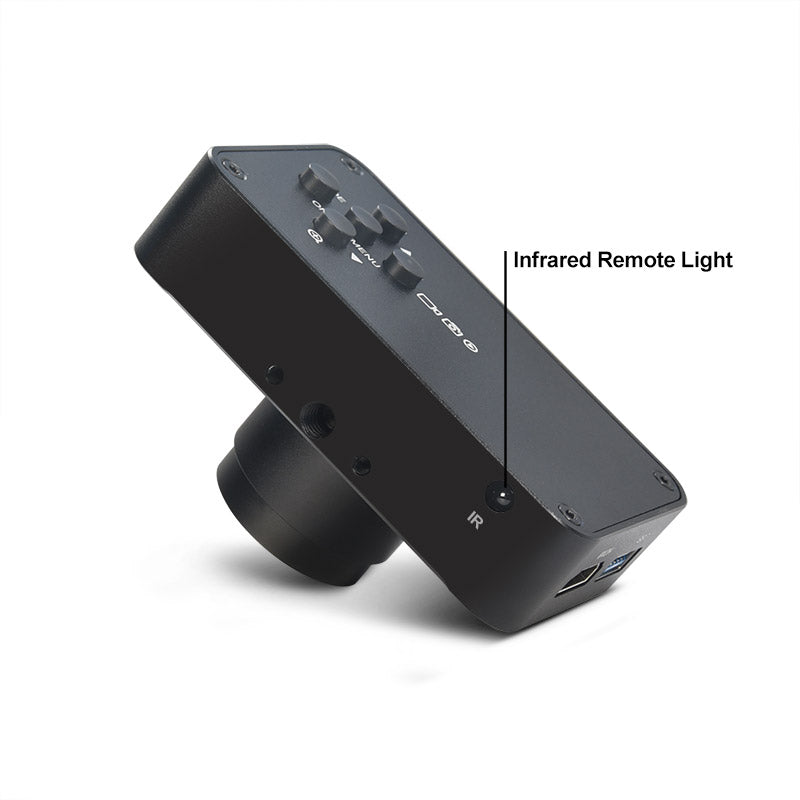

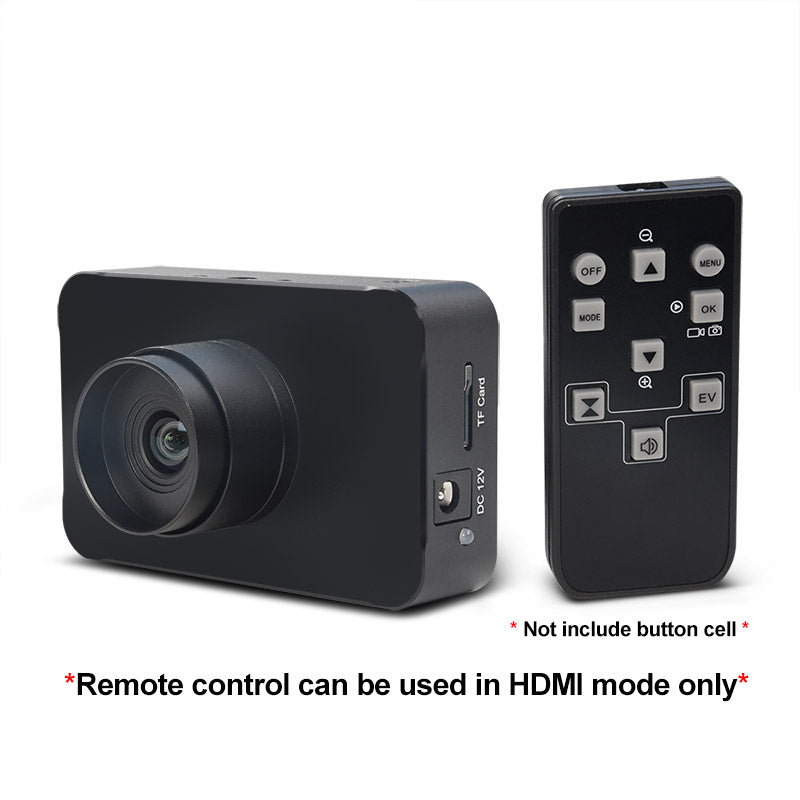

| Remote control |
Support | |||||||
| Control distance | About 5 Meters | |||||||
| Power on | Auto Power On when plug ac adapter，Press camera middle button power on when Power off |
|||||||
| Power off | Long press camera middle button power off， Remote control Power off | |||||||

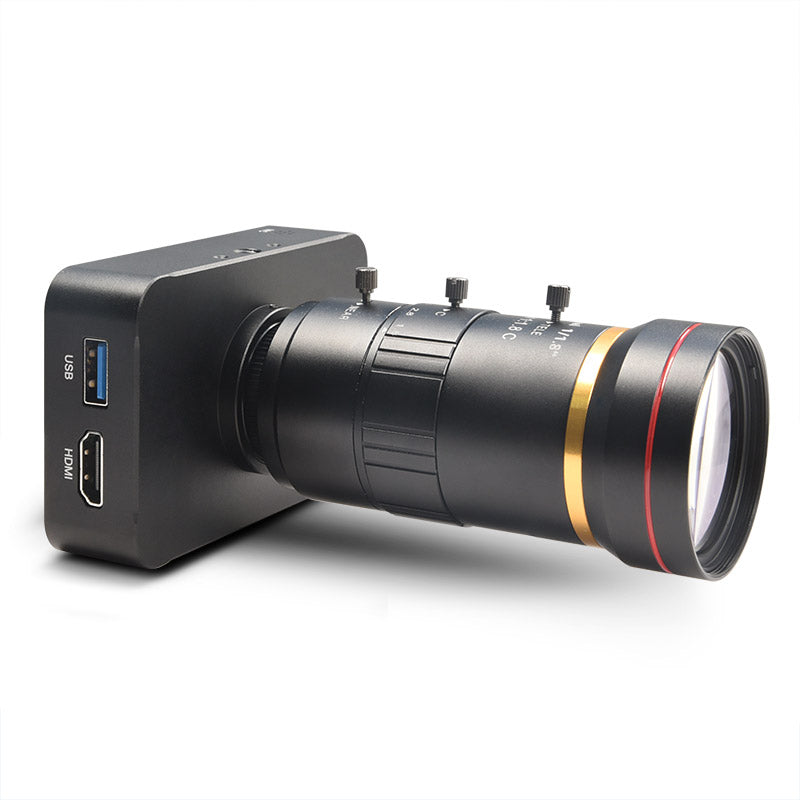

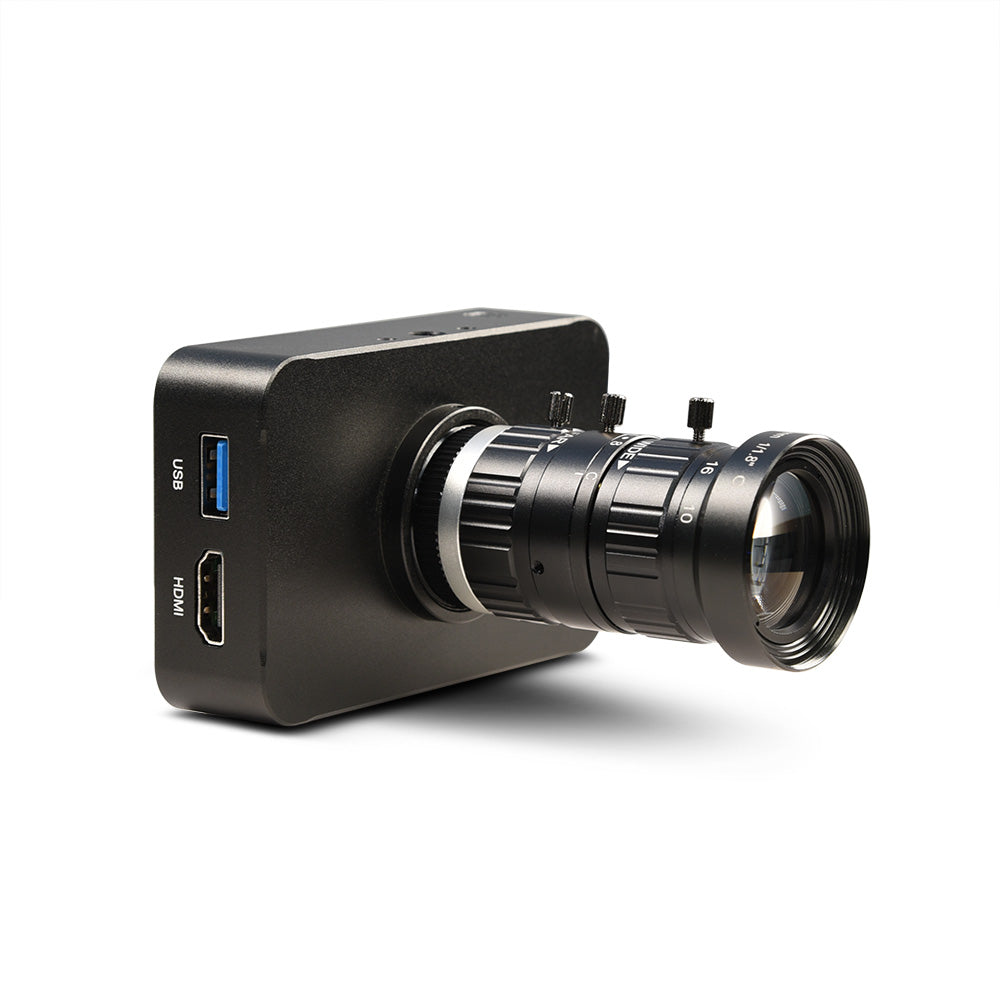

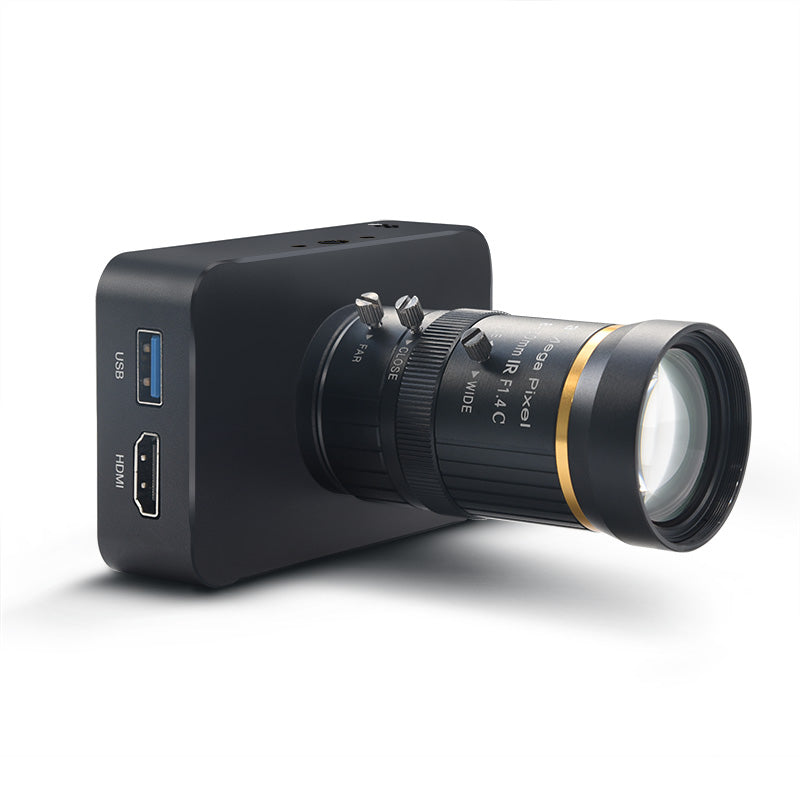

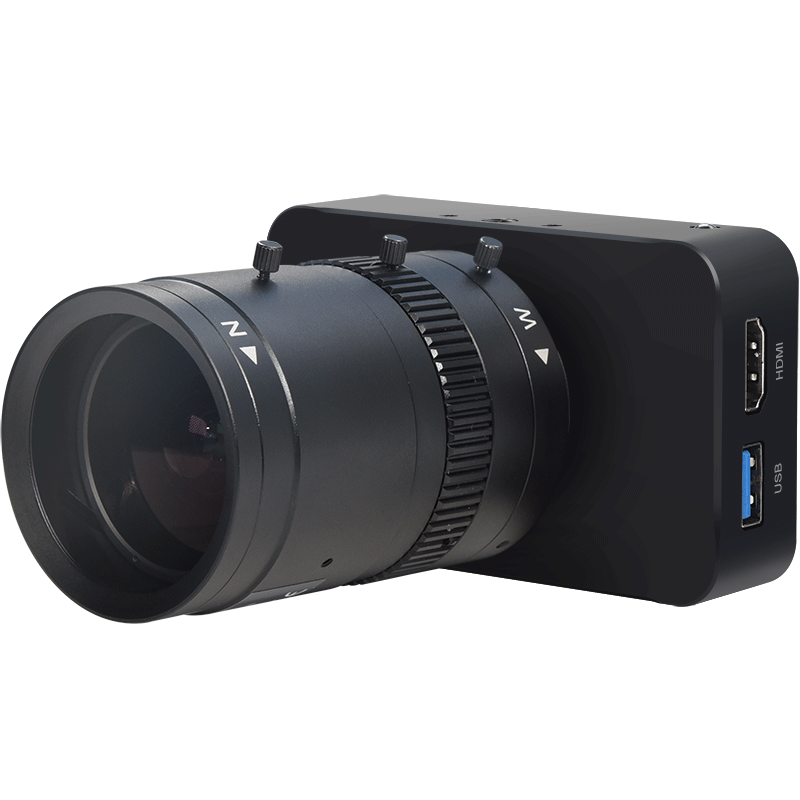

| Lens | C/CS Mount | |||||||
| Exposure | Auto | |||||||
| EV（HDMI mode） | Support 12 Level manual Settings | |||||||
| White balance | Auto / Manual | |||||||

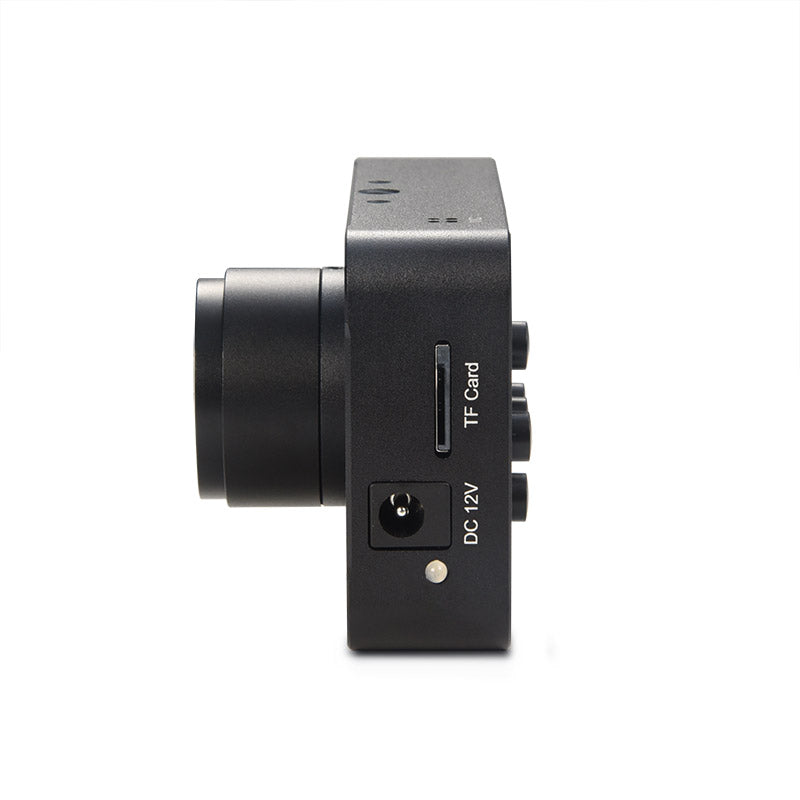

| Storage | Support 256GB(Max) TF card | |||||||
| Frame Rate | 3840*2160@30FPS（14280MB/H）,2560*1440@30FPS（13209MB/H）、 1920*1080@60FPS（7752MB/H）、1920*1080@30FPS（4050MB/H）、 1280*720@60FPS（3432MB/H） |
|||||||

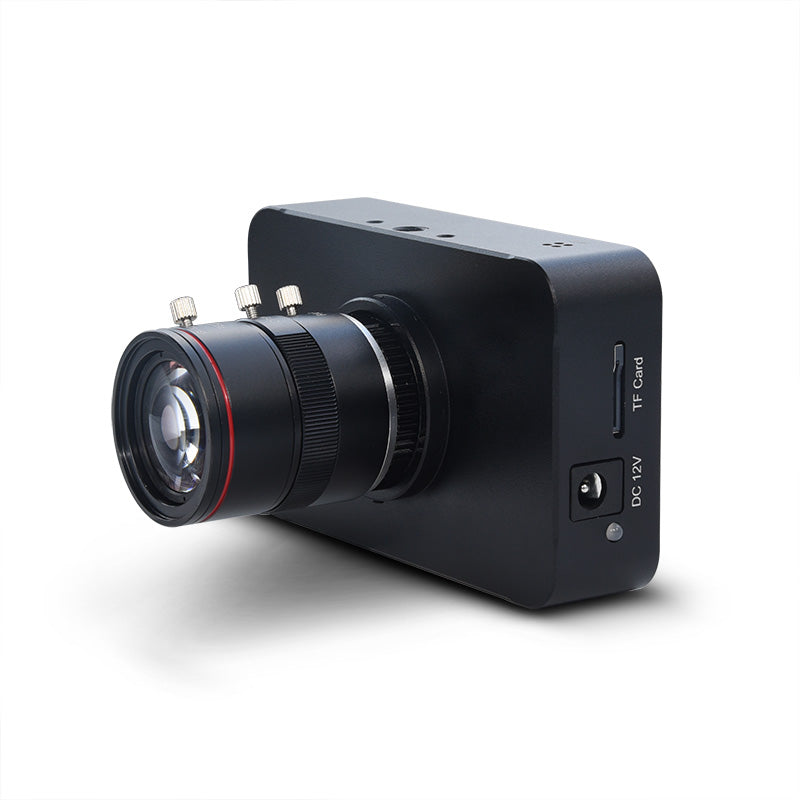

| Power mode（HDMI） | DC 12V , 5V 2A thru USB interface（Such as Power bank） | |||||||
| Power mode（USB） | USB power | |||||||
| Loop recording | 3 / 5 / 10 mins each document Loop recording and OFF (10 mins each document) |
|||||||
| screen orientation change | Support screen rotation 180 degrees | |||||||
| Time Lapse | 0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2minutes, 5minutes, 30minutes, 1hour | |||||||
| Housing | Metal | |||||||
| Operating temperature | -10-85℃ | |||||||

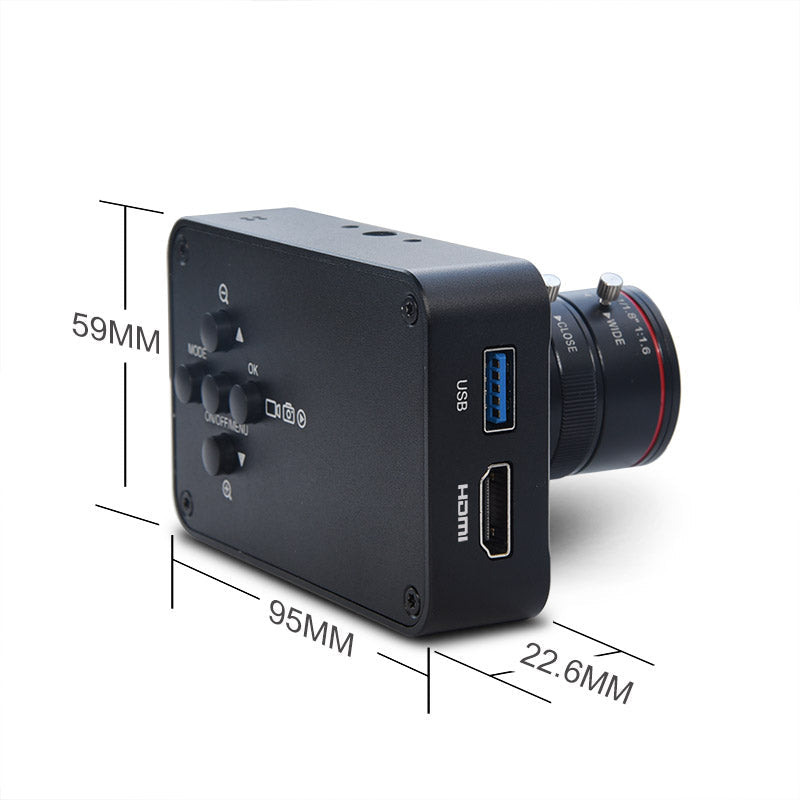

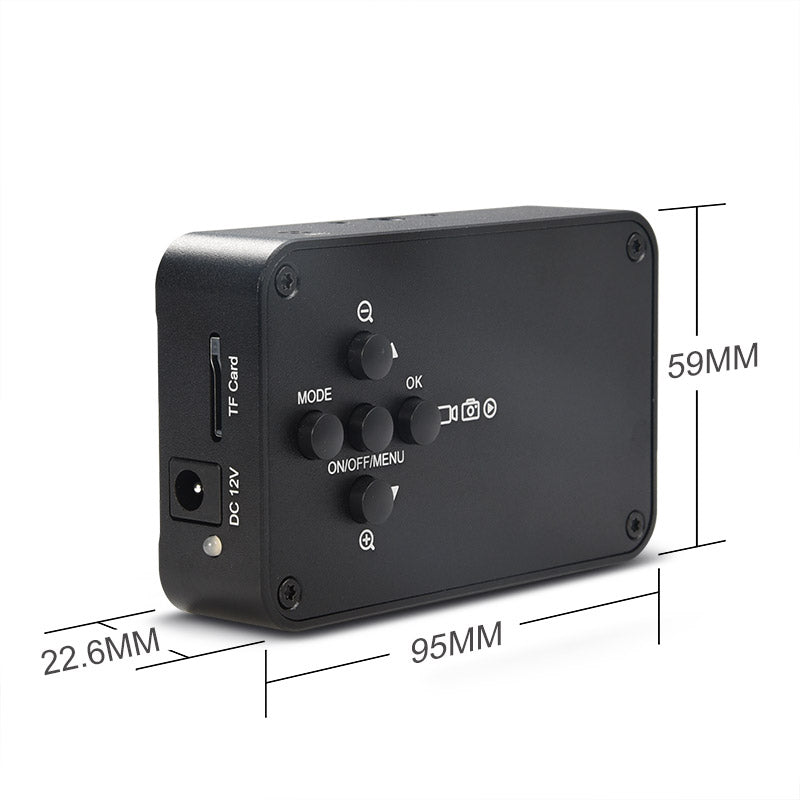

| Product Size （Without lens） |
95*59*27.2MM | |||||||
| Product Weight （Without lens） |
146g | |||||||
| Package size | 15.2*13.3*9.5CM | |||||||
