MOKOSE 4K Digital Camera 3840*2160/30FPS HDMI 3G-SDI 1080P USB Webcam with C/CS-Mount Manual Lens
MOKOSE 4K Digital Camera 3840*2160/30FPS HDMI 3G-SDI 1080P USB Webcam with C/CS-Mount Manual Lens
MOKOSE 4K Digital Camera 3840*2160/30FPS HDMI 3G-SDI 1080P USB Webcam with C/CS-Mount Manual Lens
MOKOSE 4K Digital Camera 3840*2160/30FPS HDMI 3G-SDI 1080P USB Webcam with C/CS-Mount Manual Lens
MOKOSE 4K Digital Camera 3840*2160/30FPS HDMI 3G-SDI 1080P USB Webcam with C/CS-Mount Manual Lens
MOKOSE 4K Digital Camera 3840*2160/30FPS HDMI 3G-SDI 1080P USB Webcam with C/CS-Mount Manual Lens
MOKOSE 4K Digital Camera 3840*2160/30FPS HDMI 3G-SDI 1080P USB Webcam with C/CS-Mount Manual Lens
MOKOSE 4K Digital Camera 3840*2160/30FPS HDMI 3G-SDI 1080P USB Webcam with C/CS-Mount Manual Lens

MOKOSE 4K Digital Camera 3840*2160/30FPS HDMI 3G-SDI 1080P USB Webcam with C/CS-Mount Manual Lens

Regular price
$205.00
Sale price
$205.00
Unit price
per
Shipping calculated at checkout.

HD Video Quality - Can record 4K/30fps video, Build-in with 1/2.3" 12MP raw image Sony IMX577 Exmor R CMOS image sensor.

The camera has a built-in microphone. In order to obtain better audio, the camera can also connect to an external independent microphone, and can connect a wireless microphone to capture audio from a long distance. HDMI and SDI output without audio.

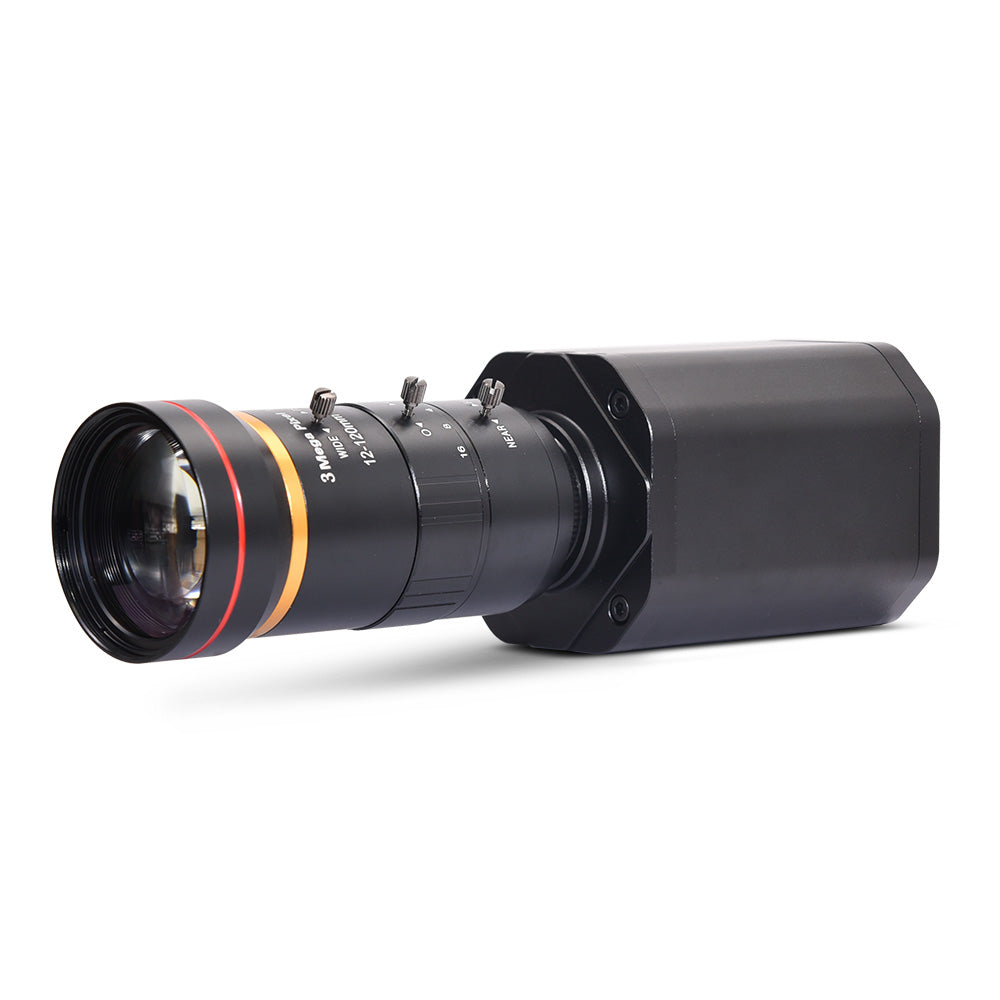

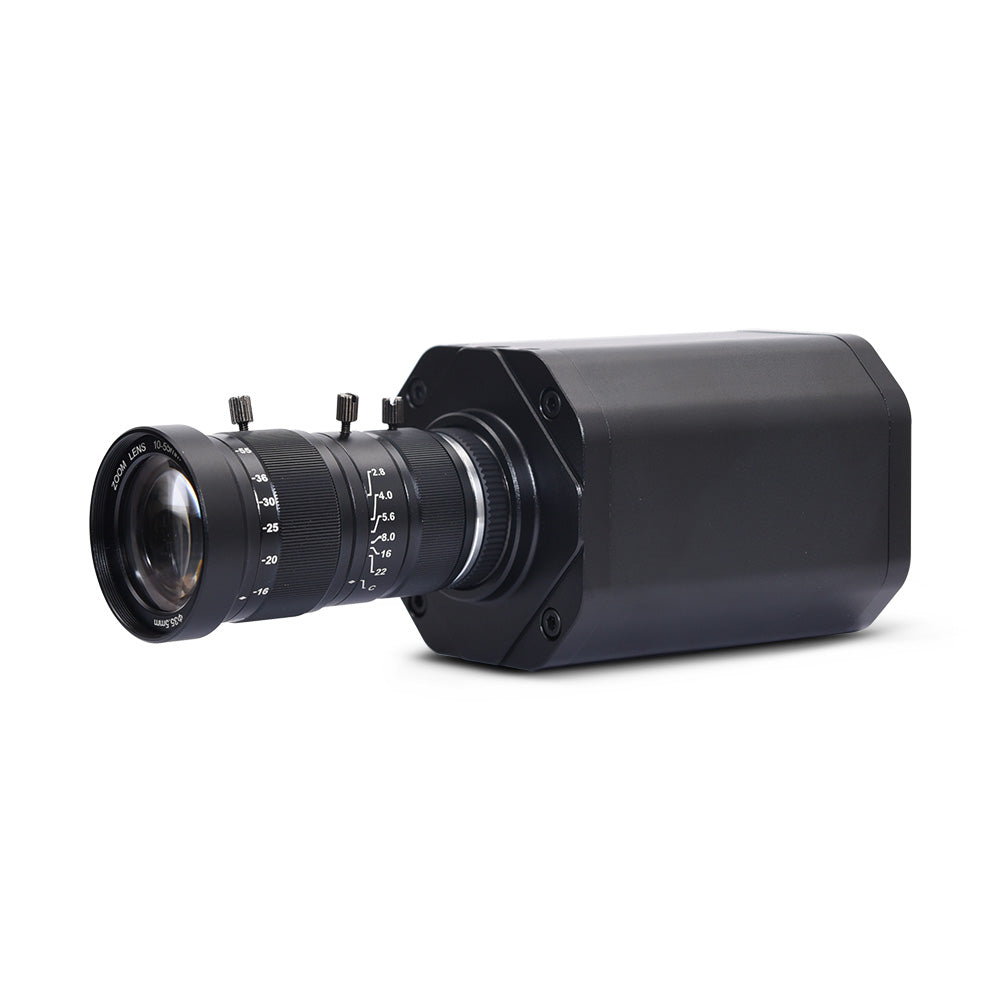

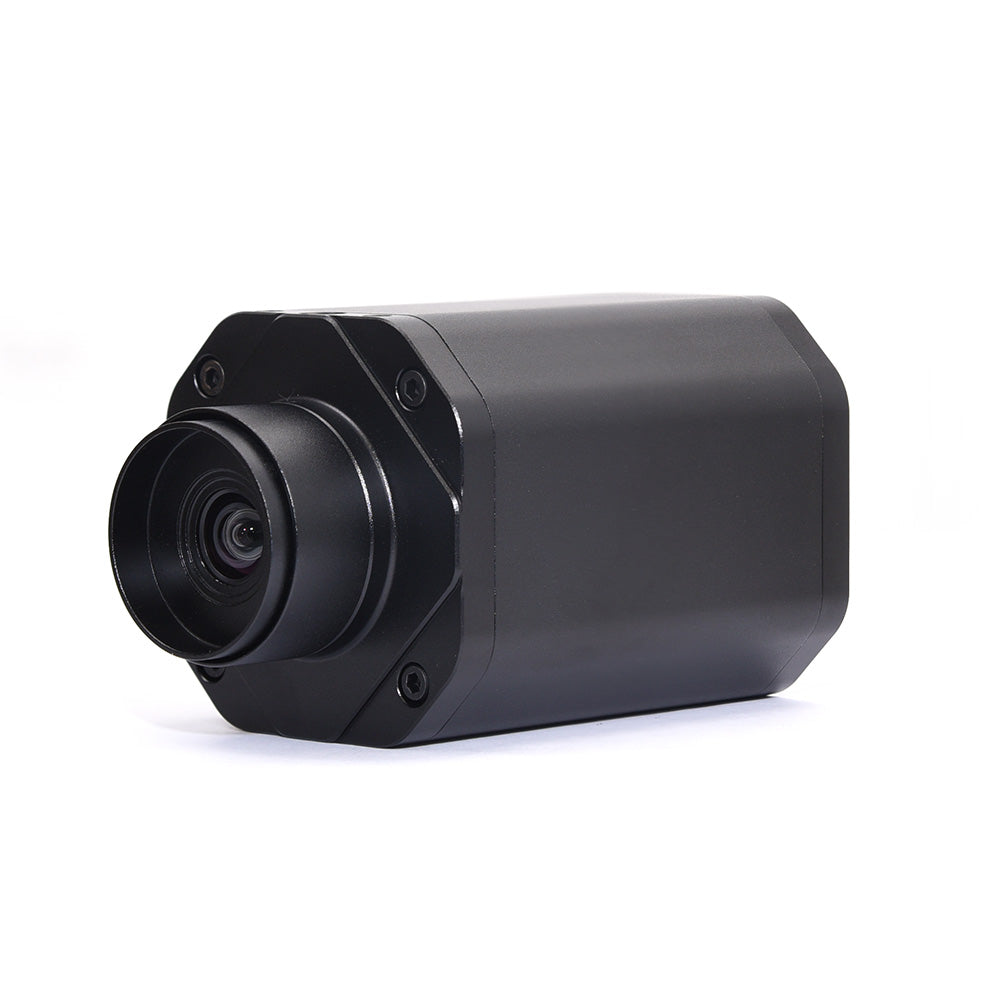

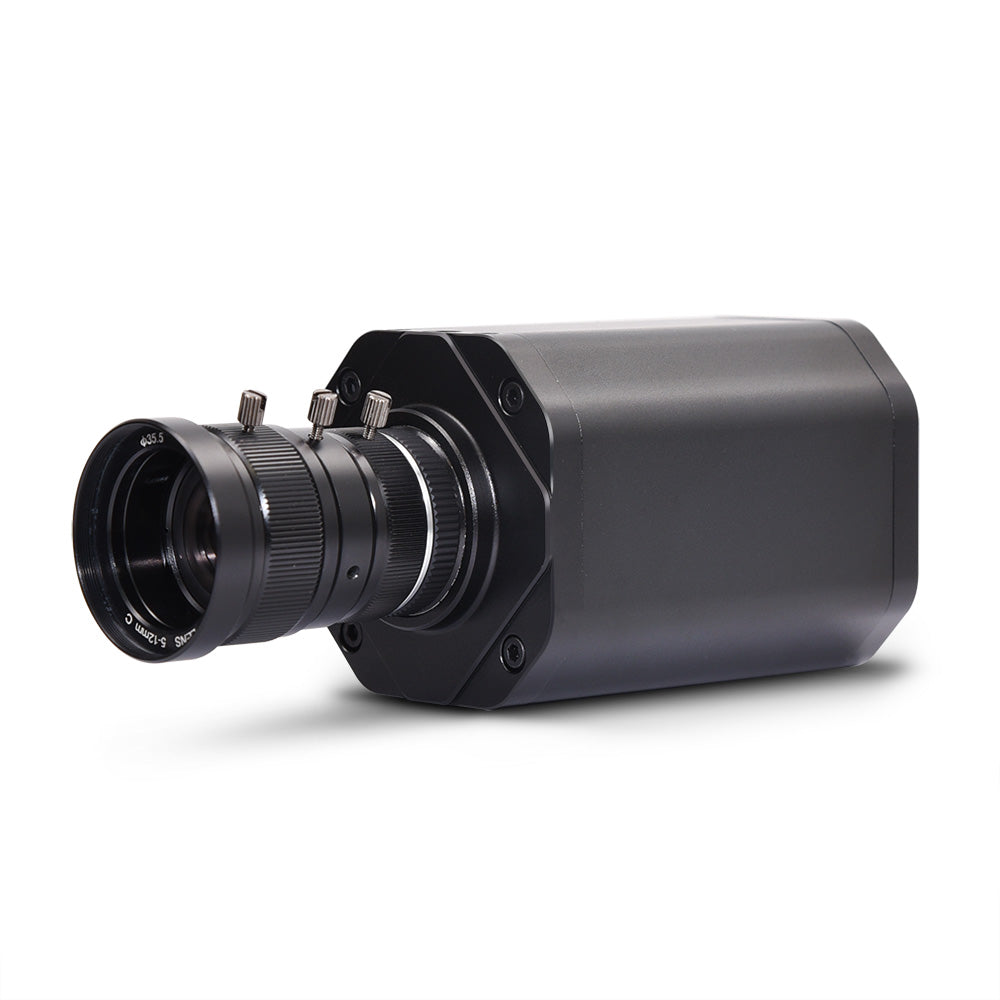

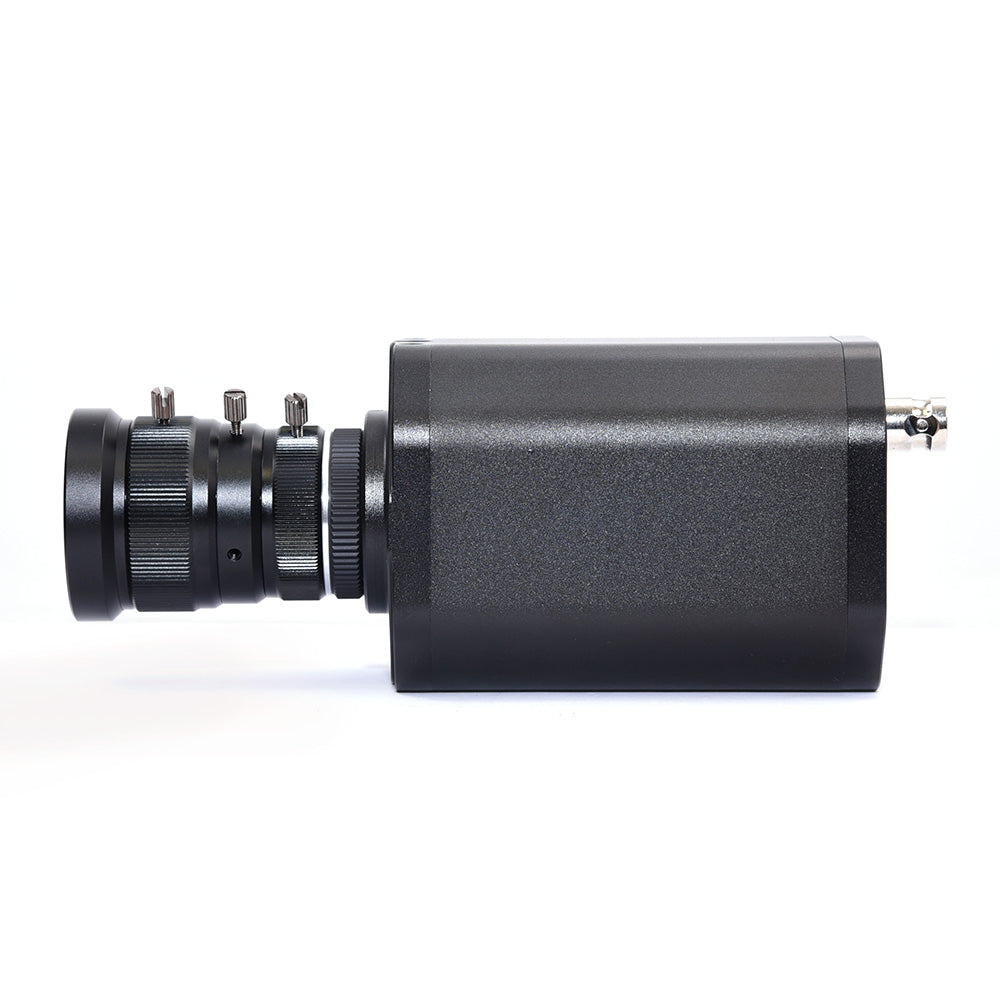

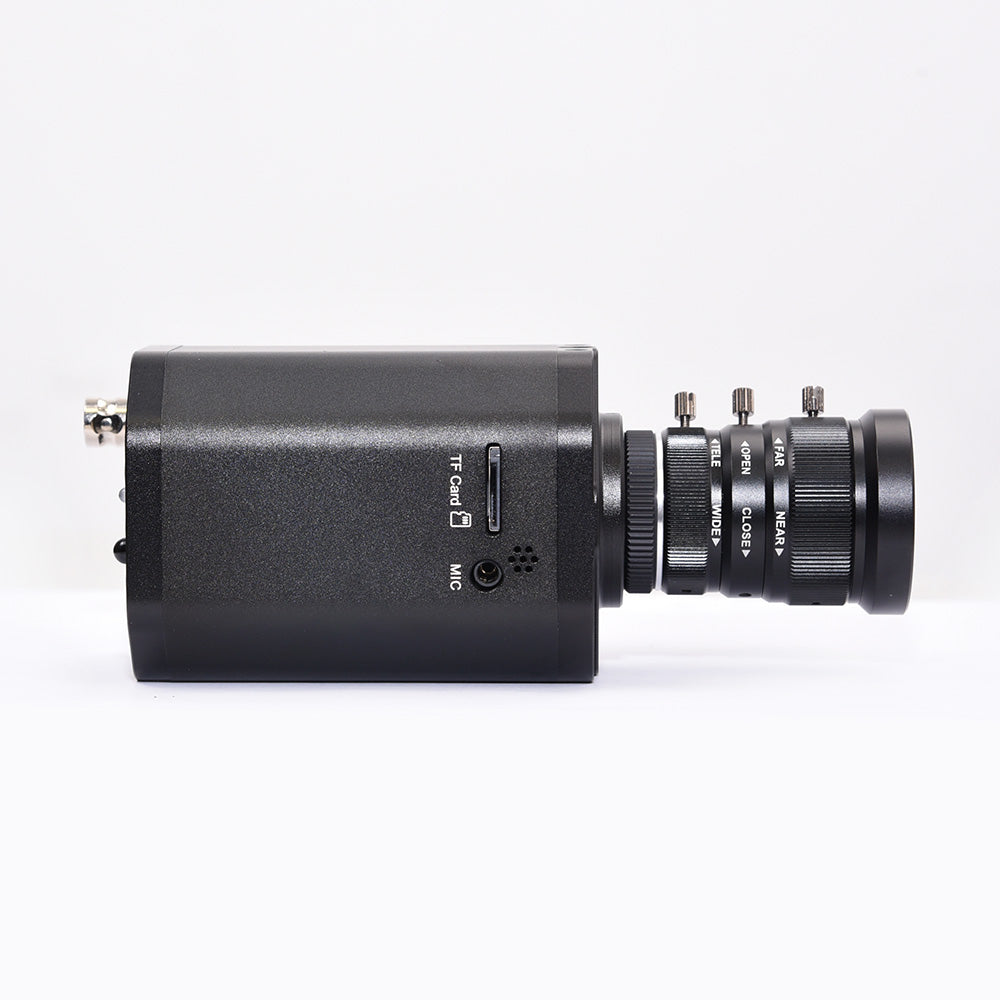

The HSC20 4K Digital Camera adopts an interchangeable lens design and using a CS/C mount lens . A large number of industrial lens groups enable the HSC20 4K Digital Camera to be widely used in industrial scenarios.

Support 3840*2160P/30/25/24fps (HDMI only) ,1080P60/50/30/25/24fps, 1080i60/50, 720P60/50fps output,1080P30 USB output. Connect to a HDMI or SDI monitor capture video show on screen for teaching, or Connect to a HDMI or SDI video capture card for small activity Live Streaming.

Solid aluminum shell material ,1/4 Inch Screw Thread placement easier for multi-angels placement needs .

Playback-Support photos and videos playback thru HDMI or SDI output to Monitor with Audio.

Time Lapse Video recording, Support settings 0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2minutes, 5minutes, 30minutes, 1hour.


Burst for photo Support settings interval time 0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2minutes, 5minutes, 30minutes, 1hour.

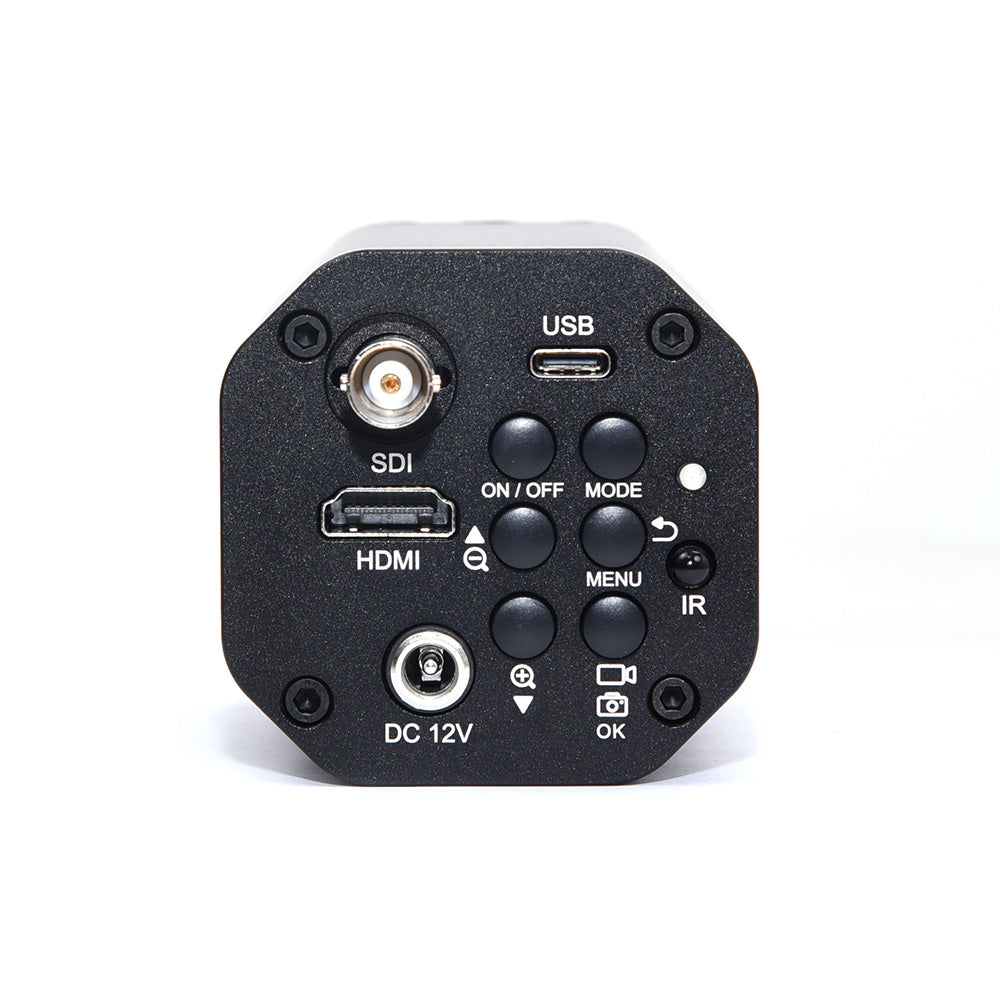

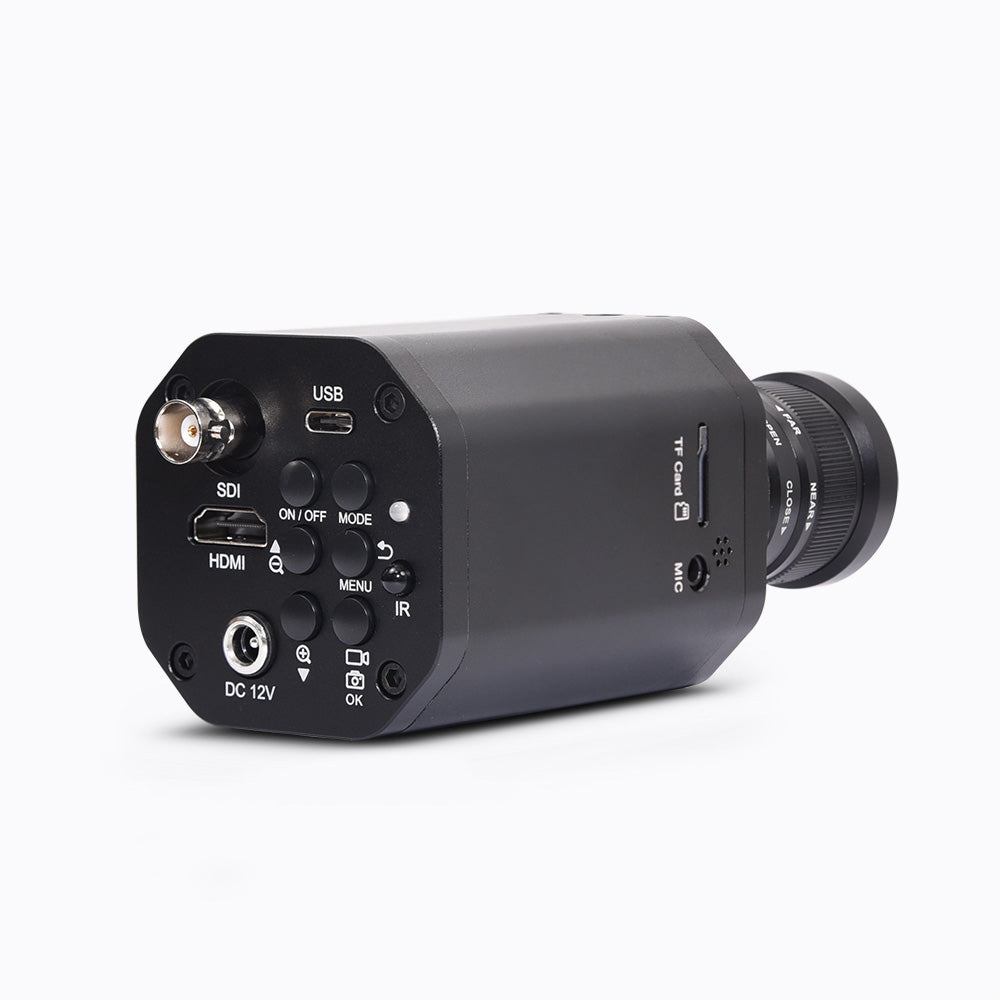

HDMI, SDI, USB double output.



Camera Specification
Model HSC20
Sensor Sony IMX577 Exmor R CMOS 1/2.3”
Resolution 12MP
Pixel Size 1.55µm × 1.55µm
Record video
resolution
3840*2160@30FPS / 2560*1440@30FPS / 1920*1080@60FPS
1920*1080@30FPS / 1280*720@60FPS / 1280*720@30FPS
Video Format MP4
HDMI output 2160P/30/25/24fps, 1080P60/50/30/25/24fps, 1080i60/50fps, 720P60/50fps
Different monitors or HDMI receivers support part of resolutions only.
(For example, A 1080P monitor cannot display 4K resolution)
SDI output 1080P60/50/30/25/24fps, 1080i60/50fps, 720P60/50fps


External microphone Support
USB output 1920*1080@30FPS / 1280X720@30fps / 640X480@30fps
USB standard UVC / UAC
Support system Windows / OS X / Linux
Audio Record video / Video Playback / USB Mode with Audio /
HDMI and SDI Real-time output without Audio
Time Lapse 0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2minutes, 5minutes, 30minutes, 1hour
Burst 0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2minutes, 5minutes, 30minutes, 1hour
Digital Zoom Support ( 1080P or 720P output,4K output not supported)
Remote control Support ( HDMI or SDI Mode ), USB Mode for EV and Digital Zoom function only
Remote Control
Control Distance
About 5 Meters ( The remote control need aim the IR light )
Power On Auto Power On when plug ac adapter,
Press camera “ON / OFF” button power on
Power Off Long press camera “ON / OFF” button power off, Remote control Power off
Lens Mount C/CS
Exposure AUTO / Manual
ISO Auto / Manual (100~1600)
Electronic shutter Auto / Manual (1/10~1/2000S)
EV Support 12 Level manual Settings
White Balance AUTO / Manual
Storage Support 256GB(Max) TF card, Fat32 or Exfat only
Power Mode(HDMI / SDI) DC 12V 1A
Power Mode(usb) USB power
Loop Recording 3 / 5 / 10 mins each document Loop recording and
OFF (15 mins each document at 4K)
Screen Orientation Change Support screen rotation 180 degrees and Mirroring
Housing Metal
Operating temperature -10-75℃
Camera Size
(Without lens)
100*60*60MM
Product Weight
(Without lens)
230g
Package size 194*104*90mm
